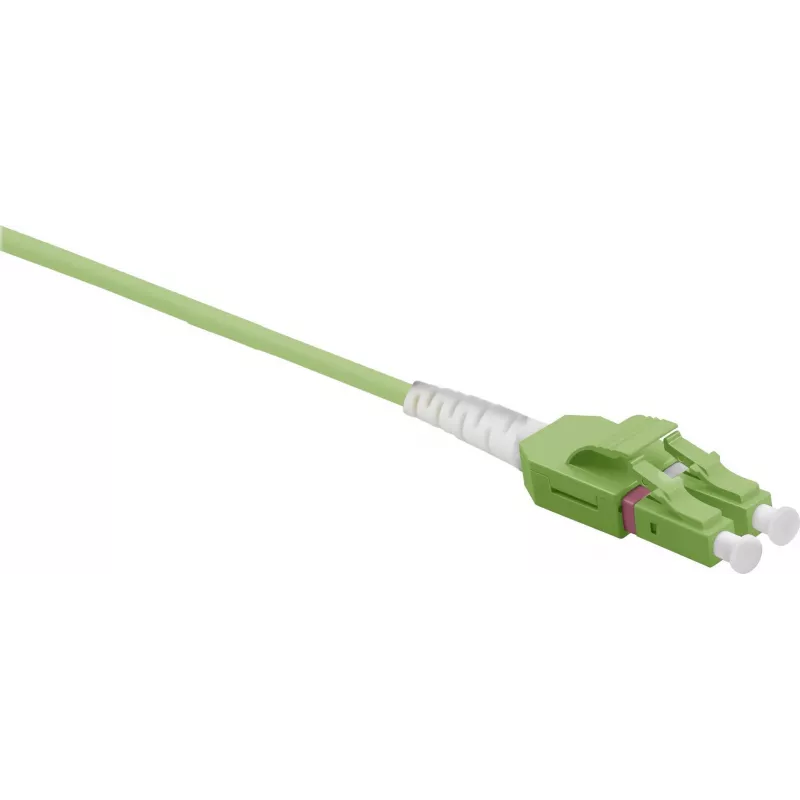

Cabo de patch de fibra ótica Helos Uniboot LC/LC duplex 50/125 µm OM5 15,00 m verde

The Helos LWL Patch Cable Uniboot LC/LC Duplex 50/125µm OM5 15.00m Green is a duplex multimode fiber optic patch cable designed for high-density network environments. It uses OM5 graded fiber with a core/cladding specification of 50/125µm and features LC connectors in a uniboot duplex configuration. The 15.00 meter length and green jacket provide a balance of reach and easy visual identification for structured cabling and data center links.

Advantages

The uniboot LC/LC duplex design combines two fibers in a single compact boot, reducing connector footprint and simplifying rack- and patch-panel management. OM5 multimode fiber supports wideband applications and is suitable for high-bandwidth short-range transmission. The 50/125µm core/cladding geometry is a standard for multimode links and helps ensure compatibility with multimode transceivers and existing cabling infrastructure. The green jacket color aids quick identification of OM5 links in mixed-cable environments.

Suitable for

• Data center patch panels and top-of-rack connections
• High-density network racks and optical distribution frames
• Short-reach multimode links between switches, servers, and storage
• Structured cabling installations that require easy cable identification

Key specifications

• Fiber type: Multimode OM5
• Core/Cladding diameter: 50/125 µm
• Connector type: LC to LC duplex, uniboot
• Length: 15.00 m
• Jacket color: Green

How to use

Route the Helos uniboot LC/LC duplex cable between the required optical ports, ensuring connectors are clean and free of dust before mating. Align each LC connector with the corresponding LC adapter or transceiver port and insert until it clicks into place. Maintain bend radius recommendations for multimode fiber during installation and avoid kinks or excessive tension. For removal, depress the LC latch and gently pull the connector from the adapter.

Recommendations

Inspect and clean LC connectors with appropriate fiber cleaning tools before installation to maintain signal integrity. Use cable management accessories to preserve bend radius and minimize stress on the uniboot assembly. Select OM5-rated transceivers and components for optimal wideband performance where required.
