Cabo de patch de fibra ótica LogiLink Uniboot Push-Pull LC-LC OS2, 2,0 m

High-density fiber patching often means wrestling with tight spaces and fragile latches. This LogiLink Uniboot Push-Pull patch cord changes that: both fibers run through a single 3.0 mm round cable, cutting bulk by up to 50% compared to duplex zip-cords, while a push-pull tab on each LC connector allows one-handed insertion and removal even in fully populated panels.

Highlights

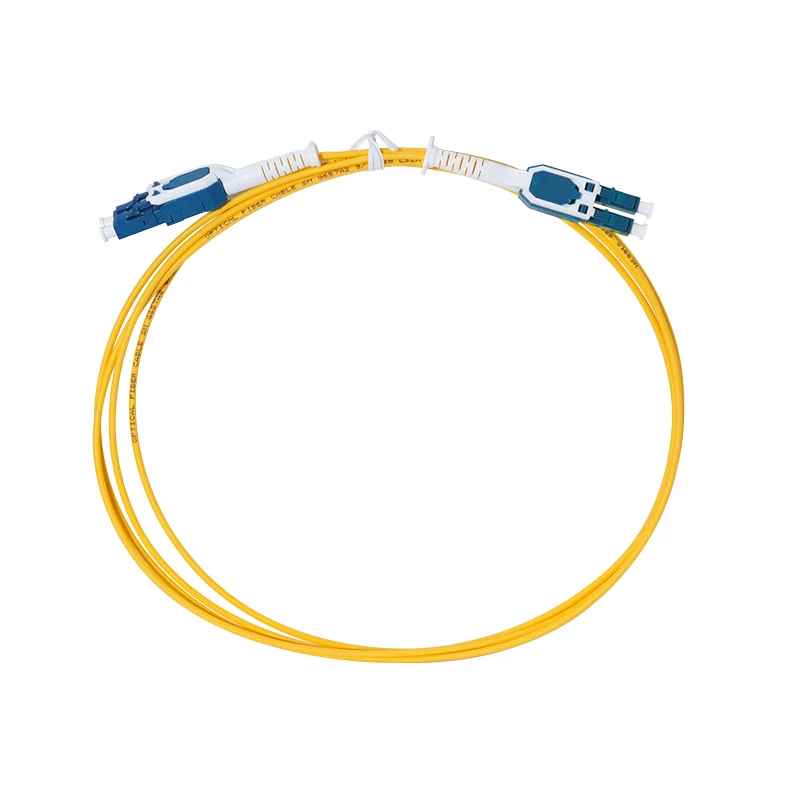

• Uniboot construction: two fibers in one slim cable for reduced volume and easier routing.

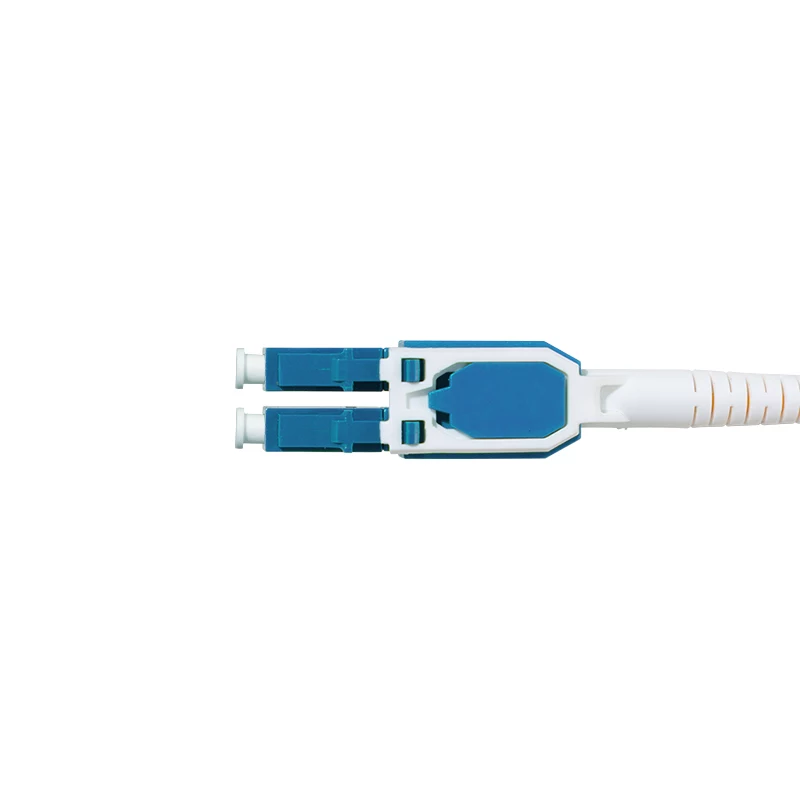

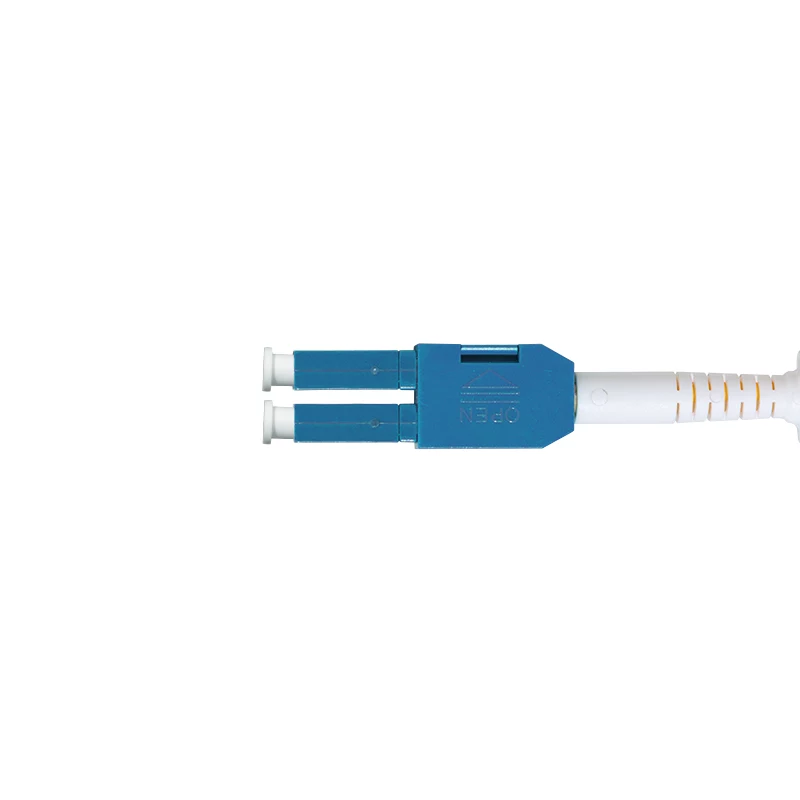

• Push-pull tab on LC connectors for quick access without disturbing adjacent links.
• OS2 single-mode fiber (9/125 µm) with UPC polish for low insertion loss and high return loss.
• LSZH yellow jacket: low smoke, zero halogen, flame-retardant for safety in enclosed spaces.
• Compliant with RoHS and REACH; supports 10G, 40G, and 100G Ethernet up to 10 km.

In daily use

Technicians will appreciate the reversible polarity feature: simply swap the connectors at one end to change from A-B to A-A without re-terminating. The push-pull tab eliminates the need to press the latch directly, reducing finger strain and the risk of snagging neighboring cables. The LSZH jacket is easy to route and label, and the yellow color clearly identifies single-mode fiber.

Full specifications

• Fiber type: OS2 single-mode, 9/125 µm core/cladding

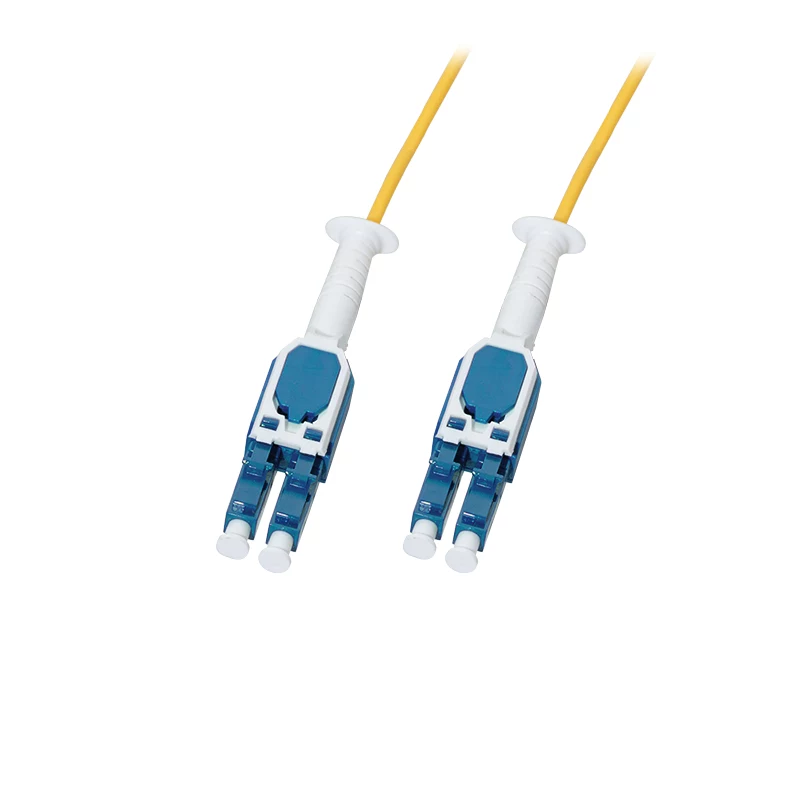

• Connectors: LC duplex (Uniboot) to LC duplex (Uniboot), UPC polish
• Insertion loss: ≤ 0.2 dB typical
• Return loss: ≥ 50 dB typical
• Cable diameter: 3.0 mm
• Attenuation @ 1310 nm: ≤ 0.35 dB/km
• Attenuation @ 1550 nm: ≤ 0.25 dB/km
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Final note

When rack space is at a premium and every cable matters, this uniboot patch cord delivers reliable single-mode performance without the clutter.
