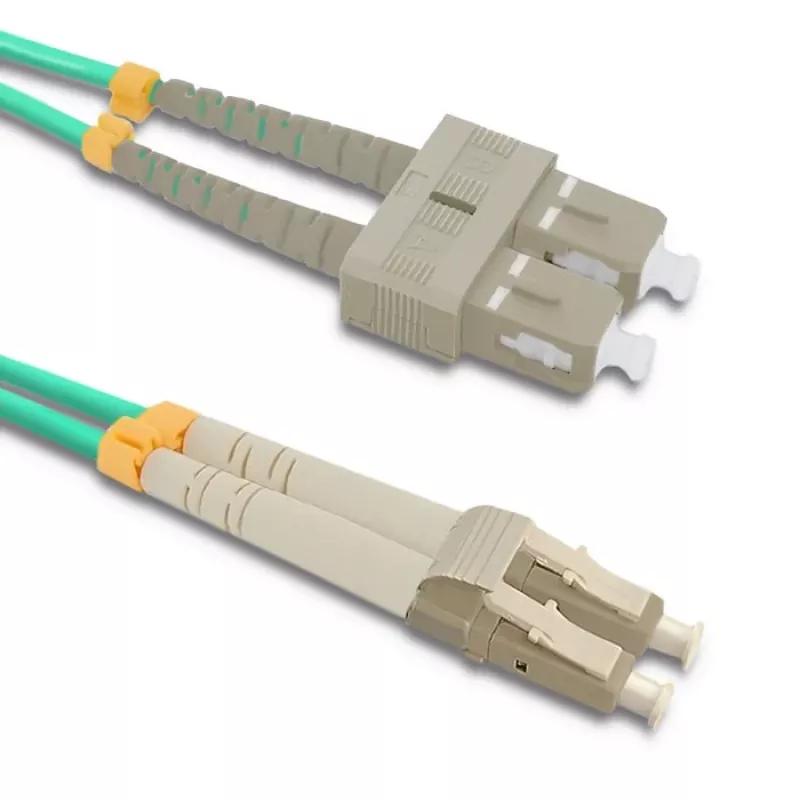

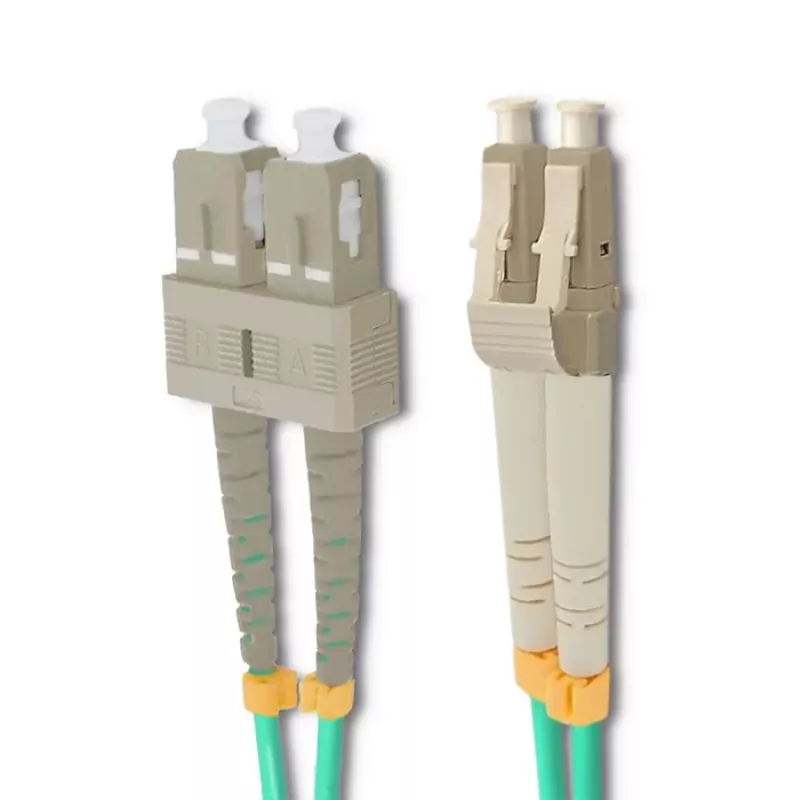

Cabo de patch de fibra ótica Qoltec LC/UPC - SC/UPC multimodo OM4 duplex 5m

The Qoltec Fiber Optic Patch Cord is a high-performance multimode duplex cable designed for reliable data transmission in data centers, LAN, SAN, and telecommunications networks. With LC/UPC to SC/UPC connectors, OM4 fiber class, and a length of 5 meters, it supports high-speed applications up to 100GbE.

Advantages

Low insertion loss and high return loss ensure minimal signal degradation. The LSZH jacket provides safety in enclosed spaces. Aqua color enables easy identification of OM4 fiber.

Suitable for

• Data center interconnects
• Local area networks (LAN)
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Fiber Mode: Multimode
• Fiber Class: OM4
• Core/Cladding Diameter: 50/125 µm
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Structure: Duplex
• Cable Length: 5 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Operating Wavelengths: 850 nm / 1300 nm

Recommendations

For optimal performance, ensure connectors are clean and properly mated. Compatible with 10GbE, 40GbE, and 100GbE standards.
