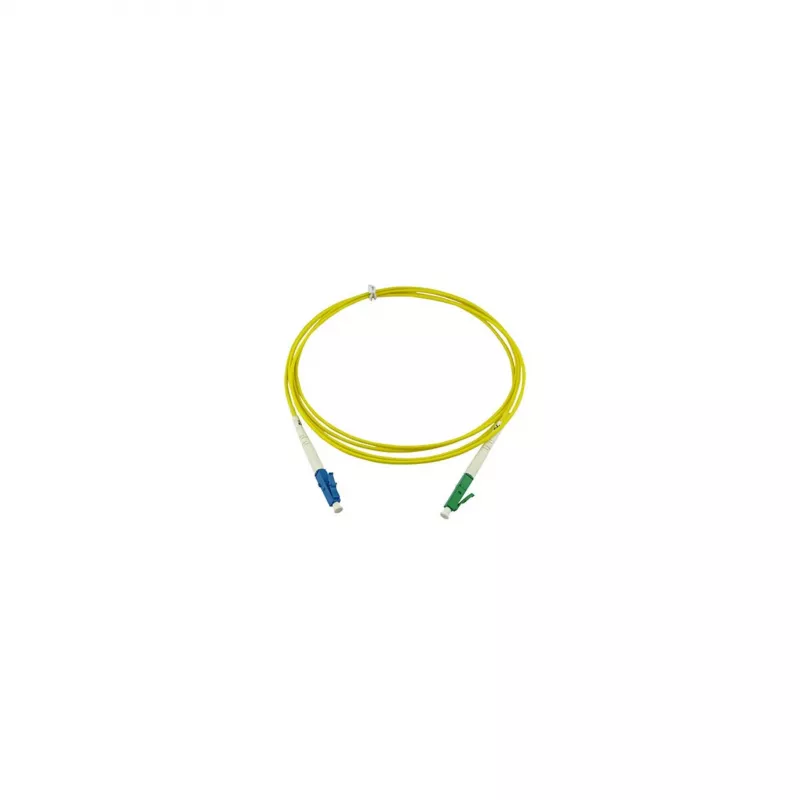

Cabo de patch de fibra ótica simplex BlueOptics LC-UPC/LC-APC monomodo OS2 15m

The BlueOptics SFP2121BU15MS is a high-quality simplex fibre optic patch cable designed for reliable single-mode connections. Featuring LC-UPC to LC-APC connectors, this 15-metre cable ensures low insertion loss and high return loss, making it ideal for demanding network environments.

Advantages

This cable offers exceptional performance with a maximum insertion loss of 0.3 dB and return loss of 50 dB (UPC) / 60 dB (APC). The LSZH jacket provides safety in confined spaces, and the yellow colour ensures easy identification. It complies with IEC 61754-20, TIA/EIA-604-10, RoHS, and CE standards.

Suitable for

• Data Centers
• Telecommunications
• FTTx networks
• Local Area Networks (LAN)

Key specifications

• Fibre Type: Simplex, Single Mode OS2
• Connectors: LC-UPC to LC-APC
• Core/Cladding: 9/125 µm
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Yellow
• Insertion Loss (Max): 0.3 dB
• Return Loss (UPC Min): 50 dB
• Return Loss (APC Min): 60 dB
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for both indoor and outdoor use in controlled environments.
