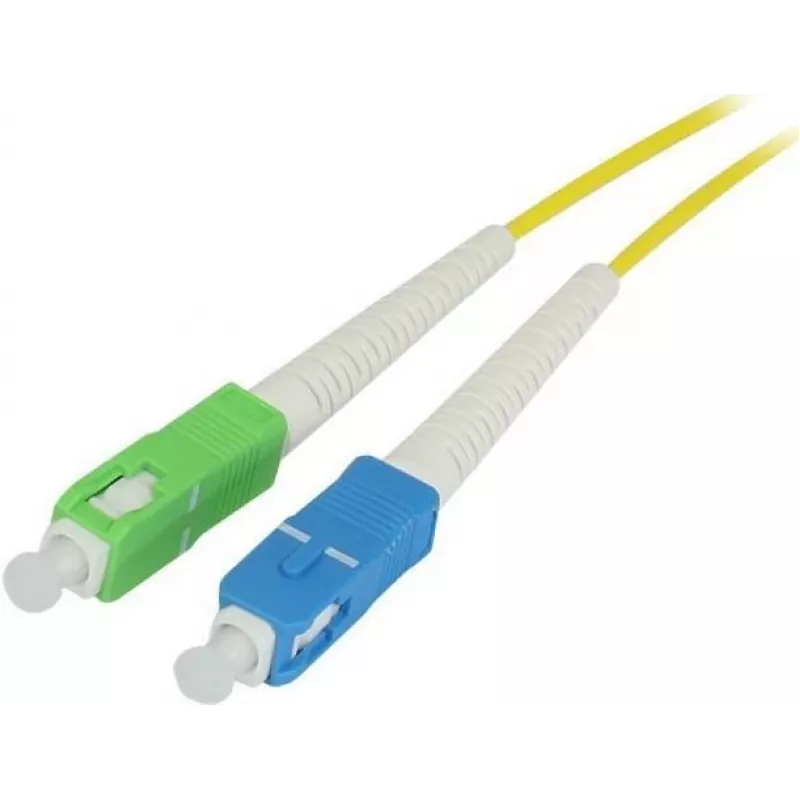

Cabo de patch de fibra ótica SYNERGY21 7,5m SC/SC APC OS2 monomodo 9/125µm G.657.A2 resistente a dobras 2mm flexível

The SYNERGY21 Fiber Optic Patch Cable is a high-quality single-mode (monomode) patch cord designed for reliable, low-loss fiber optic connections in data centers, telecommunications, and FTTH applications. With a length of 7.5 meters and SC/APC connectors on both ends, this cable ensures excellent signal integrity and minimal back reflection. The bend-insensitive G.657.A2 fiber and flexible 2mm jacket make it ideal for installations in tight spaces or where frequent handling is required.

Advantages

This patch cable offers superior performance with its APC (Angled Physical Contact) polishing, which reduces return loss and improves signal quality. The G.657.A2 fiber standard allows for tighter bends without compromising performance, making installation easier and more flexible. The 2mm outer diameter and flexible jacket provide durability and ease of routing in patch panels and cable management systems.

Suitable for

• Data center cabling infrastructure
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local area networks (LAN) requiring single-mode fiber
• Test and measurement equipment connections

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-Mode (OS2)
• Core/Cladding Diameter: 9/125 µm
• ITU-T Standard: G.657.A2 (Bend-Insensitive)
• Connector Type: SC/APC (both ends)
• Ferrule Polishing: APC (Angled Physical Contact)
• Cable Length: 7.5 m
• Number of Fibers: 1 (Simplex)
• Outer Diameter: 2 mm
• Jacket Material: Flexible (PVC/LSZH typical)

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid exceeding minimum bend radius. This cable is compatible with all standard SC/APC interfaces and is ideal for high-speed data transmission up to 10 Gbps and beyond.
