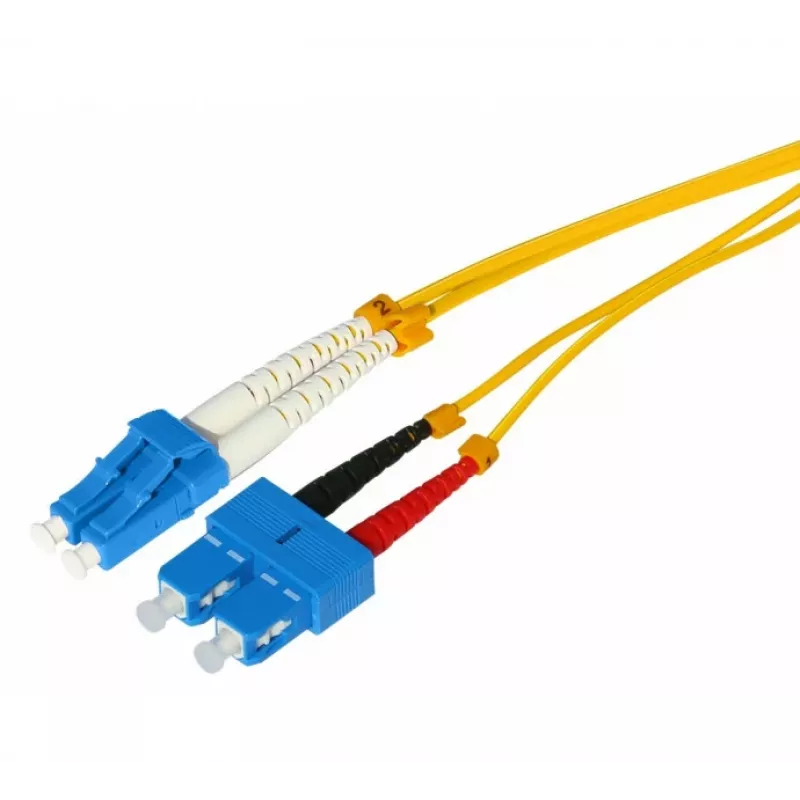

Cabo de patch de fibra ótica Tecline HD monomodo OS2, LC duplex para SC duplex, 9/125 µm, amarelo, 7,5 m (799LS07)

This Tecline HD fiber optic patch cable stands out with its high-density design and premium OS2 singlemode fiber, delivering reliable performance for demanding network environments. The 9/125 µm core/cladding diameter ensures low attenuation and high bandwidth, making it ideal for long-distance data transmission.

Highlights

• Singlemode OS2 fiber with 9 µm core and 125 µm cladding
• LC Duplex to SC Duplex connectors with UPC polish
• Yellow jacket for easy identification of singlemode cables
• Supports wavelengths 1310 nm and 1550 nm
• Typical insertion loss < 0.3 dB per connector pair

In daily use

Whether connecting switches in a data center or extending a backbone link, this cable provides a stable, low-loss connection. The duplex configuration supports bidirectional communication, and the HD designation indicates a compact, high-density design that saves space in crowded patch panels.

Full specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Singlemode
• Fiber class: OS2
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable length: 7.5 m
• Jacket colour: Yellow
• Number of fibers: 2
• Connector polish: UPC
• Wavelength support: 1310 nm, 1550 nm
• Insertion loss: < 0.3 dB per connector pair
• Return loss: > 50 dB
• Attenuation at 1310 nm: < 0.35 dB/km
• Attenuation at 1550 nm: < 0.25 dB/km
• Application: Data centers, telecommunications, LAN, SAN

Final note

Built for reliability and performance, this Tecline patch cable is a solid choice for any singlemode fiber installation.
