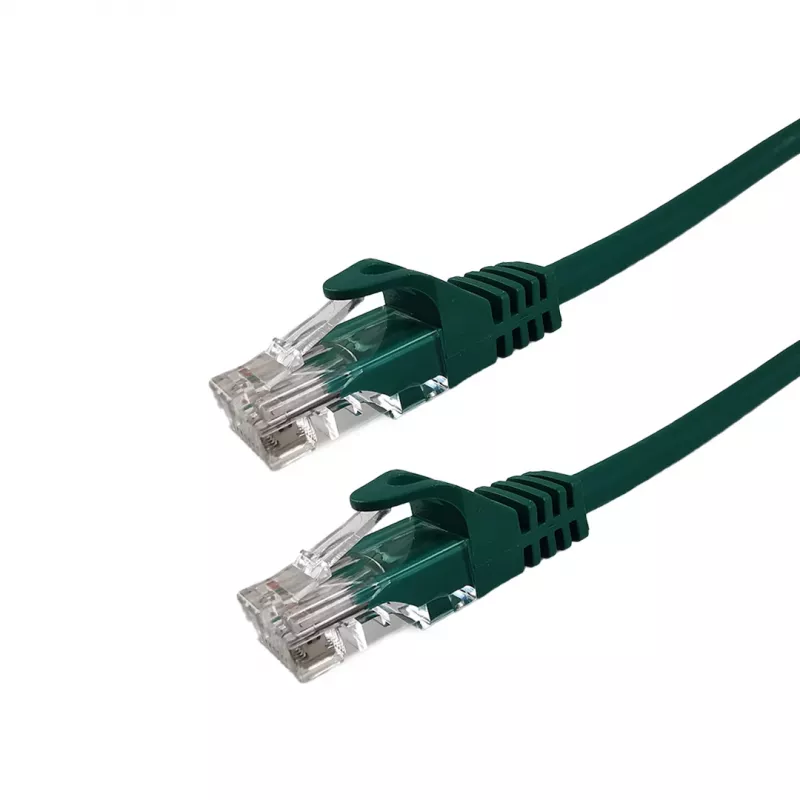

Cabo de patch Grafenthal CAT6A S/FTP CU LSZH 20,00m verde

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 20.00m Green is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With S/FTP shielding and pure copper conductors, it ensures minimal interference and maximum data integrity. The LSZH jacket makes it safe for use in enclosed spaces, reducing toxic smoke in case of fire.

Advantages

This cable offers superior shielding against electromagnetic interference, ensuring stable data transmission even in high-density environments. The 26 AWG stranded construction provides flexibility for easy routing, while the gold-plated RJ45 connectors guarantee corrosion-free connectivity. The 20-meter length is ideal for longer runs without signal loss.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where 10GBASE-T performance is needed
• Installations in public or enclosed areas where LSZH safety is mandatory
• Backward compatible with Cat6, Cat5e, and Cat5 networks

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6A (Category 6a)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 20.00 m
• Cable Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• AWG: 26 AWG
• Cable Construction: Stranded
• Outer Diameter: 7.0 mm (approx.)
• Wiring Standard: TIA/EIA 568B
• Fire Safety Standard: IEC 60332-1 (LSZH compliant)
• Application: Network, Ethernet, LAN
• Compatibility: Backward compatible with Cat6, Cat5e, Cat5
• Operating Temperature: -20°C to 60°C
• Certifications: RoHS, REACH

Recommendations

For optimal performance, use with CAT6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid kinking. This cable is ideal for structured cabling systems requiring high bandwidth and safety compliance.
