Cabo de patch Grafenthal CAT6A S/FTP CU LSZH 7,50m vermelho

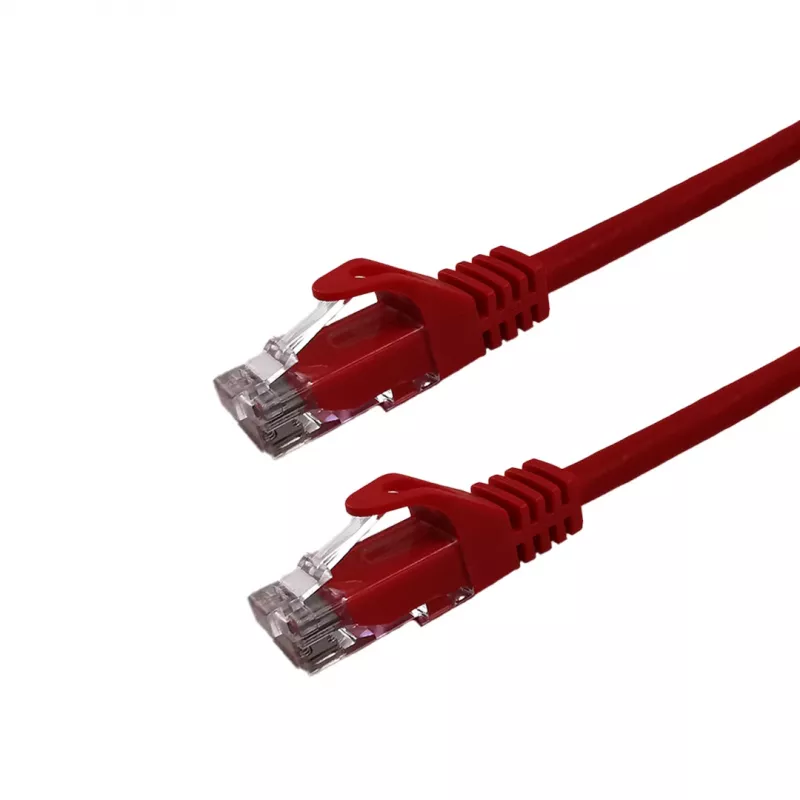

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 7.50m Red is a high-performance networking cable designed for reliable 10 Gigabit Ethernet connections in data centers, server rooms, and office networks. Constructed with 100% bare copper conductors and S/FTP shielding, it minimizes crosstalk and electromagnetic interference, ensuring stable data transmission. The LSZH jacket provides enhanced safety in enclosed spaces by reducing toxic smoke and halogen emissions in case of fire.

Advantages

This patch cable offers superior signal integrity and durability. The 50µ gold-plated RJ45 connectors resist corrosion and ensure optimal conductivity. Stranded copper conductors provide flexibility for easy routing, while the 26 AWG gauge supports high-speed data transfer up to 500 MHz. The cable is backward compatible with Cat5e and Cat6 networks, making it a versatile choice for upgrading existing infrastructure.

Suitable for

• Data centers and server rooms requiring high-density cabling
• 10GBASE-T networks in enterprise environments
• Home networks demanding high-speed and reliable connections
• Applications where low smoke and halogen-free materials are mandated

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A
• Shielding: S/FTP
• Conductor Material: 100% Copper
• Jacket Material: LSZH
• Length: 7.5 meters
• Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: 50µ Gold-plated
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA 568B
• Operating Temperature: -20°C to 60°C
• Certifications: RoHS, CE

Recommendations

For optimal performance, ensure that all components in the network chain (switches, routers, network cards) support CAT6A standards. This cable is ideal for short to medium runs where high bandwidth and low latency are critical. Pair with compatible CAT6A patch panels and jacks for a complete structured cabling solution.
