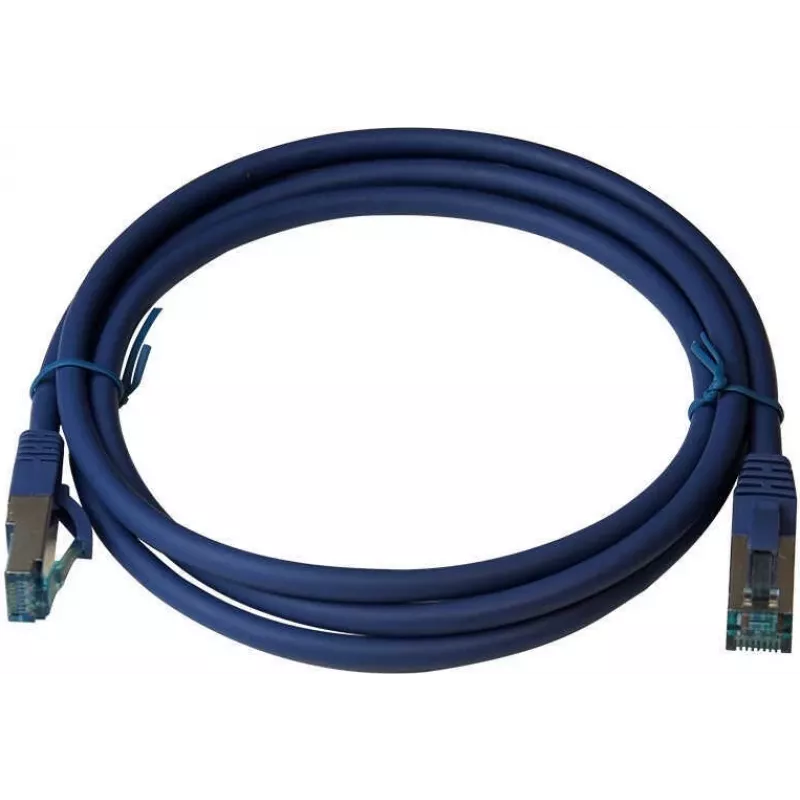

Cabo de patch Premium Full Copper IT-BUDGET - Cat.6A - 500 MHz - sem halogéneos - PoE+ - AWG 26/7 - azul - 20 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A Ethernet cable designed for demanding network environments. With a bandwidth of 500 MHz and support for 10 Gigabit Ethernet (10GBASE-T), this cable ensures reliable, high-speed data transmission. The full copper stranded conductors (AWG 26/7) provide excellent signal integrity and flexibility, while the LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in enclosed spaces. Compliant with PoE+ (IEEE 802.3at), it can power devices such as IP cameras and wireless access points. Ideal for data centers, server rooms, and professional LAN installations.

Advantages

Full copper conductors ensure superior conductivity and durability compared to CCA (Copper-Clad Aluminum) cables. The LSZH jacket reduces toxic smoke and fumes in case of fire, enhancing safety. PoE+ support allows for flexible device placement without separate power cables. Stranded construction provides flexibility for frequent movement and tight bends.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Professional LAN installations for 10 Gigabit Ethernet networks
• Power over Ethernet applications (PoE+) for IP cameras, VoIP phones, and access points
• Environments where halogen-free cabling is required for safety

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: Cat.6A (Class EA)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: Full Copper
• Conductor Gauge: 26 AWG
• Conductor Construction: Stranded (7-wire)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Cable Length: 20 m
• Cable Color: Blue
• Connector Type: RJ45 (8P8C) on both ends
• Wiring Standard: TIA/EIA 568B
• Application: Local Area Network (LAN), Ethernet
• Certifications: RoHS Compliant

Recommendations

For optimal performance, use with Cat.6A compatible switches and network devices. Ensure proper cable management to avoid kinks and sharp bends. This cable is ideal for structured cabling systems requiring high bandwidth and PoE+ capability.
