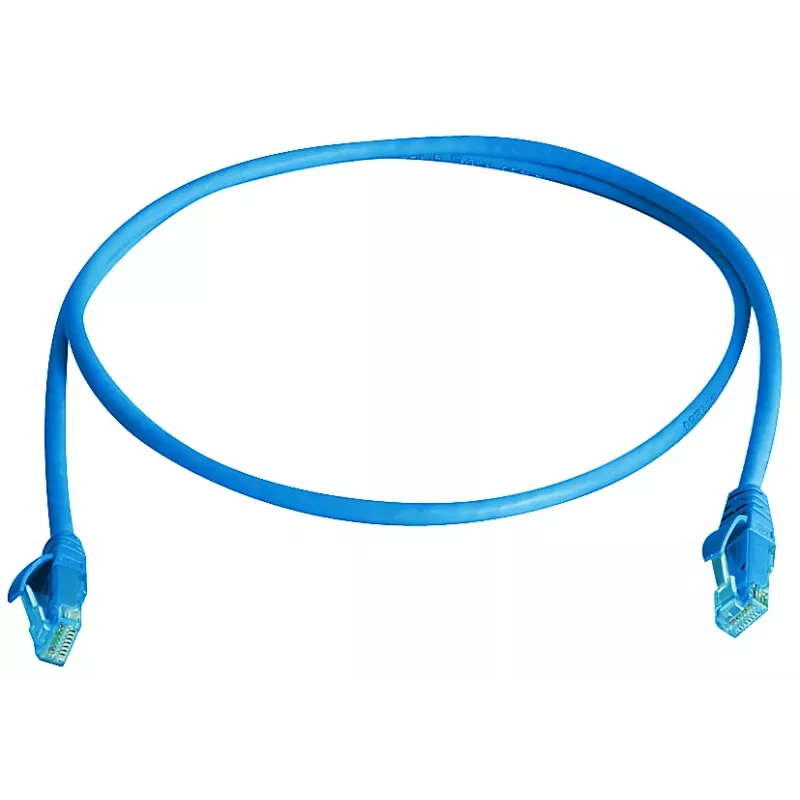

Cabo de patch TELEGÄRTNER 100008077 Cat.6 U/UTP RJ45, 1 m, azul, LSZH, ignífugo, com proteção anti-dobras

Network installations in offices and data centres demand reliable, flame-retardant cabling that maintains signal integrity. The TELEGÄRTNER 100008077 is a 1-metre Cat.6 U/UTP patch cable with RJ45 connectors, engineered for Gigabit Ethernet performance up to 250 MHz. Its blue LSZH jacket and moulded kink protection boot make it a safe, durable choice for structured cabling in public and commercial spaces.

Who is it for

IT technicians, network administrators, and system integrators who need a dependable, standards-compliant patch lead for connecting patch panels, switches, servers, and workstations. It is particularly suited to environments where low smoke and zero halogen emissions are required by building codes.

Main features

• Cat.6 performance with 250 MHz bandwidth, supporting up to 1 Gigabit Ethernet.
• Unshielded twisted pair (U/UTP) construction with stranded copper conductors, AWG 26/7, for flexibility and easy routing.
• Blue LSZH (Low Smoke Zero Halogen) jacket, flame retardant per IEC 60332-1-2.
• Moulded kink protection boot on each RJ45 connector to prevent cable strain at the termination point.
• Wired to TIA/EIA-568B standard, ensuring compatibility with all Ethernet equipment.
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2.

Specifications

• Cable length: 1.0 m
• Cable type: U/UTP (Unshielded Twisted Pair)
• Category: Cat.6
• Connector type: RJ45 (8P8C) on both ends
• Conductor material: Copper, stranded
• Conductor gauge: AWG 26/7
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Flame retardancy: Yes, IEC 60332-1-2 compliant
• Bend protection: Moulded boot
• Wiring standard: TIA/EIA-568B
• Bandwidth: 250 MHz
• Data transfer rate: Up to 1 Gbps (1000 Mbps)
• Impedance: 100 Ohm
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best performance, avoid bending the cable sharply near the connectors; the moulded boot provides strain relief but cannot prevent damage from extreme angles. When deploying in high-density racks, use cable management to maintain the minimum bend radius and preserve signal quality.
