Cabo de patch Uniboot LC/UPC para LC/UPC monomodo OS2 duplex EXERTIS CONNECT, 2 m, amarelo, LSZH 392932

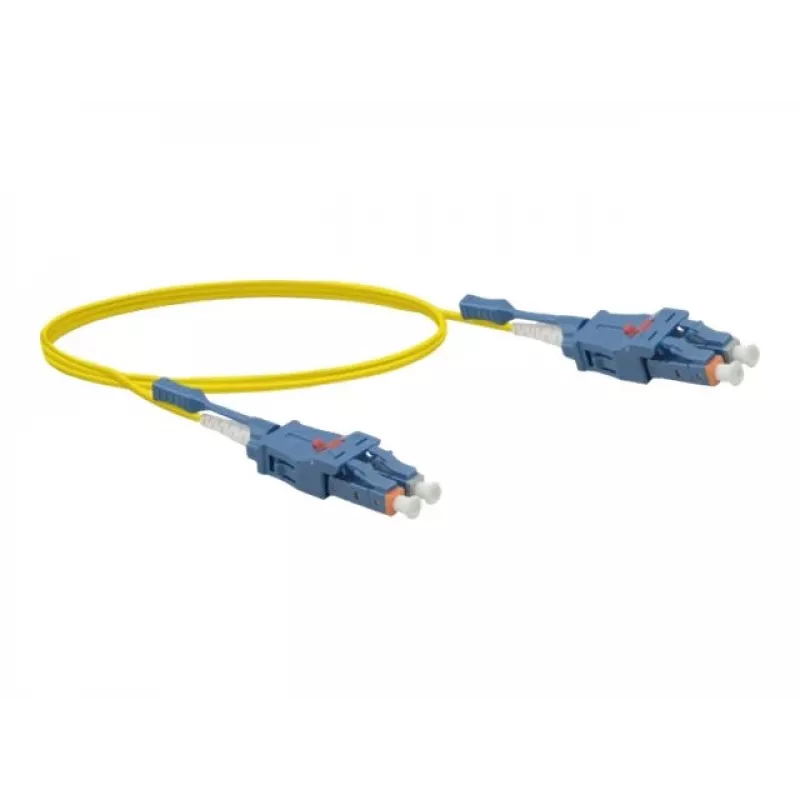

This EXERTIS CONNECT patch cable stands out with its uniboot design, combining both fibers into a single 2mm jacket for cleaner, higher-density installations. The LC/UPC connectors on both ends ensure precise alignment for singlemode transmission, while the OS2 fiber supports long-distance, high-bandwidth applications. The yellow LSZH jacket is halogen-free, making it suitable for environments where smoke and toxic emissions must be minimized.

Highlights

• Uniboot construction reduces cable bulk and simplifies polarity management.
• Singlemode OS2 fiber with 9/125µm core/cladding for low attenuation over long distances.
• LC/UPC connectors with low insertion loss (≤0.3 dB) and high return loss (≥50 dB).
• LSZH (Low Smoke Zero Halogen) yellow jacket for safety in enclosed spaces.
• 2.0m length ideal for patching between panels and equipment in data centers.

In daily use

This duplex cable is perfect for high-density fiber patching in data centers, telecommunication rooms, and enterprise networks. The uniboot design allows for easy handling and reduces cable clutter, while the UPC polish on the connectors ensures reliable performance for modern high-speed networks. The 2mm outer diameter fits standard patch panels and cable managers without strain.

Full specifications

• Cable length: 2.0 m
• Cable diameter: 2 mm
• Fiber mode: Singlemode
• Fiber type: Duplex
• Fiber class: OS2
• Core/cladding diameter: 9/125 µm
• Connector 1: LC/UPC Male
• Connector 2: LC/UPC Male
• Connector feature: Uniboot
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to 70°C

Final note

Built for reliability and density, this cable meets the demands of modern fiber infrastructure with a focus on safety and performance.
