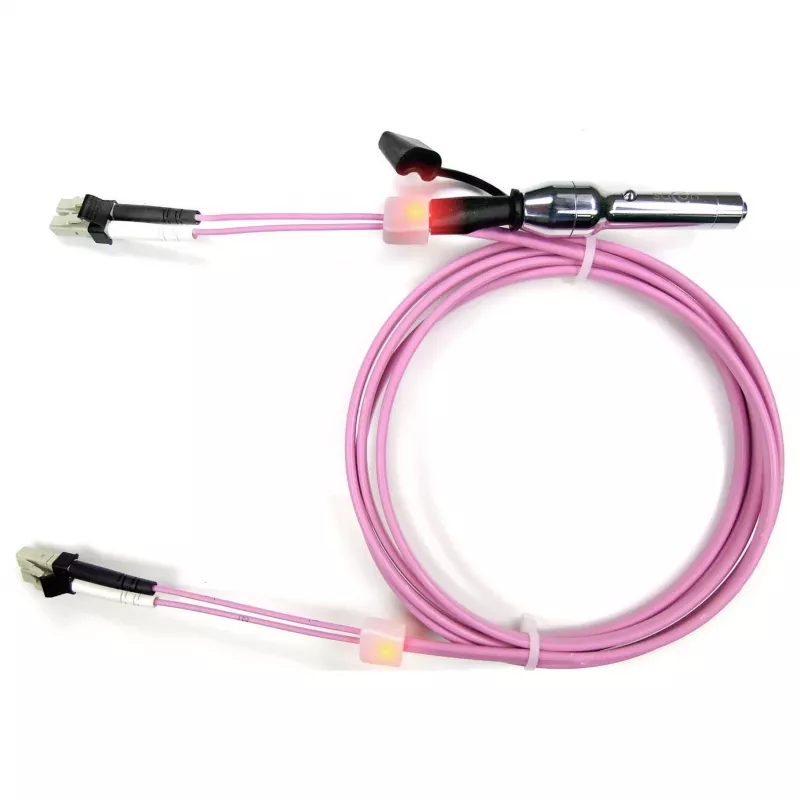

Cabo de rede de fibra ótica EasyLan OM4 10 m LC Duplex para SC Duplex LSZH violeta

The EASYLAN LSD42100100 is a high-performance OM4 multimode fiber optic patch cable designed for reliable, high-speed data transmission in enterprise networks and data centers. With a length of 10 meters and LC to SC duplex connectors, this cable supports 10 Gbps and beyond, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

OM4 fiber provides enhanced bandwidth over OM3, supporting longer distances at 10 Gbps and future-proofing for 40/100 Gbps applications. The LSZH jacket ensures safety in enclosed spaces by emitting low smoke and zero halogen in case of fire. Durable construction with a 3.0 mm cable diameter and tight bend radii allows for flexible installation in patch panels and cable trays.

Suitable for

• Data center interconnects
• Enterprise network patching
• Storage area networks (SAN)
• High-speed backbone links
• Telecommunications rooms

Key specifications

• Fiber Type: Multimode OM4 (50/125 µm)
• Connectors: LC Duplex (Male) to SC Duplex (Male)
• Length: 10 m
• Jacket: LSZH (Low Smoke Zero Halogen), Violet
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Polarity: A-B (Crossed)
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, pair with OM4-rated transceivers and ensure clean connections. Avoid sharp bends below the minimum bend radius to maintain signal quality.
