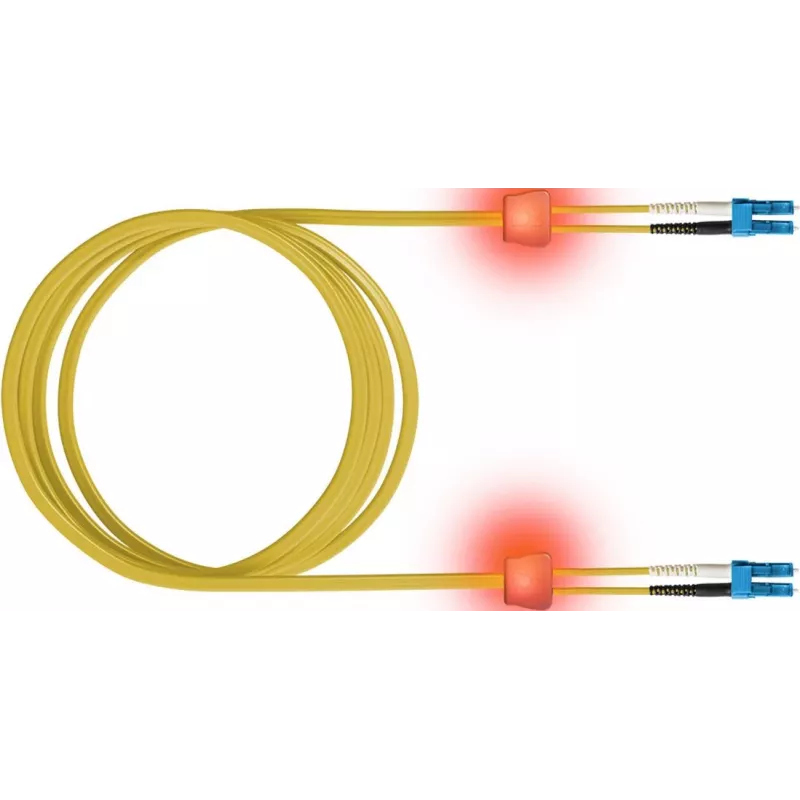

Cabo de rede de fibra ótica EASYLAN ZVK LSD02200075 LED Premium Duplex LC/LC 9/125 OS2 7,5 m amarelo

The EASYLAN ZVK LSD02200075 is a premium fiber optic LED patch cable designed for high-performance single-mode applications. With duplex LC connectors and OS2 grade fiber, this cable ensures reliable data transmission over long distances. The 7.5-meter length offers flexibility in network setups, while the yellow LSZH jacket provides safety and easy identification.

Advantages

This patch cable delivers low insertion loss and high return loss, ensuring signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. The duplex design supports bidirectional communication, and the cross-over polarity ensures correct alignment.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• FTTx and telecommunications infrastructure
• Any single-mode fiber optic network up to 10 Gbps and beyond

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-Mode OS2 (ITU-T G.652.D)
• Core/Cladding: 9/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 7.5 m
• Jacket Color: Yellow
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 50 dB (typical)
• Polarity: A-B, B-A (Cross-over)
• Minimum Bend Radius: 30 mm (dynamic)
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-speed data links. Pair with compatible SFP modules for best results.
