Cabo de rede DIGITUS CAT6 U-UTP fino 0,3 m, amarelo

Future-proof standard and reliable CAT 6 performance for your network.

- Advantage: Slim cable diameter of 2.7 mm with high flexibility for easy installation in confined spaces
- Features: Transmission speed up to 1 Gbit/s and frequency 250 MHz
- Application area: Ideal for office networks, home use, patch panels and environments with high cabling density
- PoE-capable: Supports PoE and PoE+ applications with pure copper conductors

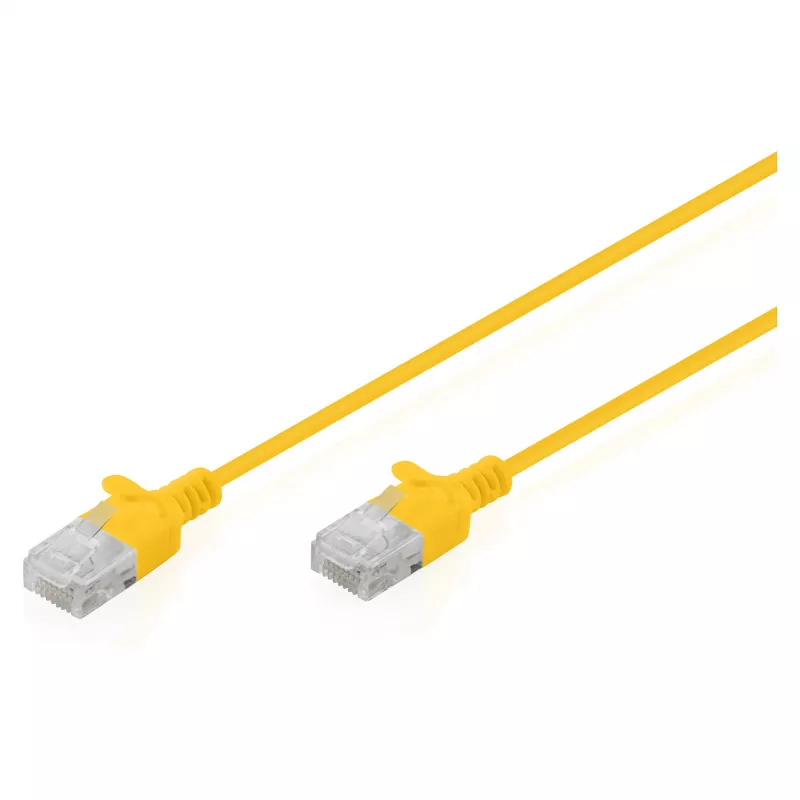

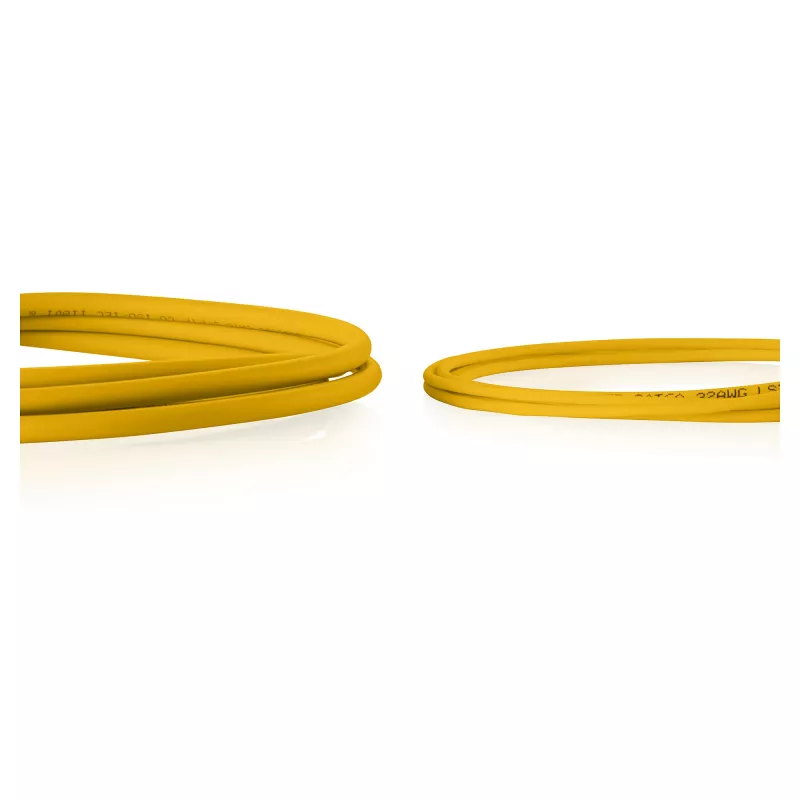

DIGITUS® CAT 6 U-UTP Slim patch cables with a transmission frequency of up to 250 MHz are equipped with a reduced outer diameter of only 2.7 mm and a flexible jacket, which enables space-saving and versatile use in any network. The cables have stranded AWG 32/7 copper conductors and an unshielded twisted pair structure (U-UTP), which ensures flexibility and durability. They are manufactured in accordance with ISO/IEC 11801 and DIN EN 50173 CAT 6 standards, ensuring reliable compliance with international specifications. Each cable is equipped with a molded anti-kink sleeve with strain relief and a locking lever protection that prevents cable damage and locking breaks. These slim patch cables are supplied in DIGITUS® hangtag packaging and are the ideal solution for structured cabling in offices, homes or high-density environments.

Key Features

• Outer casing: LSZH (Low Smoke Zero Halogen)
• Total diameter: 2.7 mm ± 0.15 mm
• Stranded wire: AWG 32/7 bare copper, 0.08 ± 0.005 mm
• Insulation: HD-PE (high-density polyethylene)
• Bending radius: 15x outer diameter

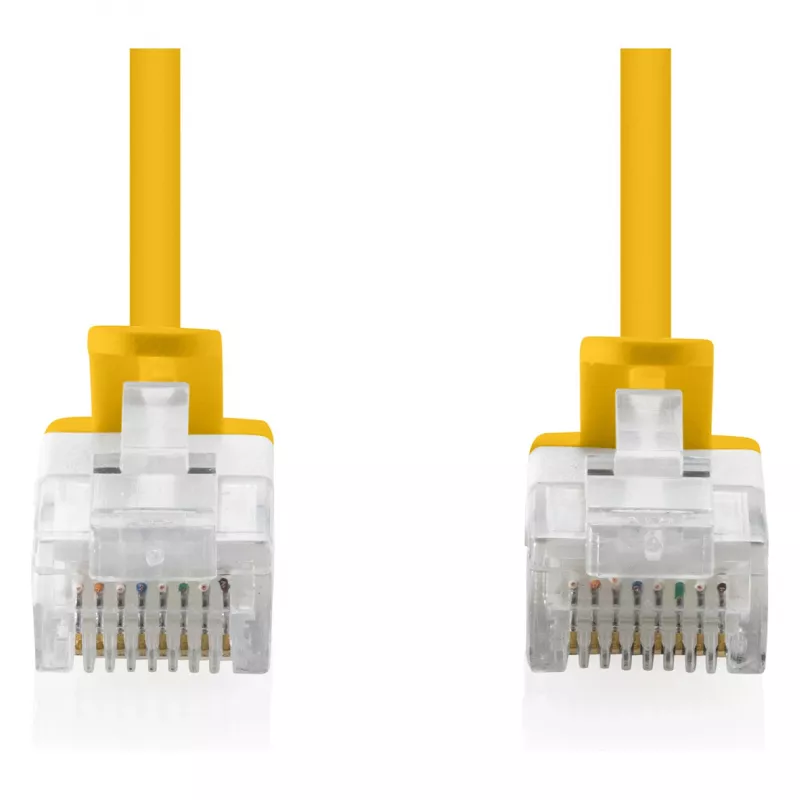

• Plug: RJ45 plug
• Color code: Orange x white, green x white, blue x white, brown x white
• Cabling standard: EIA/TIA 568B
• PIN assignment: 1:1
• Contact resistance: maximum 376.96 Ω/km at 20 °C
• Imbalance of the resistance: maximum 3 %
• Operating temperature: -20 °C to +60 °C
• Flame retardancy: IEC 60332-1
• Smoke emission: IEC 61034
• Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
• Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
• Dielectric strength: 500 V alternating current for 1 minute without breakdown (TIA/EIA-364-21)
• Service life: 750 mating cycles
• Packaging: DIGITUS hangtag
