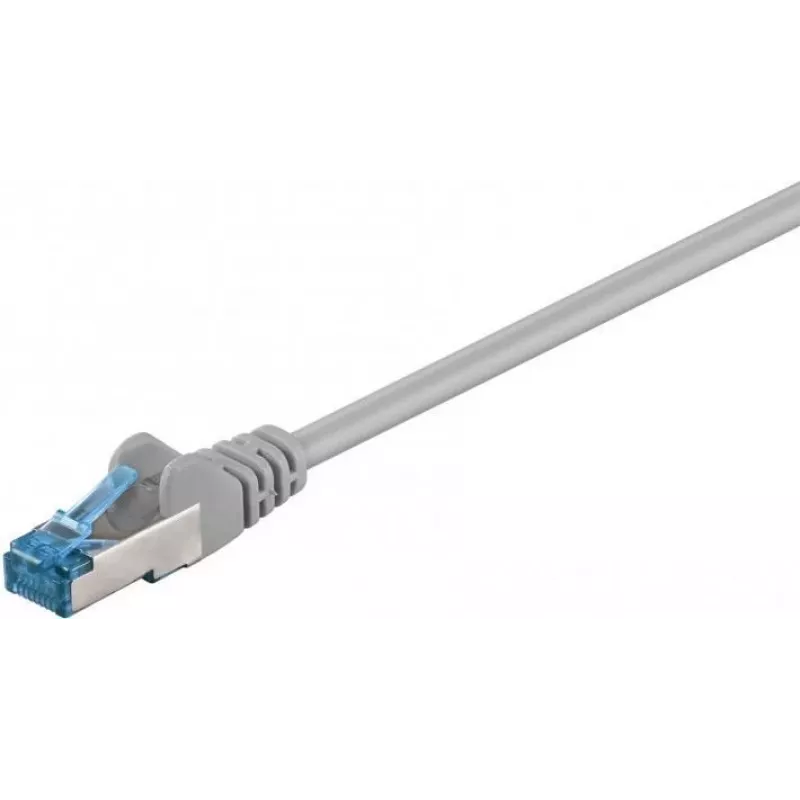

Cabo de rede DSIT CAT 6a LSOH - S/FTP - 20 metros - cinzento (DC-6A1-200)

High-performance CAT 6a patch cable engineered for 10 Gigabit Ethernet. The S/FTP shielding with individually foiled pairs and overall braid ensures exceptional immunity to alien crosstalk, making it ideal for high-density data center and enterprise network environments. At 20 meters, it provides ample reach for structured cabling between patch panels, switches, and end devices.

Advantages

Supports 10GBASE-T up to 500 MHz bandwidth, delivering reliable high-speed data transfer. The LSOH jacket emits low smoke and zero halogen when exposed to fire, enhancing safety in enclosed spaces. Gold-plated RJ45 connectors resist corrosion and maintain signal integrity over repeated insertions. Backward compatible with Cat5e and Cat6 networks, ensuring seamless integration into existing infrastructure.

Suitable for

• Data centers requiring high-density 10G connections
• Enterprise LAN backbone and horizontal cabling
• PoE applications up to 100W (IEEE 802.3bt) with adequate heat dissipation
• Industrial environments where low smoke and halogen-free materials are mandated

Key specifications

• Category: CAT 6a (Class EA) per ISO/IEC 11801
• Shielding: S/FTP (PiMF) – pairs in metal foil, overall tinned copper braid
• Length: 20 meters
• Conductor: Stranded bare copper, 26 AWG (7/0.16 mm)
• Jacket: LSOH (Low Smoke Zero Halogen), grey, IEC 60332-1 flame retardant
• Connectors: RJ45 male to RJ45 male, 50 µm gold-plated contacts
• Wiring: TIA/EIA 568B, straight-through
• Outer diameter: 6.2 mm ± 0.3 mm
• Certifications: RoHS, CE

Recommendations

For reliable 10G connectivity in demanding environments, this DSIT cable offers excellent shielding and safety features. Ensure proper bend radius during installation to maintain performance.
