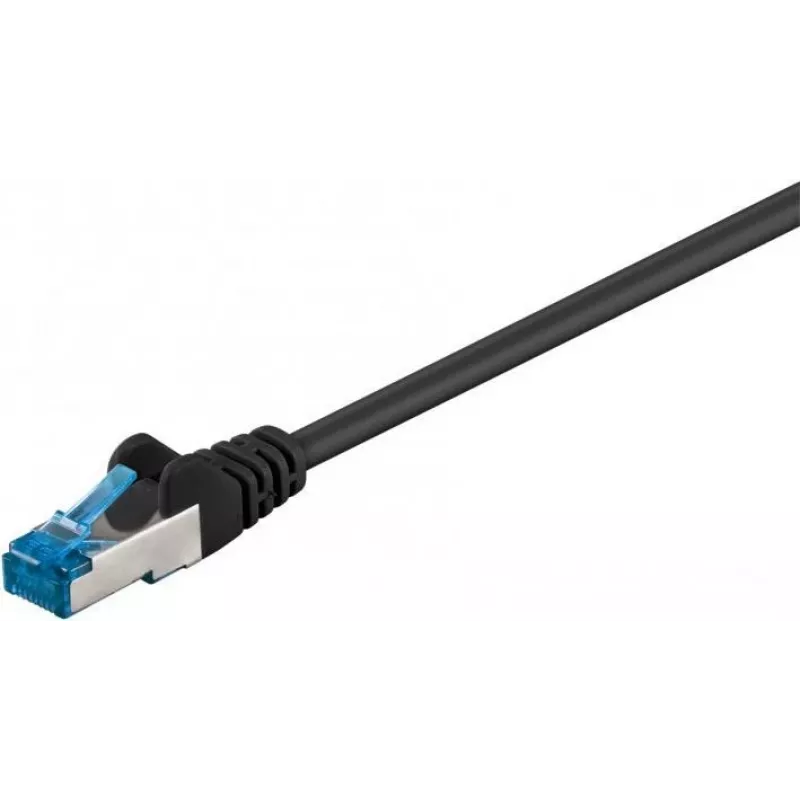

Cabo de rede DSIT CAT 6a LSOH - S/FTP - 30 metros - preto (DC-6A0-300)

For installations where fire safety is non-negotiable, this DSIT CAT 6a cable pairs LSOH jacketing with S/FTP shielding to deliver 10 Gigabit performance without compromising on low-smoke, zero-halogen requirements. The 30-meter length and durable black sheath make it a practical choice for structured cabling in offices, data centers, and industrial environments.

Highlights

• Category 6a performance with up to 500 MHz bandwidth and 10GBASE-T support
• S/FTP shielding: each pair foiled plus overall braid for superior EMI/RFI rejection
• LSOH (Low Smoke Zero Halogen) jacket for enhanced fire safety and low toxicity

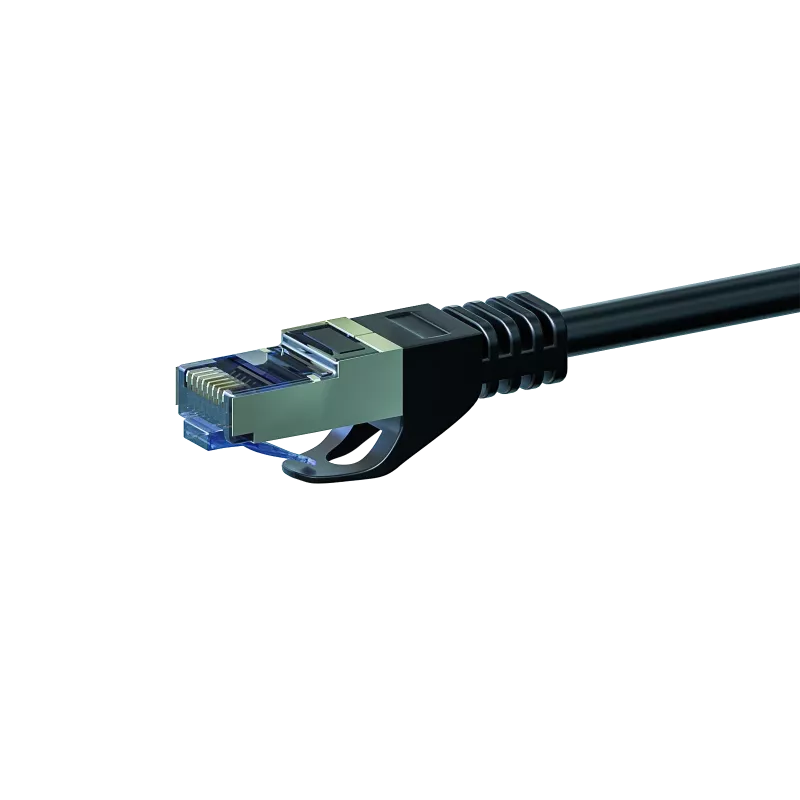

• Gold-plated RJ45 connectors (50µm) ensure reliable, corrosion-resistant connections
• Bare copper conductors, 23 AWG stranded, support Power over Ethernet (PoE)
• Complies with TIA/EIA-568-C.2, ISO/IEC 11801, RoHS, and CE standards

In daily use

Whether you're running high-speed backbone links or connecting PoE-powered devices, this cable maintains signal integrity over its full 30-meter length. The stranded construction offers flexibility for routing through conduits and cable trays, while the black LSOH sheath resists abrasion and reduces smoke emission in the event of fire. The robust RJ45 connectors with gold-plated contacts ensure a secure fit and consistent performance across thousands of mating cycles.

Full specifications

• Brand: DSIT
• Model: DC-6A0-300
• MPN: DC-6A0-300
• EAN: 8719956622427
• Cable type: CAT 6a S/FTP network patch cable
• Length: 30 meters
• Colour: Black
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated (50µm)
• Conductor material: Bare copper
• Conductor gauge: 23 AWG
• Cable construction: Stranded
• Number of pairs: 4 twisted pairs
• Impedance: 100 Ohm
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS, CE
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• Operating temperature: -20°C to 60°C
• Application: High-speed data networks, PoE compatible

Final note

When your network demands both speed and safety, this DSIT CAT 6a LSOH cable delivers reliable 10G performance with the peace of mind of low-smoke, zero-halogen construction.
