Cabo de rede EFB Elektronik K5538SW.15 RJ-45 Cat6a 15 m preto

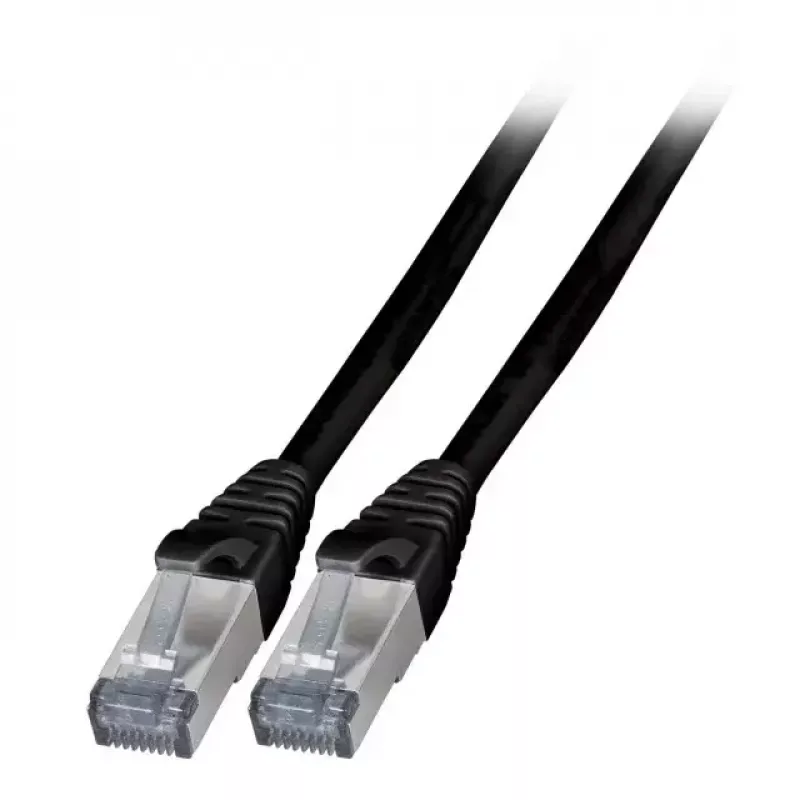

The EFB Elektronik K5538SW.15 is a 15 m Cat6a network cable with moulded RJ45 plugs and S/FTP shielding, designed for 10GBase-T data transmission up to 10000 Mbit/s. The cable uses 4 pairs AWG26/7 in a PiMF configuration and meets industry flame retardance and low-smoke, halogen-free standards, making it suitable for installations where space is limited and higher ambient temperatures occur.

Advantages

The cable is fitted with shielded 2 x RJ45 plugs with 50 μ" gold plating and latch protection, providing reliable connector contact and reduced corrosion. A superflex TPE outer sheath offers high flexibility for cramped routing and improved UV resistance for installations exposed to sunlight. S/FTP construction and individual pair shielding reduce electromagnetic interference, while compliance with IEC 60332-1, IEC 60754-2 and IEC 61034 ensures flame retardance, halogen-free composition and low smoke emission.

Suitable for

• 10GBase-T Ethernet and high-speed LAN connections
• Office, server room and structured cabling where space is restricted
• Installations requiring higher operating temperature range (-40° to +80°)
• Environments where low smoke and halogen-free materials are required

Key specifications

• Length: 15 m
• Standard: Cat6a, TIA/EIA 568B coded
• Connectors: 2 x RJ45, shielded, 50 μ" gold plated, IEC 60603-7-51
• Conductor: S/FTP, 4 x 2 x AWG26/7, PiMF
• Outer diameter: Ø = 6.2 mm
• Sheath: TPE (superflex), UV-resistant
• Fire and safety: IEC 60332-1 (flame retardant), IEC 60754-2 (halogen-free), IEC 61034 (low smoke)
• Data rate: up to 10000 Mbit/s (10GBase-T)

How to use

Route the cable through cable ducts or along cable trays, avoiding sharp bends to preserve the superflex sheath and conductor integrity. Connect each RJ45 plug to the corresponding network ports on devices or patch panels following the TIA/EIA 568B wiring scheme. Ensure shield continuity by connecting cable shields to grounded equipment or panels where applicable to maintain the S/FTP performance.

Recommendations

For optimal long-term performance, avoid repeated tight bending and protect the cable from mechanical damage. When installing in outdoor or UV-exposed locations, verify that connectors and any exposed sections are protected from water ingress. Ground the cable shield at a single point to prevent ground loops and preserve EMI protection.
