Patch Panel EFB Elektronik 37666SW.1M

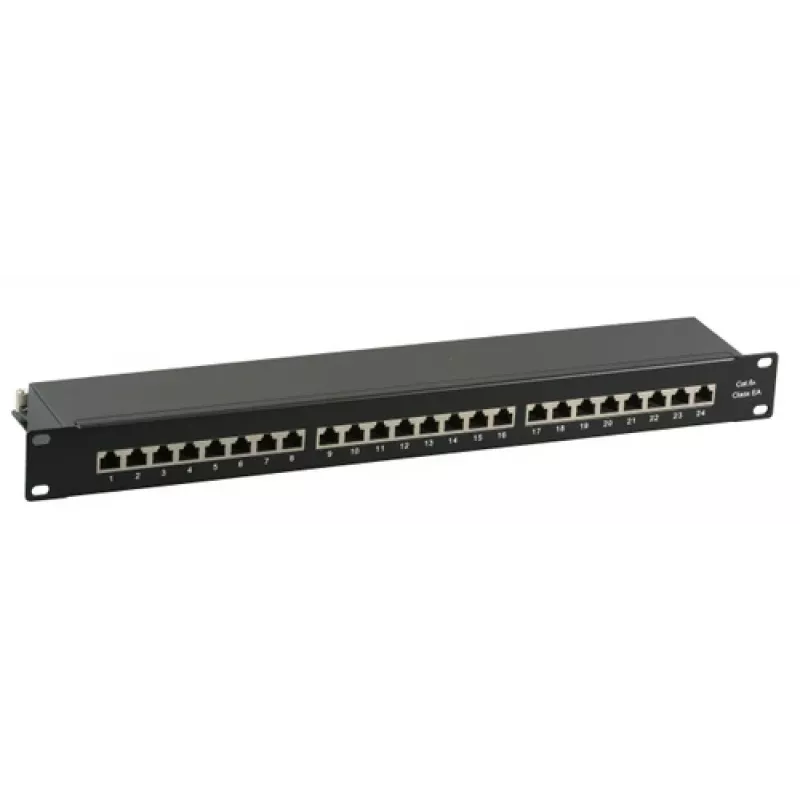

The EFB Elektronik 37666SW.1M is a 1U rack-mounted patch panel designed for Cat6a cabling systems. It provides 24 RJ-45 ports with gold-plated contacts to ensure stable signal transmission and reduced corrosion. With a standard rack width of 483 mm, height of 44.5 mm and depth of 112 mm, the panel fits conventional 19-inch racks and offers a compact, organized way to terminate and manage horizontal network cabling.

Advantages

The panel supports Category 6a performance levels suitable for high-speed Ethernet links and PoE applications. Gold-plated contacts enhance contact reliability and long-term conductivity. A 1U metal housing in black delivers mechanical robustness and consistent rack alignment, while the 24-port layout allows centralized patching and simplified cable management.

Suitable for

• Enterprise and small business network racks
• Data centers and server rooms requiring Cat6a connectivity
• Telecommunications cabinets and network closets
• Environments using Power over Ethernet (PoE) devices

Key specifications

• Form factor: 1U rack-mounted panel
• Number of ports: 24 RJ-45 ports
• Cable category: Category 6a compatible
• Connector contacts: Gold-plated contacts for improved conductivity
• Outer dimensions (W×H×D): 483 mm × 44.5 mm × 112 mm
• Colour: Black metal housing

How to use

Install the patch panel into a standard 19-inch rack using appropriate mounting screws to secure the 1U unit. Terminate each Cat6a cable to the rear IDC or punch-down positions as specified by the cabling scheme, observing proper pair alignment and untwisting limits. Connect front RJ-45 ports to patch cords that lead to network switches, routers or devices. Label ports as needed to maintain clear identification and simplify troubleshooting.

Recommendations

Maintain adequate bend radius for Cat6a cables and avoid excessive untwisting at termination points. Use quality patch cords and keep patch panel ports and cable runs within specified length limits for Cat6a to preserve signal integrity. Regularly inspect connections for secure contact and replace damaged cords to ensure reliable network performance.
