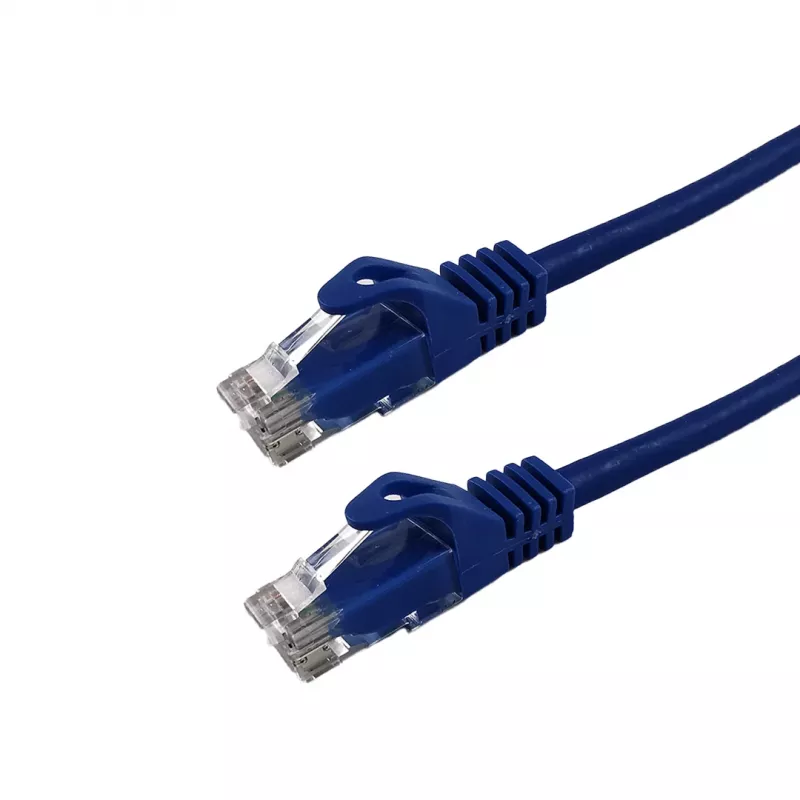

Cabo de rede Ethernet Grafenthal CAT6 U/UTP LSZH 0,2m azul

The Grafenthal CAT6 U/UTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable Gigabit Ethernet connections. With a length of 0.2 meters, it is ideal for short-distance patching in data centers, server rooms, and network cabinets. The cable features pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and compliance with fire regulations.

Advantages

This patch cable offers excellent signal integrity and minimal crosstalk thanks to its U/UTP design and 26 AWG stranded conductors. The gold-plated RJ45 connectors provide corrosion-resistant contacts for long-lasting performance. Its compact 20 cm length helps reduce cable clutter and improve airflow in tight spaces.

Suitable for

• Connecting network devices such as computers, routers, switches, and patch panels
• Use in data centers, server rooms, and telecommunications closets
• Applications requiring LSZH-rated cables for fire safety compliance

Key specifications

• Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.2 m (20 cm)
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Conductor Gauge: 26 AWG
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps (1000BASE-T)
• Cable Structure: Stranded
• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid bending beyond the minimum bend radius. This cable is not suitable for outdoor or direct burial applications.
