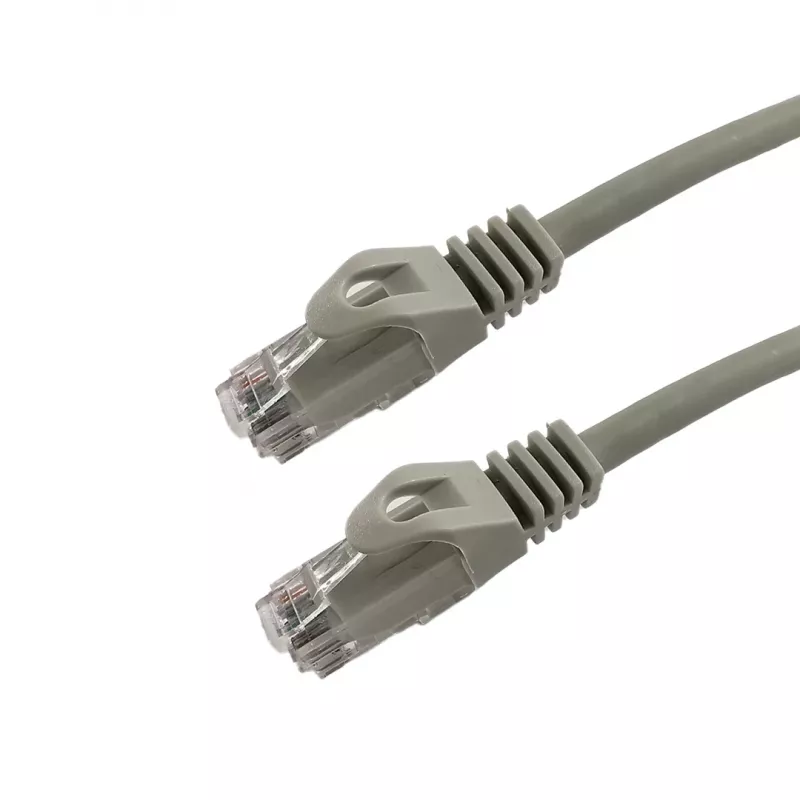

Cabo de rede Grafenthal CAT6A S/FTP CU LSZH 5,00 m cinzento

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 5.00m Grey is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Constructed with pure copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers, server rooms, and demanding office environments. The LSZH jacket provides enhanced safety in case of fire, reducing toxic smoke and halogen emissions.

Advantages

This cable delivers exceptional data transfer rates up to 10 Gbps with a bandwidth of 500 MHz, supporting high-bandwidth applications such as streaming, gaming, and large file transfers. The gold-plated RJ45 connectors ensure corrosion resistance and optimal signal integrity. Its stranded core construction offers flexibility for easy routing in tight spaces.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks with 10GBASE-T infrastructure
• PoE applications (Power over Ethernet) for devices like IP cameras and access points
• Home networks for lag-free gaming and 4K video streaming

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6a (Category 6a)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 5.00 meters
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Cable Construction: Stranded
• Wiring Standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Wire Gauge: 26 AWG
• Compatibility: Backward compatible with Cat6, Cat5e, Cat5
• Certifications: RoHS, CE
• Fire Safety Standard: IEC 60332-1

Recommendations

For optimal performance, ensure that all network components (switches, routers, NICs) support CAT6a or higher standards. This cable is suitable for use in structured cabling systems and can be used with patch panels and keystone jacks. Avoid sharp bends and excessive tension during installation to maintain signal quality.
