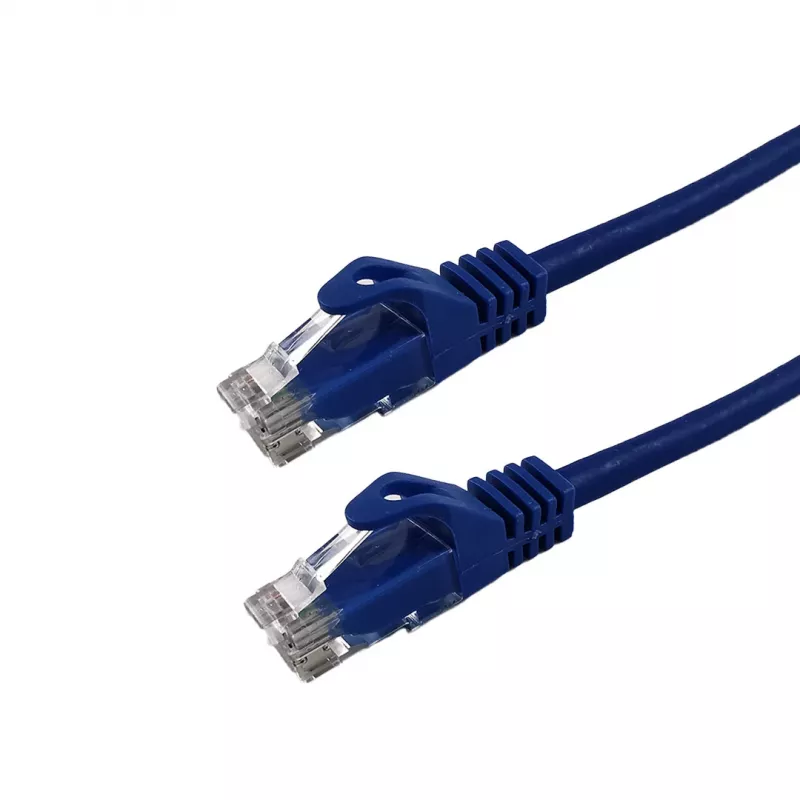

Cabo de rede Grafenthal CAT6A S/FTP LSZH 0,15m azul

The Grafenthal CAT6A S/FTP LSZH Patch Cable is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections in data centers and enterprise networks. With a length of 0.15 meters, it is ideal for short patch connections between network devices, patch panels, and switches. The cable features S/FTP shielding (screened foiled twisted pair) to minimize electromagnetic interference, ensuring stable data transmission. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic smoke and corrosive fumes in case of fire. Made with 100% copper conductors, it meets Category 6A standards for bandwidth up to 500 MHz.

Advantages

This patch cable offers superior performance and safety. The S/FTP shielding protects against crosstalk and external noise, making it suitable for high-density environments. The LSZH jacket is environmentally friendly and complies with strict fire safety regulations. Snagless boots protect the RJ45 connectors during installation and removal, while molded connectors ensure durability. The cable is backward compatible with Cat6, Cat5e, and Cat5 networks.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• 10GBASE-T applications
• PoE (Power over Ethernet) devices
• Short-distance patching between switches and patch panels

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A (Category 6A)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.15 meters
• Color: Blue
• Connectors: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: TIA/EIA-568B
• Halogen Free: Yes
• Flame Retardant: Yes
• Snagless Boot: Yes
• Molded Connectors: Yes
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible CAT6A switches and patch panels. Ensure proper cable management to maintain signal integrity. Ideal for use in data centers where space is limited and short, reliable connections are required.
