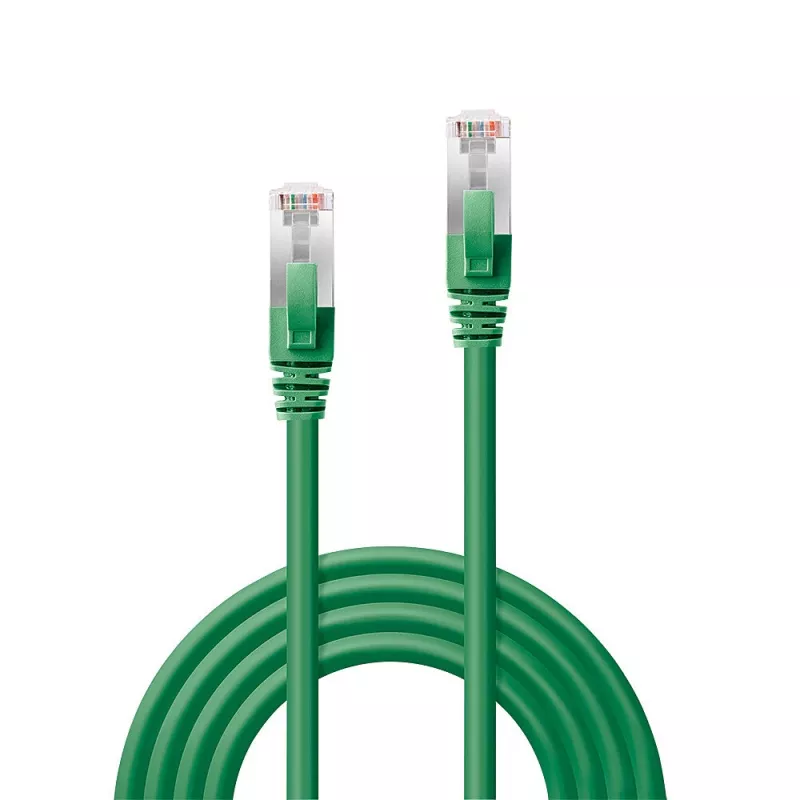

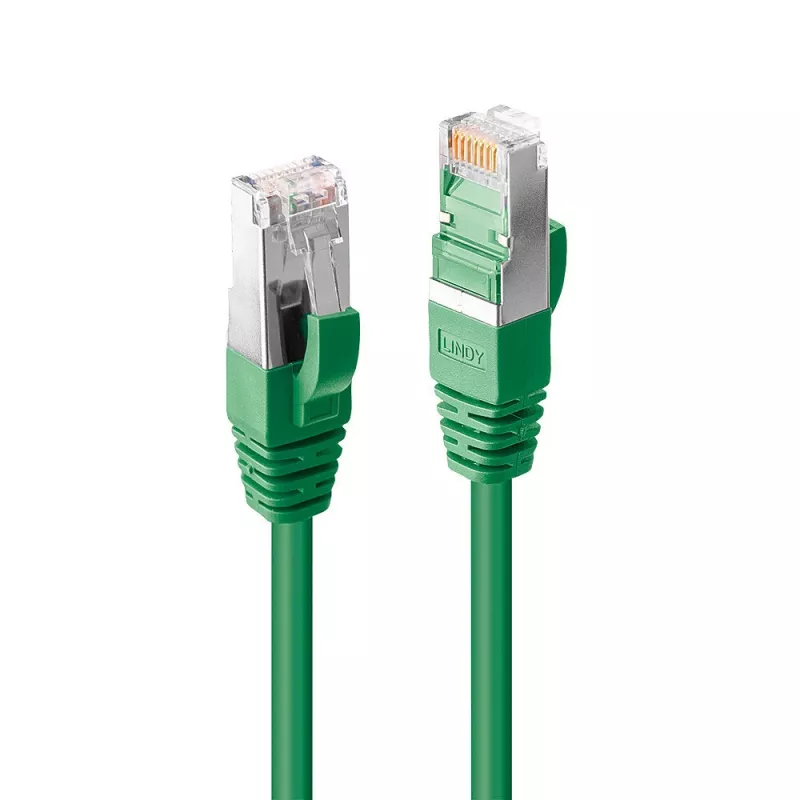

Cabo de rede Lindy 47677 verde 1 m Cat6a S/FTP (S-STP)

The Lindy 47677 is a 1 m Cat6A S/FTP network cable with RJ-45 connectors and a halogen-free (LSZH) sheath. It supports data transmission for Ethernet standards up to 10GBase-T and an operating frequency of up to 500 MHz. The cable is manufactured and tested to ISO/IEC 11801 and is supplied individually in a polybag.

Advantages

The S/FTP construction provides an overall braided shield plus foil shielding for each twisted pair, reducing electromagnetic interference and crosstalk. Gold-plated RJ-45 contacts improve corrosion resistance and maintain reliable connections over time. A snagless strain-relief design protects the connector latch during installation and removal. The LSZH sheath lowers smoke emission and eliminates toxic halogen gases, making the cable suitable for use in public or enclosed spaces where low smoke is required.

Suitable for

• 10GBase-T Ethernet connections in data centers and server rooms
• High-speed wired networks for offices and home workstations
• Environments requiring reduced electromagnetic interference
• Installations where low-smoke, halogen-free cables are preferred

Key specifications

• Length: 1 m
• Category: Cat6A (S/FTP)
• Bandwidth / frequency: up to 500 MHz
• Connector type: RJ-45 to RJ-45, gold-plated contacts
• Standards: Supports 10GBase-T; manufactured/tested to ISO/IEC 11801
• Sheath: LSZH (halogen-free)
• Colour: Green

How to use

Connect one RJ-45 plug to your network device (switch, router, NIC) and the other to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks. Route the cable without sharp bends and avoid running it parallel and close to mains power cables to minimize interference. For permanent installations, use appropriate cable management and strain relief to prevent stress on the connectors.

Recommendations

Use the Lindy 47677 Cat6A S/FTP cable for short runs up to 1 m where 10GBase-T performance and low-smoke, halogen-free materials are required; avoid excessive bending radius and do not exceed the specified operating frequency for optimal performance.
