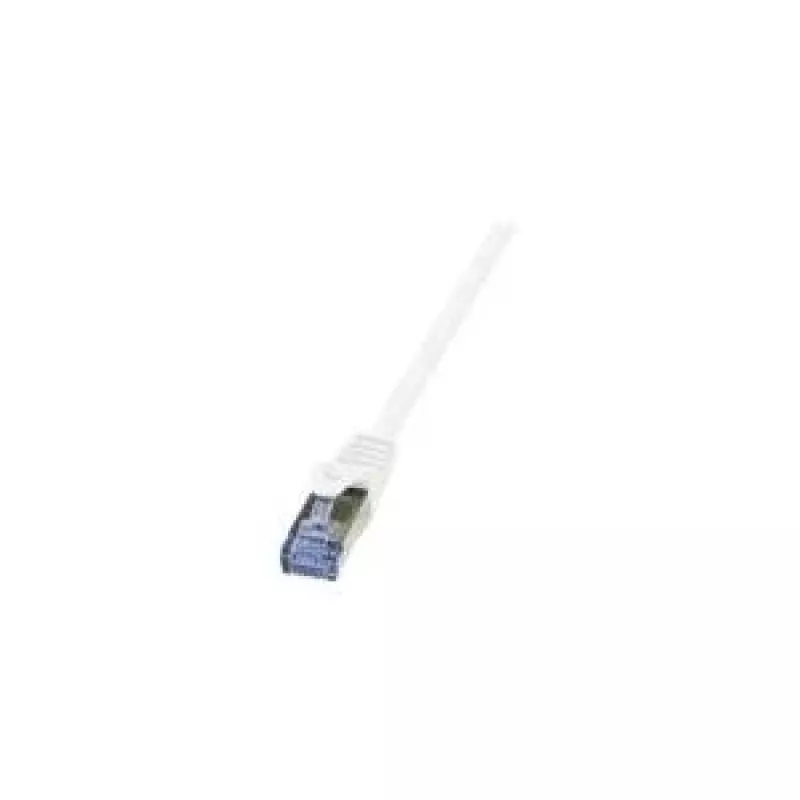

Cabo de rede LogiLink 0,25 m RJ-45 Cat6a branco

LogiLink Patch Cable Cat.6A 10G S/FTP PIMF, 0.25 m, white — a short RJ-45 to RJ-45 network cable designed for reliable high-speed data transmission in structured cabling and device interconnects. The cable uses S/FTP (shielded foil around pairs with overall braid) construction, bare copper conductors and an LSZH (low smoke zero halogen) jacket, and meets ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards.

Advantages

The S/FTP PIMF design provides robust protection against electromagnetic interference and crosstalk, supporting 10 Gbps transmission as required by the Cat6A standard. Its 0.25 m length is suitable for short patching between network equipment, while the LSZH jacket reduces toxic fumes in case of fire. The cable’s white finish offers a discreet appearance for visible installations.

Suitable for

• Short connections between switches, patch panels and servers
• High-speed connections requiring Cat6A performance (up to 10G)
• Environments where reduced smoke and halogen-free materials are required

Key specifications

• Length: 0.25 m
• Connectors: RJ-45 — both ends
• Cable category: Cat.6A (10G)
• Construction: S/FTP (PIMF) with bare copper conductors, AWG 26/7
• Jacket: LSZH (low smoke zero halogen)
• Compliance: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
• Colour: White
• Weight: approx. 20 g

How to use

Connect one RJ-45 plug to a network device (switch, router, patch panel or NIC) and the other plug to the corresponding port of the second device. Ensure connectors are fully inserted and the cable is routed without sharp bends to maintain signal integrity. Use the 0.25 m length for close-proximity patching or cabinet-level connections.

Recommendations

For best results, avoid routing the cable near sources of strong electromagnetic interference and do not exceed the recommended bend radius. Use this LogiLink Cat6A patch cable for short, high-speed links within racks or between adjacent equipment.
