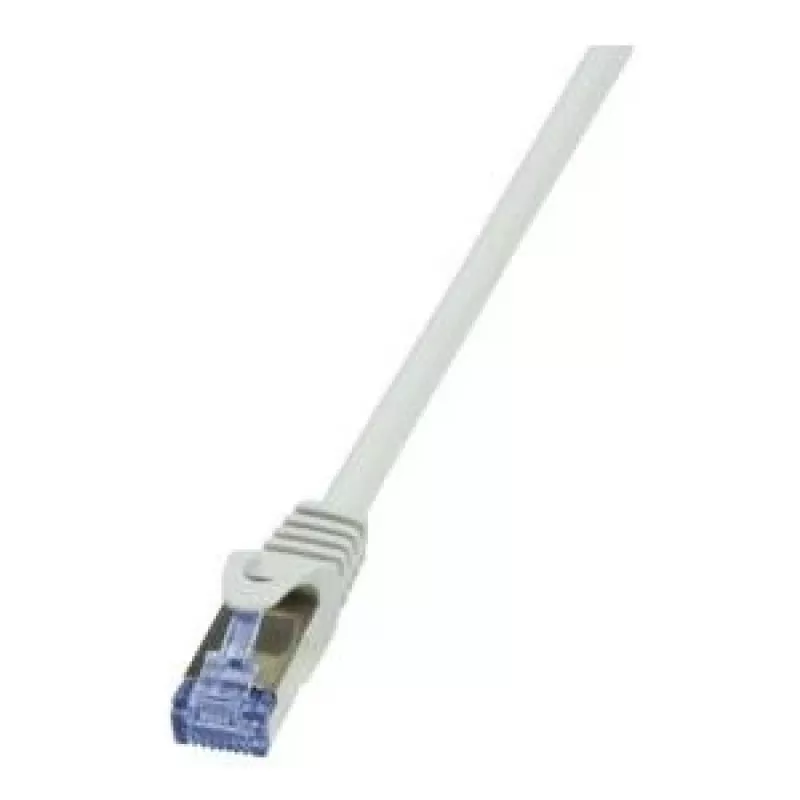

Cabo de rede LogiLink 15 m RJ-45 Cat7 cinzento

Networking Cable LogiLink 15m RJ-45 Cat7 Grey is a 15-metre S/FTP Cat.7 cable designed for high-speed wired networks. The cable supports up to 600 MHz and 10 Gigabit raw transmission and uses AWG 26/7 copper conductors with individually foil-shielded pairs and an overall braided shield to reduce crosstalk and external interference. Both ends are fitted with Cat.6 RJ-45 plugs with 50 µ gold plating and the sheath is LSZH (halogen-free). The cable complies with ISO/IEC 11801, EN 50173-1 and TIA/EIA-568-B.2-1 standards.

Advantages

The S/FTP construction with pair-level metal foil and overall shielding provides reliable protection against electromagnetic interference. Gold-plated RJ-45 contacts improve contact reliability and reduce corrosion. The LSZH jacket minimizes hazardous gas emission in case of fire and is suitable for use in enclosed spaces. Support for Cat.7 performance up to 600 MHz and 10 Gigabit makes the cable suitable for demanding network connections.

Suitable for

• High-bandwidth local area networks (LAN)
• Server rooms and network closets
• Home offices and multimedia streaming
• Workstations requiring stable wired connections

Key specifications

• Cable type: Cat.7 S/FTP
• Length: 15 m
• Bandwidth: 600 MHz
• Data rate: up to 10 Gbps (raw)
• Conductor: AWG 26/7 copper
• Shielding: pairs in metal foil (S/FTP) with overall shield
• Connectors: RJ-45 (Cat.6) with 50 µ gold plating
• Jacket: LSZH (halogen-free)
• Standards: ISO/IEC 11801, EN 50173-1, TIA/EIA-568-B.2-1
• Colour: Grey

How to use

Connect each RJ-45 plug to the corresponding network ports on your devices or patch panels until the connector clicks into place. Ensure the cable is routed without sharp bends and avoid tight kinks to maintain signal integrity. For structured cabling, label both ends and secure the cable with appropriate strain relief and cable management accessories.

Recommendations

Use this LogiLink Cat7 cable for connections that require stable, high-speed wired transmission. Avoid running the cable in parallel with high-voltage power lines to minimize interference. For permanent installation in plenum spaces, verify local building codes despite the LSZH jacket.
