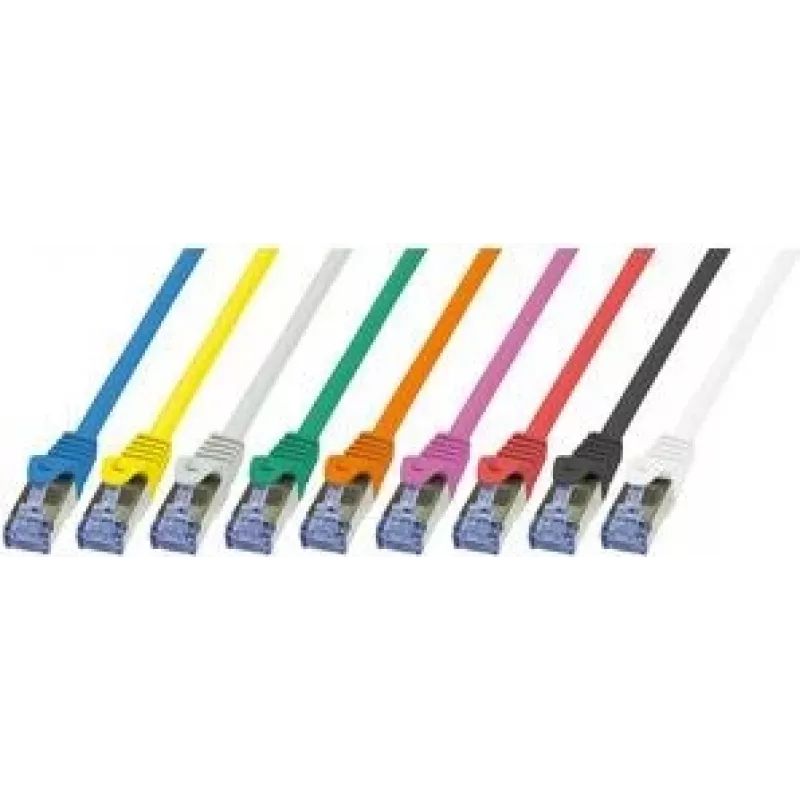

Cabo de rede LogiLink 7,5 m Cat.6A RJ-45 S/FTP azul

The LogiLink 7.5m Cat.6A RJ-45 S/FTP networking cable delivers a 7.5 metre connection for high-speed data transfer up to 10000 Mbit/s. It is built with AWG 26/7 bare copper conductors, PIMF (Pair in Metal Foil) shielding and an overall S/FTP (S‑STP) shield to minimise interference. The cable is finished with a low smoke zero halogen (LSZH) jacket and fitted with RJ-45 connectors on both ends, suitable for structured cabling that complies with ISO/IEC 11801, EN50288 and TIA/EIA 568‑C.2 standards.

Advantages

The cable combines Cat.6A performance with S/FTP shielding to provide improved crosstalk and electromagnetic interference protection compared with unshielded alternatives. AWG 26/7 bare copper conductors ensure reliable signal transmission while the LSZH jacket reduces harmful emissions in case of fire. RJ-45 connectors on both ends allow easy plug-and-play connectivity for network devices.

Suitable for

• High-speed Ethernet connections up to 10 Gbps
• Wired home and office networks
• Server rooms and patch panels requiring shielded cabling
• Environments where low-smoke, zero-halogen cables are preferred

Key specifications

• Length: 7.5 m
• Cable type: Cat.6A S/FTP (S‑STP), PIMF
• Conductors: AWG 26/7 bare copper
• Connectors: RJ-45 to RJ-45
• Jacket: LSZH (low smoke zero halogen)
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568‑C.2
• Colour: Blue
• Weight: 0.27 kg

How to use

Connect one RJ-45 connector to your network device (router, switch, PC port or patch panel) and the other connector to the corresponding port on the remote device. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and sources of strong electromagnetic interference; maintain proper bend radius to preserve performance. For permanent installations, use appropriate cable management and grounding practices for shielded cabling.

Recommendations

For optimal 10 Gbps performance, use the cable in installations that support Cat.6A throughput and avoid exceeding recommended cable lengths for specific environments; terminate and ground the shielded cabling correctly when connecting to patch panels or shielded outlets.
