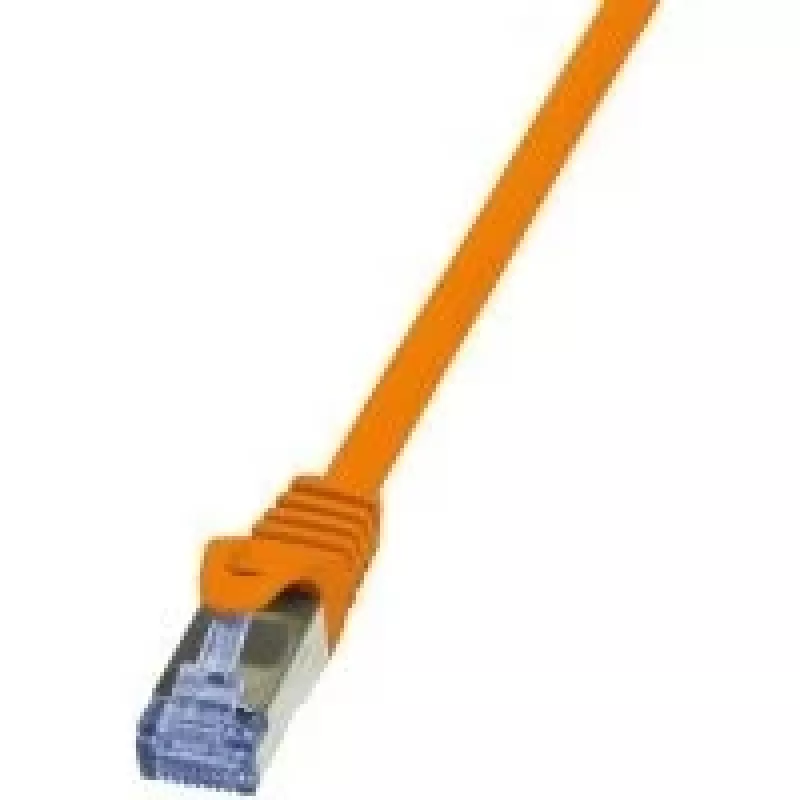

Cabo de rede LogiLink Cat6a S/FTP RJ-45 5m laranja

The LogiLink Cat6a S/FTP RJ-45 networking cable, 5 m in length and orange in colour, is built for high-speed wired data transmission in home and office networks. It uses a shielded S/FTP (screened foil twisted pair) structure with PIMF (pairs in metal foil) and bare copper conductors to maintain signal integrity and reduce external electromagnetic interference. The cable meets international standards including ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2, and is terminated with RJ-45 connectors for compatibility with standard network equipment.

Advantages

The S/FTP shielding and PIMF design provide improved protection against crosstalk and external noise compared with unshielded cables. Bare copper conductors ensure good conductivity and reliable performance at Cat6a frequencies. The LSZH (low smoke zero halogen) jacket reduces toxic fumes in the event of fire and the 5 m length offers convenient reach for typical desk-to-switch or equipment-to-router connections.

Suitable for

• Wired Ethernet connections in home or small office networks
• Connections between PCs, switches, routers and patch panels
• High-speed data applications requiring Cat6a performance (up to 10 Gbps over suitable links)

Key specifications

• Cable type: Cat6a S/FTP (Shielded Foil Twisted Pair) with PIMF
• Length: 5 m
• Connectors: RJ-45 to RJ-45
• Conductor material: bare copper
• Conductor construction: AWG 26/7
• Jacket: LSZH (low smoke zero halogen)
• Weight: 180 g
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2

How to use

Connect one RJ-45 end to the network port of your device (PC, router, switch) and the other end to the corresponding port on the network equipment. Ensure connectors are fully inserted until they click to establish a secure connection. Route the cable to avoid sharp bends and heavy compression; maintain a gentle bend radius and avoid running the cable parallel to strong electrical sources to minimize interference.

Recommendations

For optimal Cat6a performance, use this cable for link lengths up to 5 m as supplied and pair it with compatible shielded network ports and proper grounding where available; avoid excessive bending and do not subject the cable to mechanical stress.
