Cabo de rede PATCHBOX C60UTPXC6AXX1R vermelho 1,8 m Cat6a U/UTP (UTP)

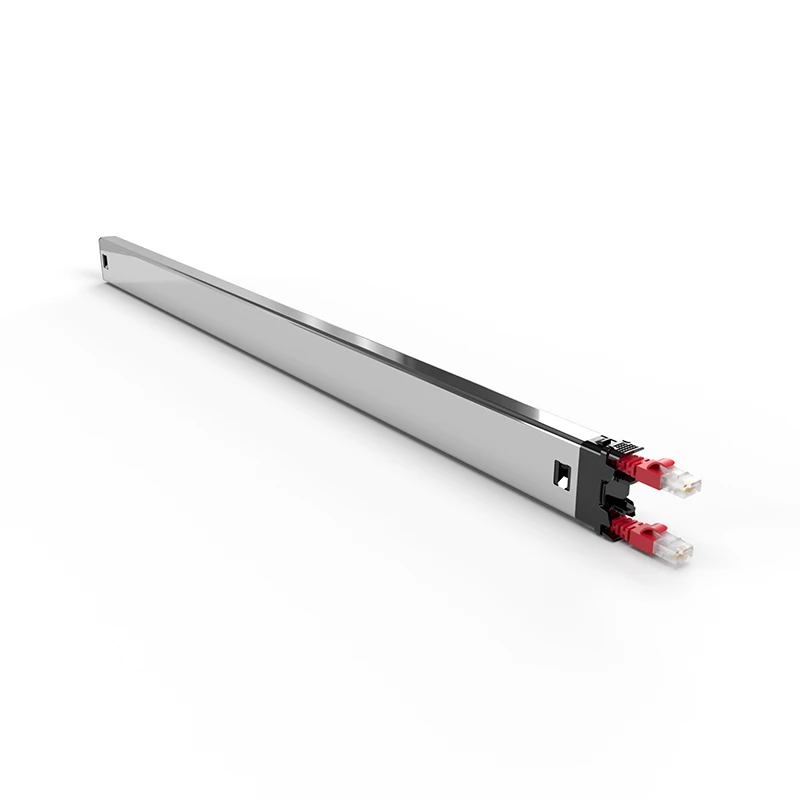

The PATCHBOX C60UTPXC6AXX1R is a 1.8 m Cat6a U/UTP networking cable designed for structured cabinet installations. It is part of the modular PATCHBOX® Cassette system and compatible with PATCHBOX® frames (Plus+ or 365). The cable supports up to 10 000 Mbit/s, uses gold-plated RJ-45 connectors and is available in a red sheath to help identify connections in patch panels and cabinets.

Advantages

This Cat6a U/UTP cable is tested to ISO/IEC 11801 Channel Class Ea and ANSI/EIA/TIA-568 Cat6A Channel standards and is RoHS compliant. The U/UTP construction provides PoE++ capability (802.3bt, Type 3, 60 W) when used unshielded, while the PATCHBOX range also offers shielded options and Corning® fiber variants (OS2 / OM4) when different media or connector types are required. The flat twisted-pair design and gold-plated RJ-45 plugs ensure reliable contact and neat cable routing inside PATCHBOX® cassettes.

Suitable for

• Patch panel and cabinet installations using PATCHBOX® cassettes and frames
• High-speed Ethernet connections up to 10 Gbit/s in data centers and offices
• Power over Ethernet applications requiring PoE++ (802.3bt, Type 3) support

Key specifications

• Length: 1.8 m
• Category: Cat6a
• Construction: U/UTP (unshielded twisted pairs)
• Data rate: up to 10 000 Mbit/s (10 Gbit/s)
• Connectors: gold-plated RJ-45
• Compliance: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat6A Channel, RoHS
• PoE capability: PoE++ (802.3bt, Type 3, 60 W) for U/UTP
• Color: Red
• MPN: C60UTPXC6AXX1R
• EAN: 0311778770737

How to use

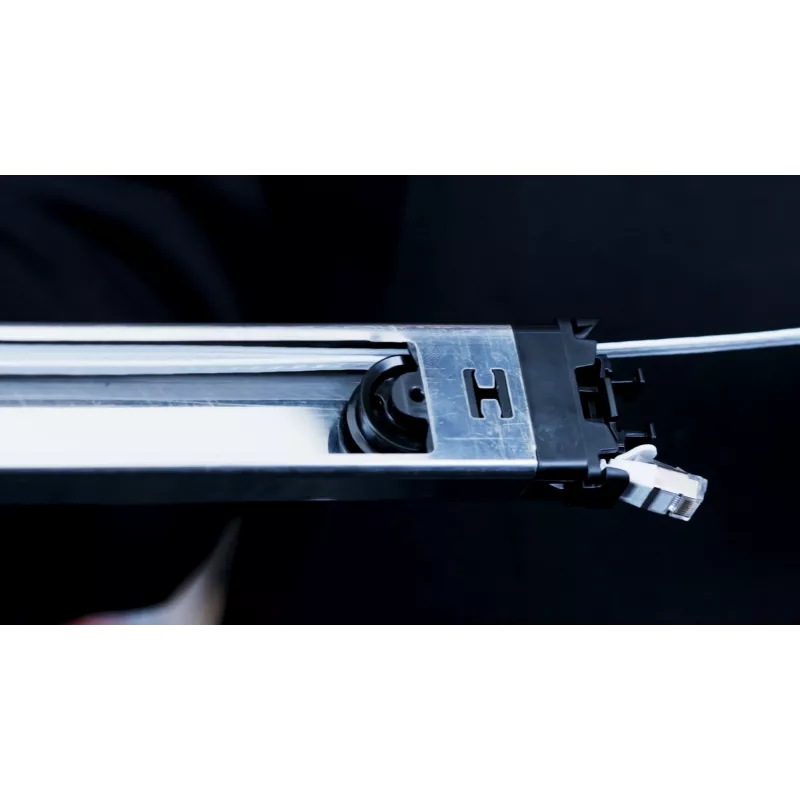

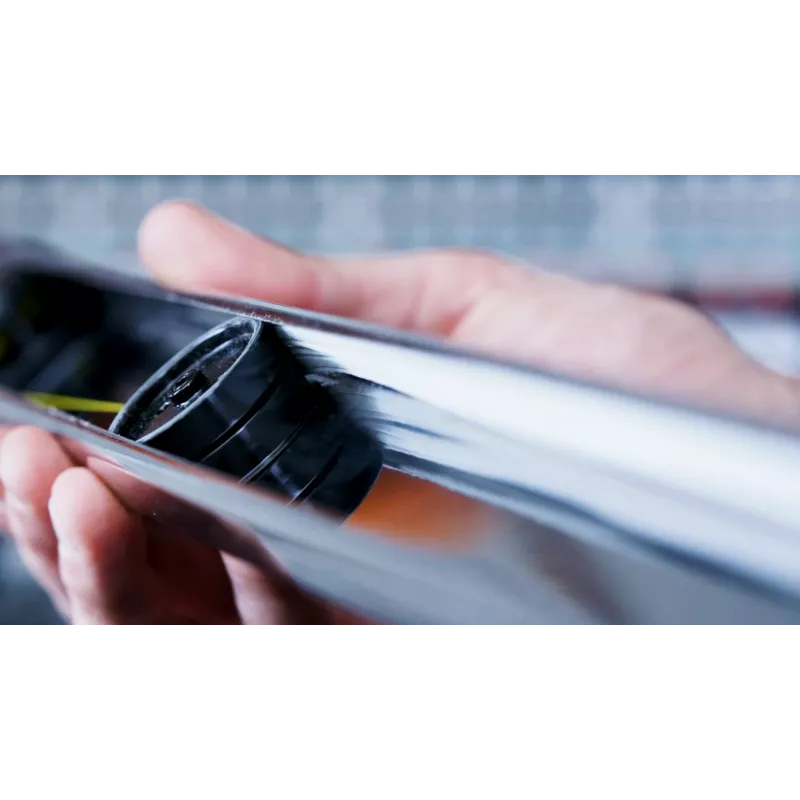

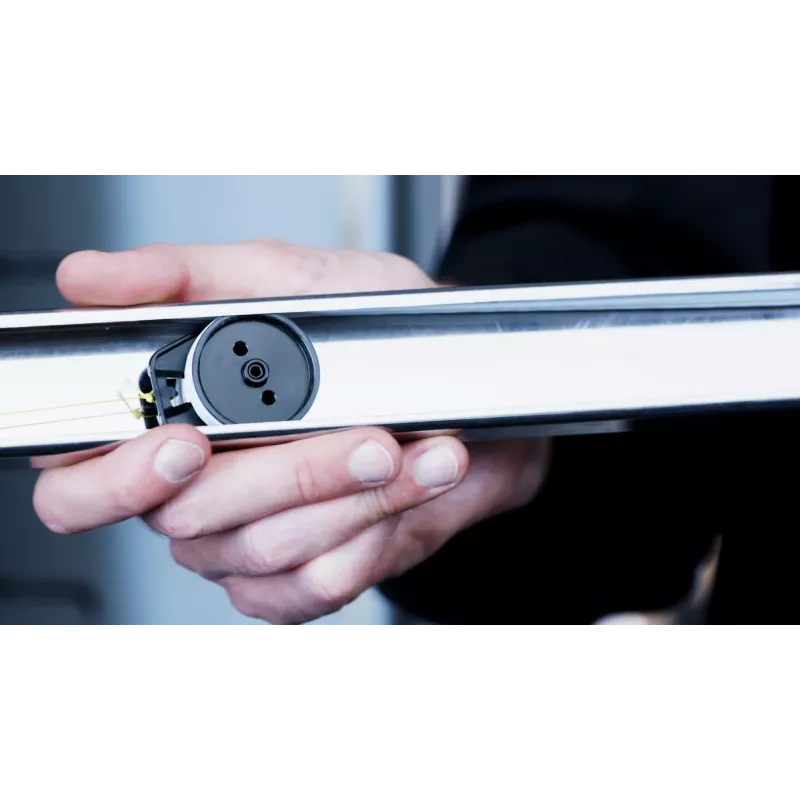

Install the cable within a PATCHBOX® Cassette and mount the cassette into a compatible PATCHBOX® Frame (Plus+ or 365). Terminate both ends in RJ-45 ports on network devices or patch panels. Route the flat cable along cabinet guides to maintain tidy management and avoid excessive bending radii. Verify connection and link speed after installation using appropriate network testing tools.

Recommendations

Use this Cat6a U/UTP cable for short to medium cabinet patch runs where identification by color is useful. For environments with high electromagnetic interference or where shielding is required, choose the shielded PATCHBOX® variants. For fiber optic requirements, select PATCHBOX® fiber assemblies with the required connector type (LC-LC, LC-SC or on request).
