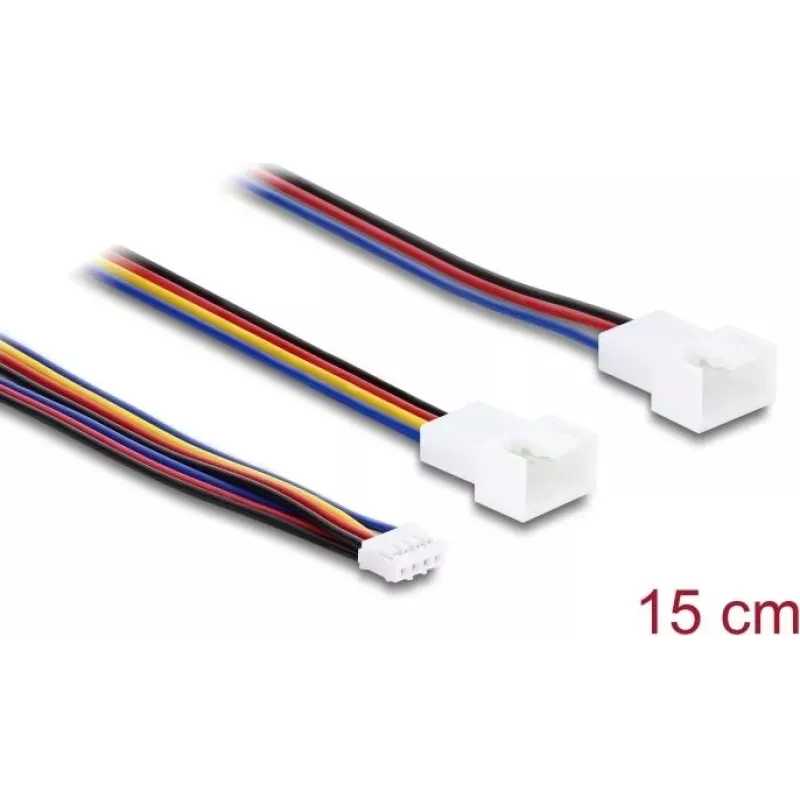

Cabo de ventoinha em Y Delock 1 x conector fêmea JST PH 4 pinos PWM para ficha macho + ficha macho 4 pinos (3 pinos ligados) 15 cm

The Delock Y Fan Cable allows you to connect two PC fans to a single 4-pin PWM fan header on your motherboard. This splitter cable features one input and two outputs, enabling efficient cable management and fan control. The first output is a fully wired 4-pin PWM male connector, while the second output is a 4-pin male connector with 3 pins occupied (power, ground, tachometer) to prevent PWM signal conflicts. Ideal for building or upgrading your PC with multiple fans.

Advantages

Connect two fans to one header; supports PWM and RPM signal on main output; compact 15 cm length for tidy installation; black connectors and cable blend with standard components.

Suitable for

• Connecting two 4-pin PWM fans to a single motherboard header
• Using 3-pin fans on the secondary output (power and tachometer only)
• PC building and cable management

Key specifications

• Input: 1 x JST PH 4-pin PWM female
• Output 1: 1 x 4-pin PWM male (fully wired)
• Output 2: 1 x 4-pin male (3 pins occupied: power, ground, tachometer)
• Cable length: 15 cm
• Colour: Black
• Material: Copper conductors, PVC jacket
• Voltage: 12V DC

Recommendations

Ensure your motherboard header can support the combined current draw of both fans. For optimal PWM control, use the primary output for the fan that should receive the PWM signal.
