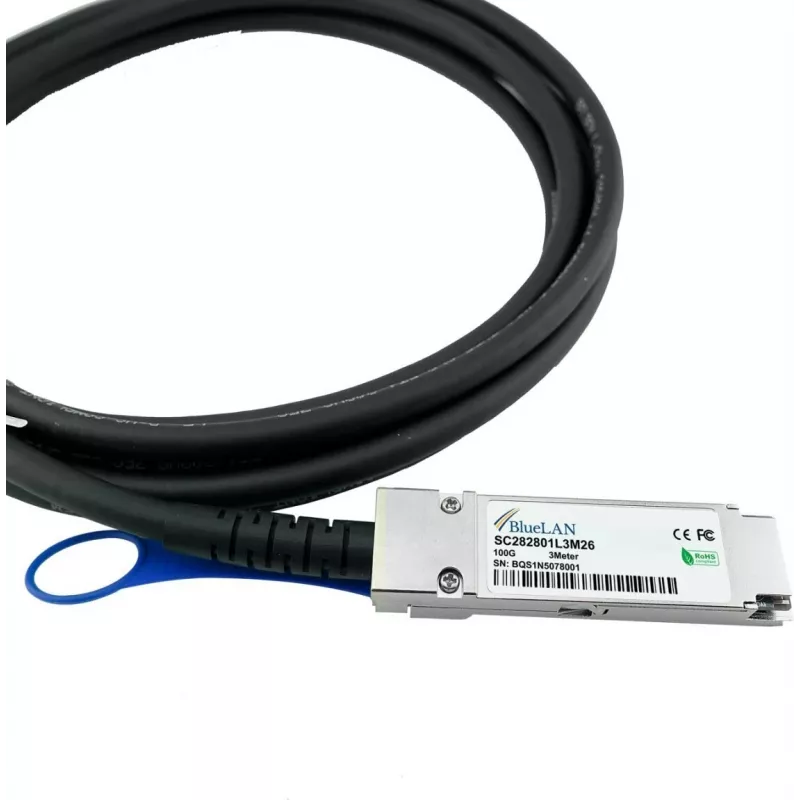

Cabo Direct Attach QSFP28 BlueOptics Compatível com Amphenol NDAAFG-0006 BlueLAN SC282801L3M26, 100GBASE-CR4, Infiniband EDR, 26AWG, 3 metros (NDAAFG-0006-BL)

The BlueOptics NDAAFG-0006-BL is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. This passive twinax cable provides a cost-effective, low-power solution for short-range interconnects in data centers, high-performance computing (HPC), and enterprise networks. Fully compatible with Amphenol NDAAFG-0006 equipment, it ensures seamless integration and reliable data transmission.

Advantages

This DAC cable offers zero power consumption, eliminating the need for external power sources and reducing overall energy costs. Its 26 AWG construction ensures flexibility and durability, while the passive design guarantees low latency and high signal integrity. The cable is hot-swappable, allowing for easy installation and maintenance without network downtime.

Suitable for

• Data center top-of-rack and end-of-row connections
• High-performance computing clusters
• Enterprise networking and storage area networks
• 100GBASE-CR4 and InfiniBand EDR environments

Key specifications

• Cable Type: Direct Attach Copper (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Protocol Support: 100GBASE-CR4, InfiniBand EDR
• Cable Length: 3 Meter
• Wire Gauge: 26 AWG
• Transceiver Type: Passive Twinax Copper
• Compatibility: Compatible with Amphenol NDAAFG-0006
• Form Factor: QSFP28
• Electrical Interface: 4x 25Gbps NRZ
• Impedance: 100 Ohm
• Power Consumption: 0W (Passive)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• Compliance: RoHS, CE, FCC
• Hot Swappable: Yes

Recommendations

For optimal performance, use this cable with compatible QSFP28 ports on switches, routers, and servers. Ensure proper cable management to avoid bending beyond the minimum bend radius. This cable is ideal for short-distance, high-speed interconnects where low power and low cost are priorities.
