Cabo Direct Attach QSFP56 BLUELAN compatível com Mellanox MCP1650-H00AE30, 200GBASE-CR4, InfiniBand, 30AWG, 0,5 metros (MCP1650-H00AE30-BL)

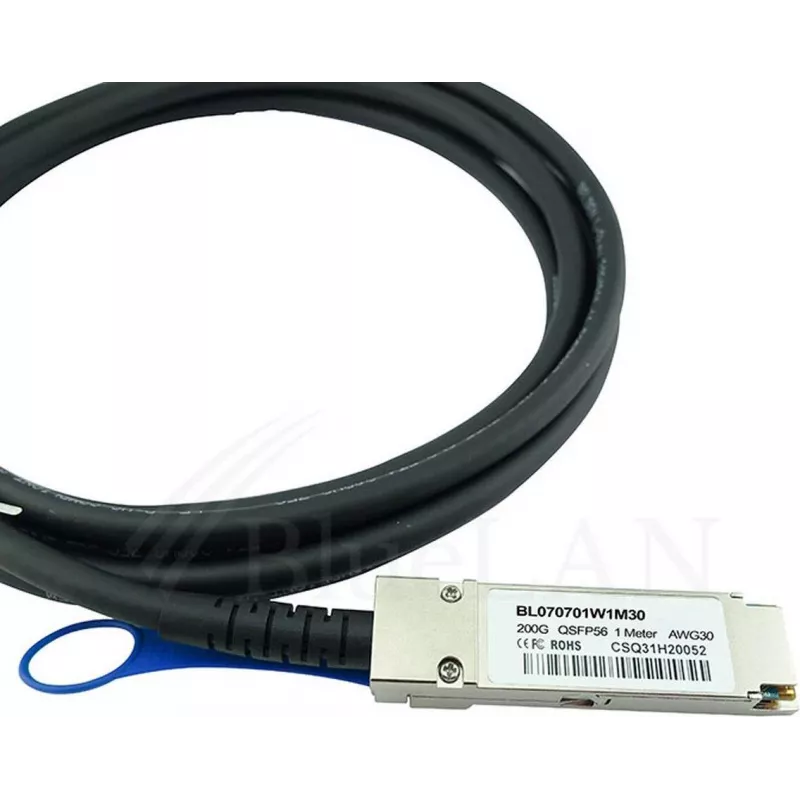

The BLUELAN MCP1650-H00AE30-BL is a high-performance, passive copper Direct Attach Cable (DAC) designed for 200 Gbps data transmission. It is fully compatible with Mellanox MCP1650-H00AE30 and ideal for data center and HPC environments.

Advantages

This cable offers a cost-effective, low-power solution for short-range high-speed interconnects. With a length of 0.5 meters and 30 AWG wire, it provides reliable connectivity with minimal signal loss. The passive design ensures zero power consumption, making it an energy-efficient choice.

Suitable for

• Data center top-of-rack to server connections
• High-Performance Computing (HPC) clusters
• 200GBASE-CR4 Ethernet and InfiniBand networks

Key specifications

• Data Rate: 200 Gbps
• Connector Type: QSFP56 to QSFP56
• Cable Length: 0.5 Meter
• Wire Gauge: 30 AWG
• Passive/Active: Passive
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Jacket Material: PVC

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 modules and 200GBASE-CR4 standards. This cable is hot-swappable and easy to install.
