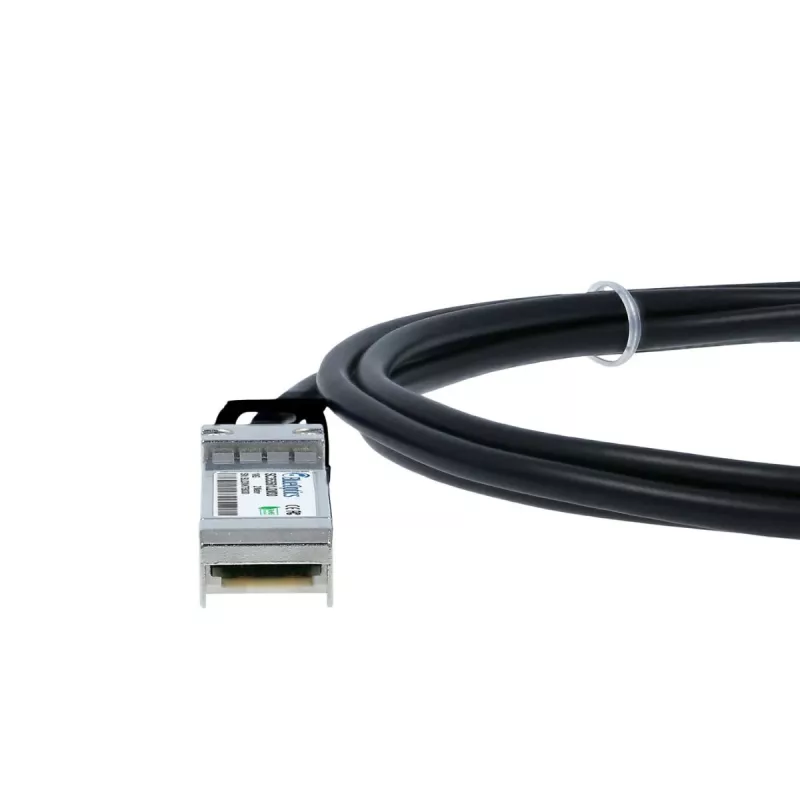

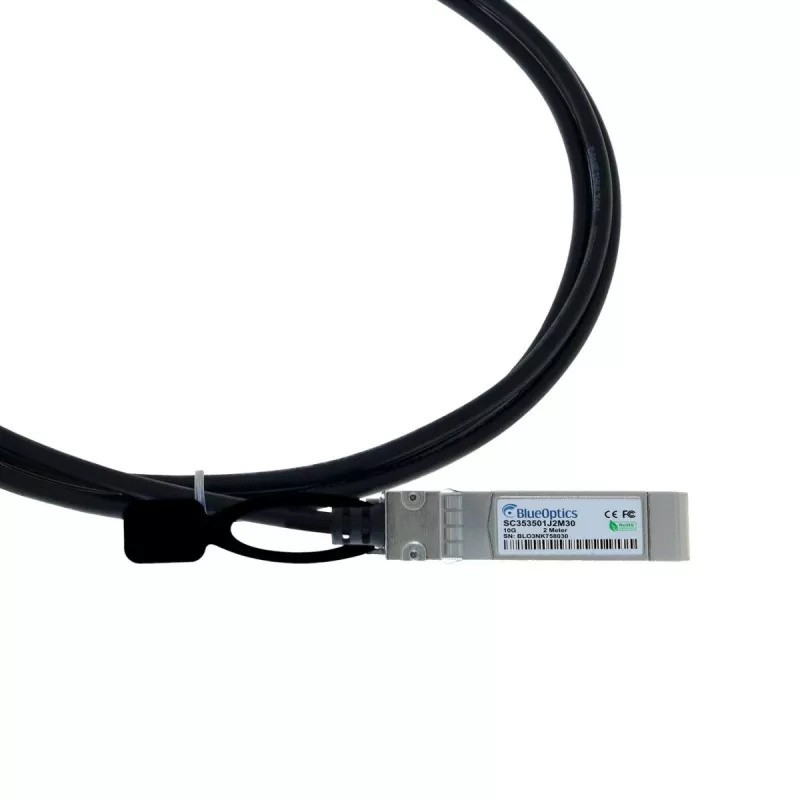

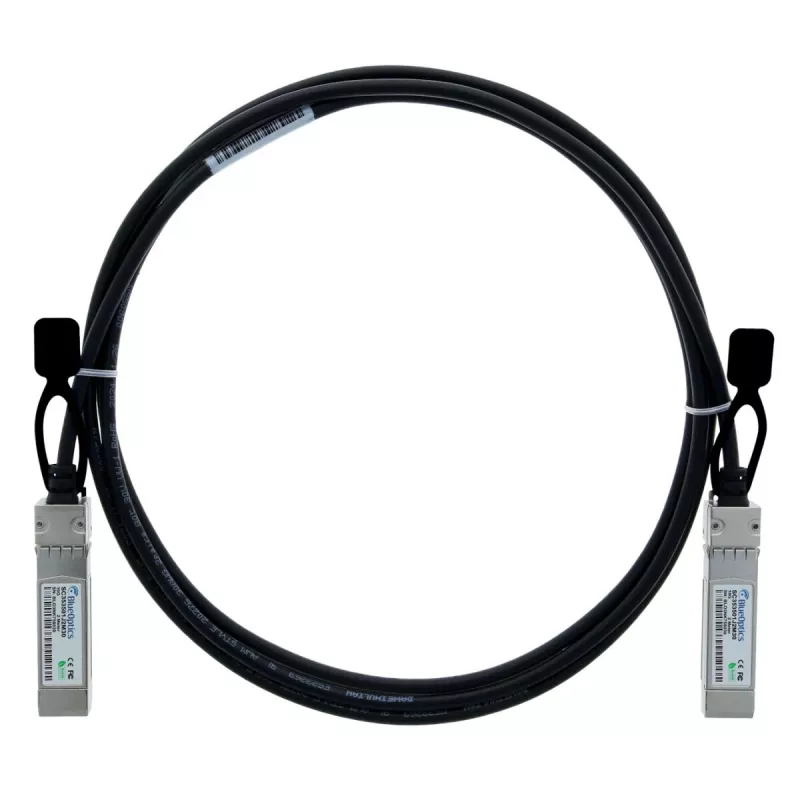

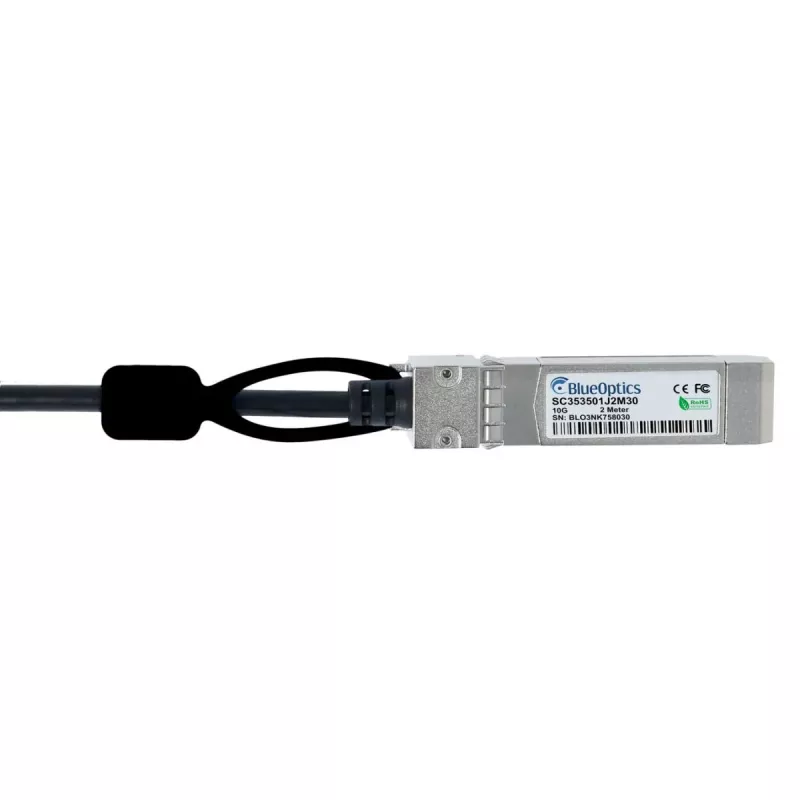

Cabo Direct Attach SFP+ passivo BlueOptics TP-Link SM5220-1M BlueLAN 10GBASE-CR, 3 m

The BlueOptics TP-Link SM5220-1M BlueLAN 10GBASE-CR Passive SFP+ Direct Attach Cable (DAC) is a high-performance, cost-effective solution for short-range 10 Gigabit Ethernet connections. Designed for use with TP-Link SM5220-1M compatible SFP+ ports, this passive twinax copper cable delivers reliable, low-latency data transmission up to 3 meters. Ideal for data center interconnects, server-to-server, and switch-to-switch links, it offers a plug-and-play experience with hot-swappable connectors.

Advantages

This DAC cable eliminates the need for separate transceivers and fiber optic cabling, reducing cost and complexity. Its passive design ensures zero power consumption (<0.5W) and minimal heat generation. The 28 AWG stranded copper conductors with PVC jacket provide durability and flexibility for tight cable management. Compliant with RoHS, CE, and FCC standards, it guarantees environmental and safety compliance.

Suitable for

• Data center interconnect (DCI)
• Server-to-server connections
• Switch-to-switch links
• High-performance computing environments

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Twinax Copper Cable
• Data Rate: 10 Gigabit Ethernet (10GbE)
• Standard: 10GBASE-CR
• Connector Type (End A): SFP+
• Connector Type (End B): SFP+
• Cable Length: 3 Meter
• Cable Design: Passive
• Compatibility: TP-Link SM5220-1M Compatible
• Hot-Swappable: Yes
• Impedance: 100 Ohm
• Wire Gauge: 28 AWG
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 0.5W
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both connected devices support SFP+ 10GBASE-CR passive DAC cables. This cable is not compatible with SFP (1G) ports. Always handle with care to avoid damage to connectors.
