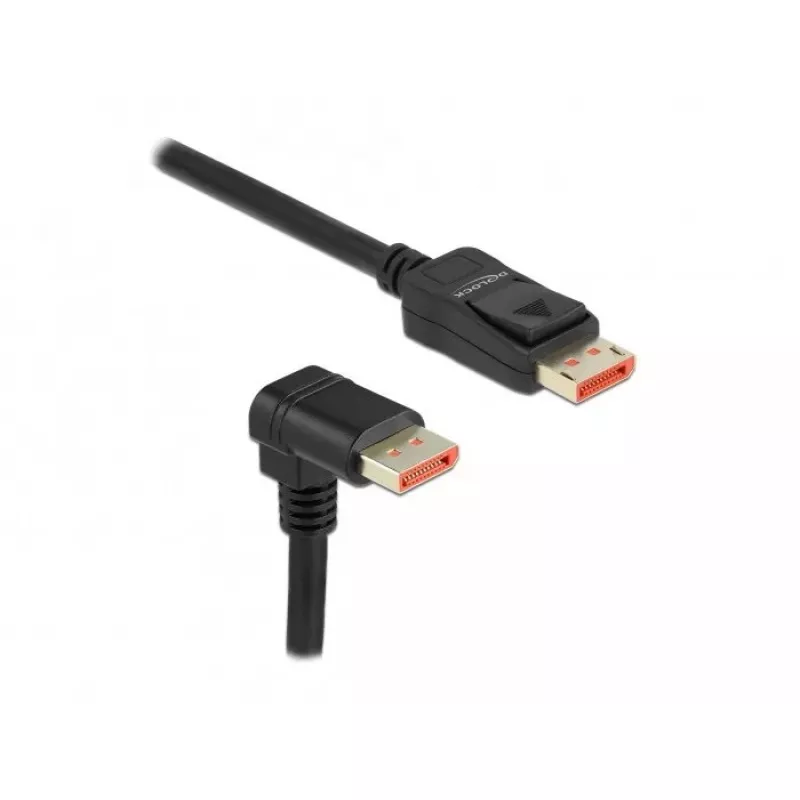

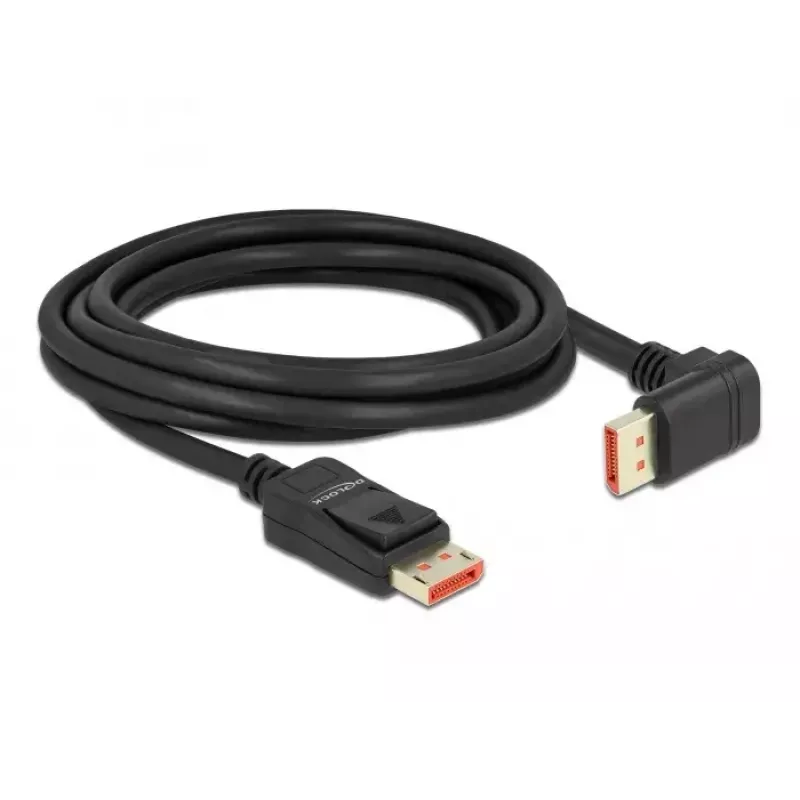

Cabo DisplayPort DeLOCK 87052 8K 60Hz 3 m ficha para ficha 90° para baixo

This DisplayPort cable by DELock with model number 87052 is designed to connect devices with DisplayPort interfaces — for example monitors, projectors or televisions — to a PC or laptop. The cable is 3 m long, has a straight male DisplayPort connector on one end and a 90° downwards angled male DisplayPort connector on the other, and comes in black with a 7 mm diameter for durability and flexibility.

Advantages

The cable supports a maximum bandwidth of 32.4 Gb/s and enables video resolutions up to 8K Ultra HD (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz). Its triple-shielded construction ensures stable signal transmission and reduced interference, while the 90° downwards connector helps with neat cable routing in tight spaces.

Suitable for

• Connecting desktop PCs or laptops to monitors and televisions
• Use with projectors in meeting rooms or classrooms
• Installations where a downwards-angled connector eases cable management behind desks or wall-mounted displays
• High-resolution video editing, content creation and multimedia playback

Key specifications

• Cable length: 3 m
• Connector 1: DisplayPort male (straight)
• Connector 2: DisplayPort male (90° downwards)
• Maximum bandwidth: 32.4 Gb/s
• Supported resolutions: up to 8K (7680 x 4320 @ 60 Hz), 5K (5120 x 2880 @ 120 Hz), 4K (3840 x 2160 @ 240 Hz)
• Cable diameter: 7 mm
• Colour: Black

How to use

Connect the straight DisplayPort male connector to the DisplayPort output of your PC or graphics card and plug the 90° downwards DisplayPort male connector into the DisplayPort input of the monitor, projector or television. Ensure both devices are powered off when making the connection, then power them on and select the DisplayPort input on the display device if necessary. Route the cable so the angled connector faces the available clearance to avoid strain.

Recommendations

For optimal performance, use the cable for direct device-to-device connections without long extension runs or passive splitters. Keep the cable away from strong electromagnetic sources and avoid sharp bends at the connectors to maintain signal integrity.
