Cabo DisplayPort para HDMI Helos 288453, 1,0 m, vídeo digital

Helos Premium DisplayPort to HDMI cable (model 288453) is a 1.0 m digital video cable for connecting a DisplayPort source to an HDMI display. The cable supports up to 4K (3840 x 2160) at 30 Hz and is suitable for transmitting video from laptops, desktops or graphics cards to TVs, monitors or projectors. The black cable features gold-plated connectors and an aluminium connector housing with a thermoplastic elastomer (TPE) jacket.

Advantages

The cable provides a single-cable solution to connect DisplayPort-equipped devices to HDMI displays, supporting 4K resolution at 30 Hz and compliance with DisplayPort 1.1. Gold-plated, coated plugs and an aluminium connector housing improve contact reliability and mechanical durability, while the 1.0 m length is convenient for desktop and short-distance setups.

Suitable for

• Connecting a laptop or desktop DisplayPort output to an HDMI monitor or TV
• Presentations and meeting-room setups with HDMI projectors or displays
• Multimedia playback and screen mirroring at up to 4K@30Hz
• Short-range AV connections where a 1.0 m cable length is sufficient

Key specifications

• Connector A: 20-pin DisplayPort (male)
• Connector B: 19-pin HDMI Type A (male)
• Length: 1.0 m
• Maximum output resolution: 3840 x 2160 @ 30 Hz
• Supported interfaces: DisplayPort to HDMI

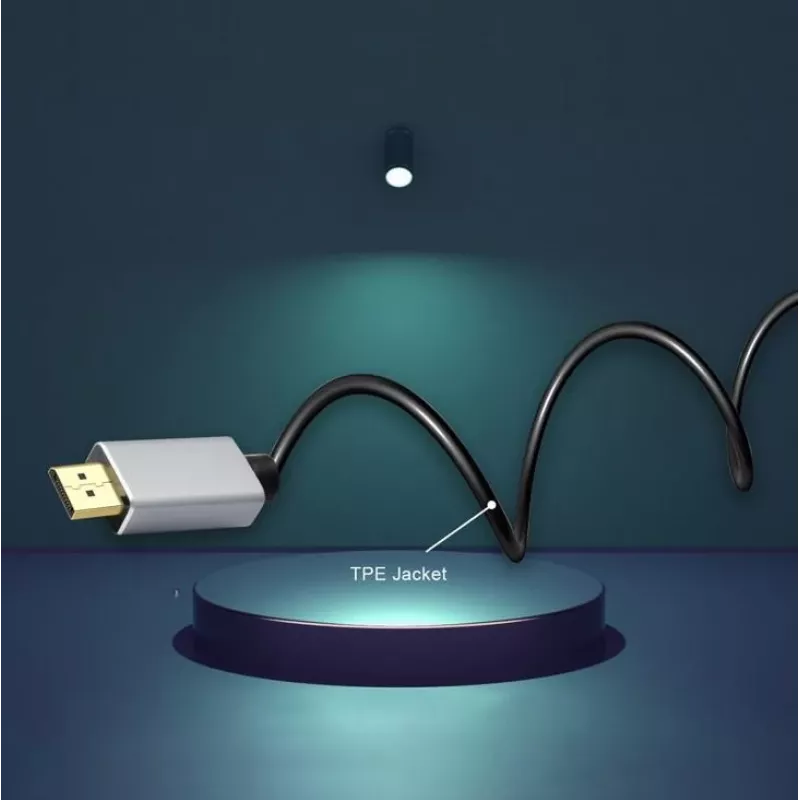

• Cable jacket: Thermoplastic Elastomer (TPE)
• Plugs: gold-plated
• Connector housing: aluminium
• Standard compliance: DisplayPort 1.1

How to use

Insert the DisplayPort (male) connector into the DisplayPort output of your source device and connect the HDMI Type A (male) connector to the HDMI input of your display. Power on both devices and select the appropriate HDMI input on the display. Configure display settings on the source device to extend or mirror the screen and set the desired resolution up to 3840 x 2160 at 30 Hz.

Recommendations

For reliable 4K@30Hz output, use the cable for short-distance connections (recommended up to 1 m) and ensure source device drivers and display firmware are up to date. Avoid sharp bends and excessive pulling on the cable to preserve connector integrity.
