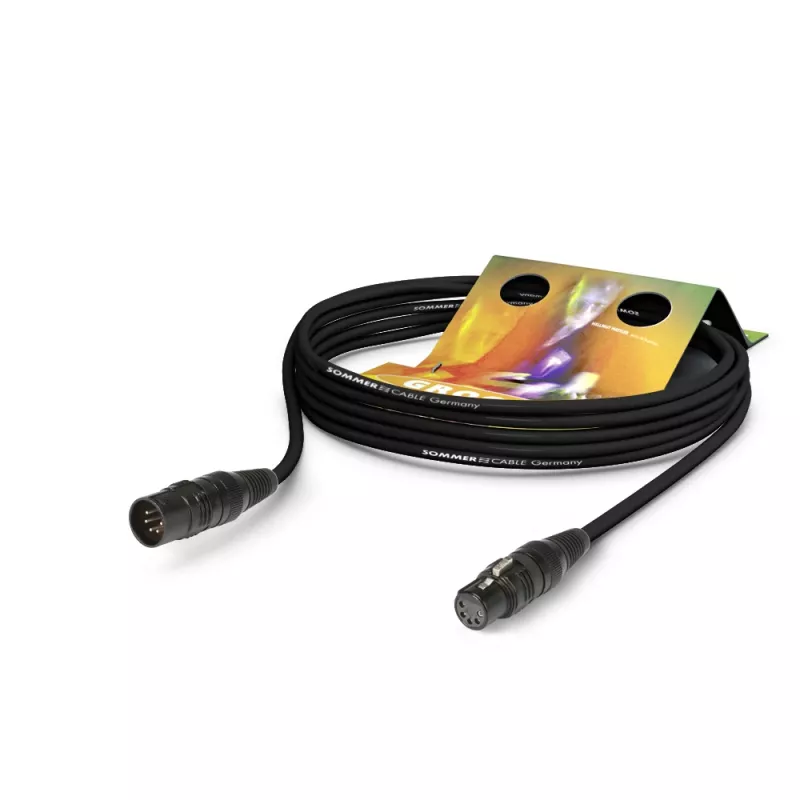

Cabo DMX512 Sommer Cable Binary 434, 4 x 0,34 mm², ficha XLR 5 pinos macho para conector XLR 5 pinos fêmea, HICON, preto, 2,5 m (B4GSU0250-SW)

The Sommer Cable DMX512 Binary 434 4 x² is a high-quality, pre-assembled DMX512 patch cable designed for professional lighting control and digital audio applications. Featuring HICON XLR 3-pin connectors, this cable ensures reliable signal transmission with minimal interference. The double shielding and oxygen-free copper conductors provide excellent protection against electromagnetic interference, making it ideal for demanding stage, studio, and installation environments.

Advantages

This cable offers superior signal integrity thanks to its 110 Ohm impedance and double shielding (braided copper + AL/PT foil). The oxygen-free copper conductors ensure low attenuation and high conductivity, while the robust PVC jacket provides durability and flexibility. The HICON connectors guarantee a secure and long-lasting connection.

Suitable for

• DMX512 lighting control systems
• AES/EBU digital audio transmission
• Professional stage and studio setups
• Permanent installations in theaters, clubs, and event venues

Key specifications

• Cable type: DMX512 Cable
• Connector A: HICON XLR 3-pin Male
• Connector B: HICON XLR 3-pin Female
• Cable length: 1.0 m
• Conductor configuration: 2 x 2 x 0.22 mm² (2 twisted pairs)
• Conductor material: Oxygen-Free Copper (OFC)
• Nominal impedance: 110 Ohm
• Shielding: Double Shielded (Braided Copper + AL/PT Foil)
• Jacket material: PVC
• Jacket color: Black
• Outer diameter: 6.5 mm
• Temperature range: -30°C to +70°C
• Capacitance (cond./cond.): 45 pF/m
• Attenuation (1 MHz): 2.5 dB/100m

Recommendations

For optimal performance in DMX512 networks, use this cable with other Sommer Cable products and ensure proper termination. Ideal for connecting lighting fixtures, dimmers, and controllers.
