Cabo DSIT DANICOM CAT6 UTP 305m condutor sólido - LSZH (B2ca) - DC-UTP6-305S-B2CA

When network installers pull horizontal runs in office towers, schools, and hospitals, they need a cable that won’t turn a small fault into a smoke hazard. This DSIT DANICOM CAT6 UTP cable delivers a full 305-meter pull-box of solid bare copper, wrapped in a low-smoke zero-halogen jacket that meets the strict B2ca CPR classification. It handles Gigabit Ethernet and 250 MHz bandwidth without shielded complexity, making it a go-to for structured cabling where fire safety codes bite.

Key specifications

• Category 6 performance, unshielded twisted pair (UTP) construction
• Solid bare copper conductors, 23 AWG, 4 pairs
• 305 m (1000 ft) pull-box for convenient installation
• LSZH (Low Smoke Zero Halogen) outer jacket, CPR class B2ca
• Supports 1000BASE-T Gigabit Ethernet up to 250 MHz
• 100 Ohm impedance, compliant with ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Indoor-rated for data networking in commercial and residential spaces

Why choose it

The B2ca fire rating and LSZH jacket make this cable a responsible choice for public buildings, schools, and hospitals where smoke emission and toxic fumes are critical concerns. Solid copper conductors ensure stable, long-distance signal integrity, while the pull-box packaging speeds up deployment on large projects. It is a cost-effective way to future-proof horizontal cabling without moving to shielded systems.

Ideal use cases

• Structured cabling for office LANs and data centres
• Horizontal runs from patch panels to workstations
• Installations in risers, conduits, or cable trays

Good to know

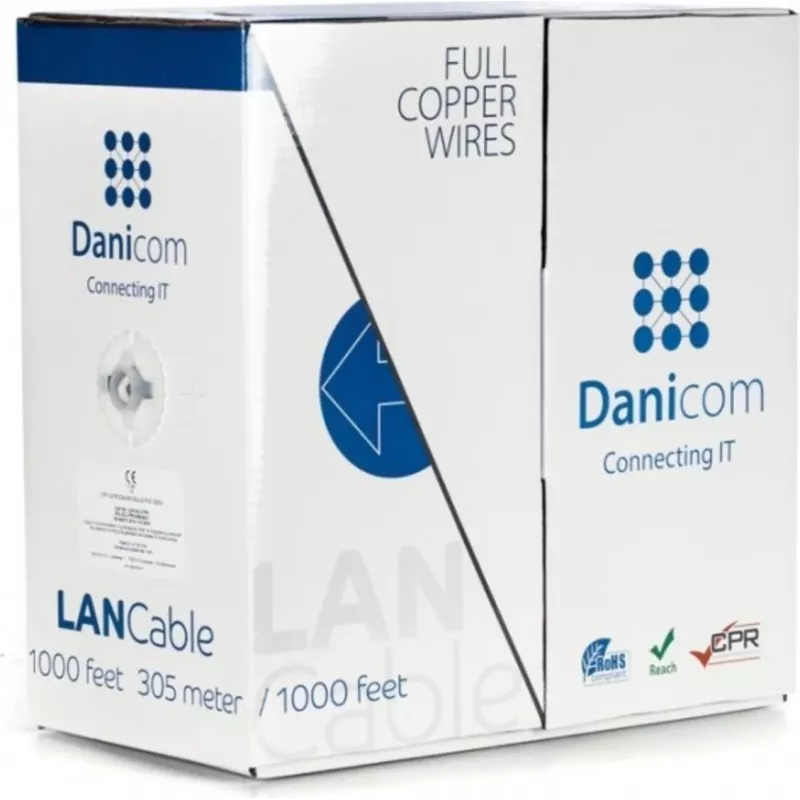

This cable is supplied in a convenient pull-box, making it easy to dispense during installation. It is designed for indoor use only and should not be exposed to outdoor elements. The LSZH jacket reduces the amount of toxic and corrosive gases emitted during combustion, enhancing safety in occupied buildings.
