Cabo DSIT DANICOM CAT6A 100% cobre U/UTP 500m condutor maciço - LSZH (Cca)

Where copper purity and fire safety are non-negotiable, this DSIT DANICOM CAT6A U/UTP cable stands apart from typical CCA alternatives. Its 500-metre reel of solid-core, 100% bare copper conductors maintains full signal integrity over long runs and supports Power over Ethernet up to 100W without thermal degradation. The Cca fire rating and LSZH sheath make it suitable for public buildings, offices, and industrial environments where toxic smoke and corrosive gases must be minimised.

Highlights

• 100% bare copper conductors (AWG 23) for superior conductivity and PoE++ support
• CAT6A performance: 10GBASE-T up to 100 m, bandwidth to 500 MHz
• U/UTP unshielded design for easy termination and reduced crosstalk in balanced installations
• LSZH jacket with Euroclass Cca fire performance (EN 50575)

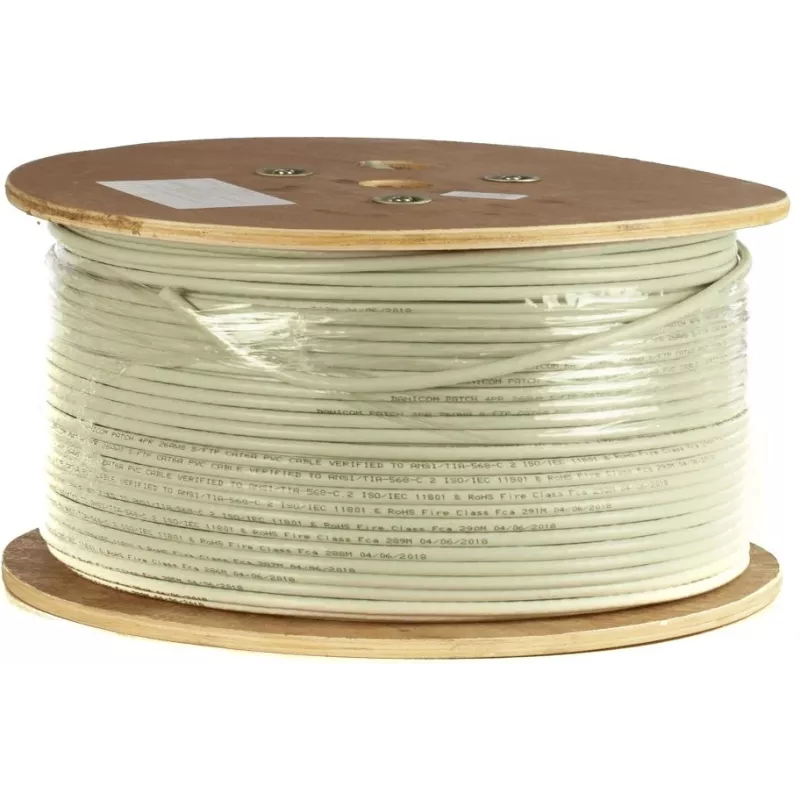

• 500 m pull box for efficient cabling with fewer splices

In daily use

Installers will appreciate the solid-core conductors that hold their shape in patch panels and keystone jacks, while the sequential metre marking on the jacket speeds up cable management and reduces waste. The reel packaging allows smooth pulling from the box, and the LSZH material stays flexible even in cooler temperatures. Whether wiring a new office floor, a school, or a hospital wing, this cable provides a future-proof backbone for high-speed data and power-hungry devices like IP cameras, wireless access points, and LED lighting.

Full specifications

• Cable Category: CAT6A
• Shielding Type: U/UTP (Unshielded / Unshielded Twisted Pair)
• Conductor Material: 100% Copper
• Conductor Type: Solid Core
• Length: 500 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fire Performance Class: Cca (EN 50575)
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Number of Pairs: 4
• Wire Gauge: AWG 23
• Application: Network Installation Cable
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Impedance: 100 Ohm
• Packaging: Cable Drum / Reel

Final note

For high-density PoE++ deployments in safety-critical environments, this cable delivers certified performance without compromise.
