Cabo Emiter Net UTP (U/UTP) Cat.5e 350MHz Condutor Sólido PVC Cinzento 305m

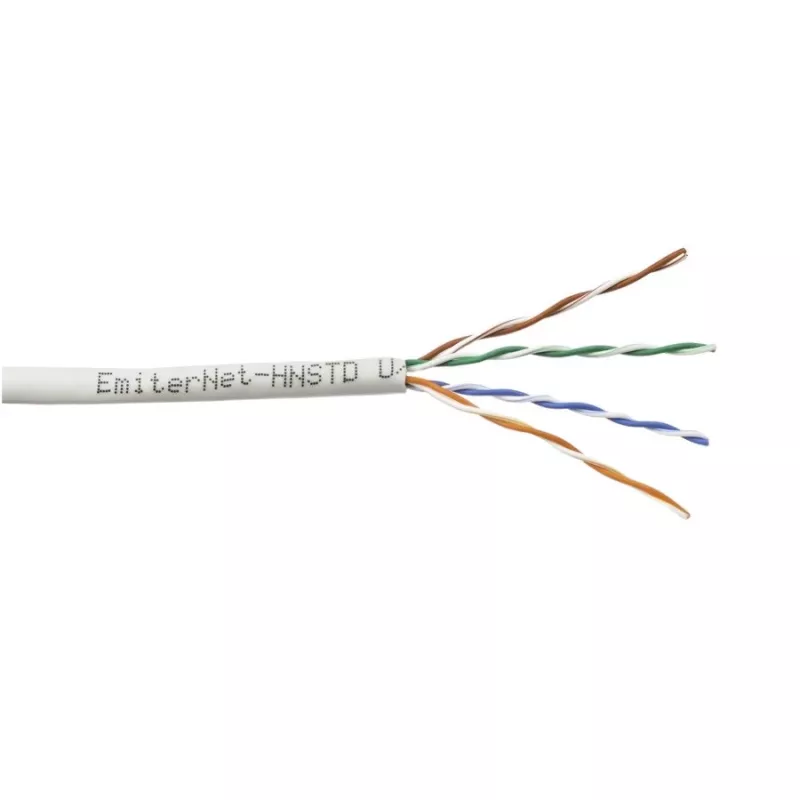

The Kabel Emiter Net UTP (U/UTP) Cat.5e cable is a high-performance, unshielded twisted pair cable designed for reliable Gigabit Ethernet networks. With a 350 MHz frequency rating and solid pure copper conductors, it ensures excellent signal integrity and minimal crosstalk. The grey PVC jacket provides durability and flexibility for indoor installations.

Advantages

This cable offers superior performance for Cat.5e applications, supporting data rates up to 1000 Mbps. The solid core design ensures stable connections and is ideal for permanent installations. The easy-pull box packaging simplifies deployment, reducing installation time.

Suitable for

• Horizontal cabling in local area networks (LAN)
• Indoor structured cabling systems
• Gigabit Ethernet applications
• Patch panel and wall outlet connections

Key specifications

• Cable Type: U/UTP (Unshielded Twisted Pair)
• Category: Cat.5e
• Frequency: 350 MHz
• Conductor: Solid Core, 24 AWG, Pure Copper
• Number of Pairs: 4
• Jacket Material: PVC
• Jacket Color: Grey
• Length: 305 meters (1000 feet)
• Impedance: 100 Ohm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Operating Temperature: -20°C to +60°C
• Outer Diameter: 5.0 - 5.2 mm

Recommendations

For optimal performance, ensure proper termination with Cat.5e rated connectors and follow TIA/EIA wiring standards. This cable is suitable for use in residential, commercial, and industrial environments where reliable network connectivity is required.
