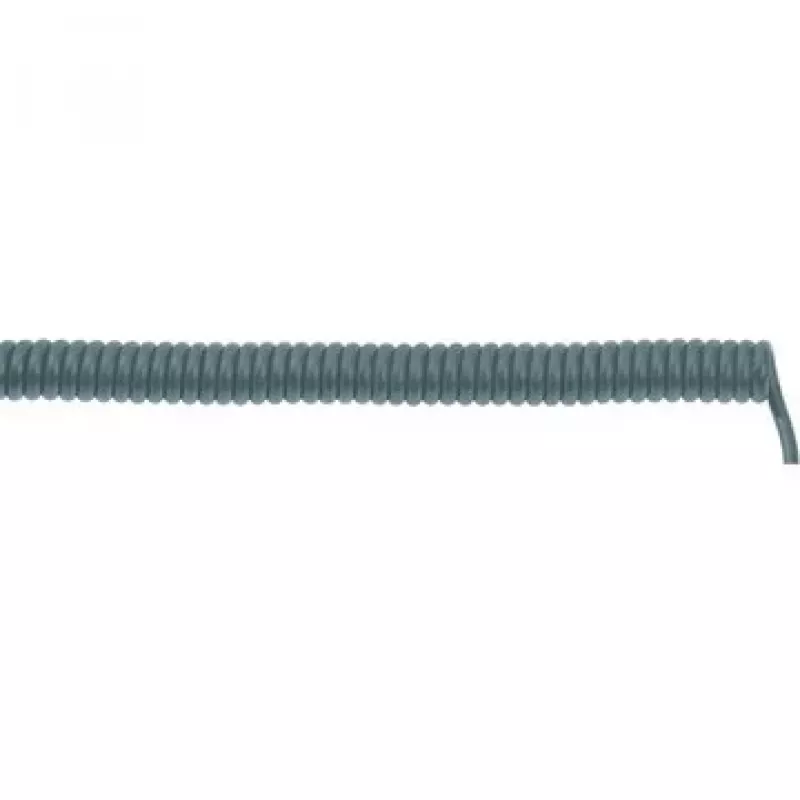

Cabo espiral LAPP UNITRONIC SPIRAL LiF2Y11Y, 4 x 0,25 mm², 200 mm recolhido / 800 mm estendido, cinzento 73220351

Flexible spiral cable with 4 cores of 0.25 mm², retracting to 200 mm and extending to 800 mm. The polyurethane outer sheath withstands continuous flexing and harsh environments.

Overview

The LAPP UNITRONIC SPIRAL LiF2Y11Y is a spiral cable designed for applications requiring frequent extension and retraction. Its 4-core design with 0.25 mm² conductors is suitable for signal and control tasks in automation, robotics, and machinery. The cable's spiral construction ensures tidy cable management and prevents tangling.

What stands out

• Retracted length: 200 mm; extended length: 800 mm
• 4 cores, 0.25 mm² cross-section, fine-stranded bare copper
• Outer sheath: PUR (polyurethane) for high flexibility and abrasion resistance
• Voltage rating: 250 V
• Temperature range: -30 °C to +70 °C (flexible), -40 °C to +80 °C (fixed)

Technical details

• Conductor material: fine-stranded bare copper, Class 5 according to IEC 60228 / VDE 0295
• Core insulation: TPE-E (thermoplastic elastomer-ether)
• Outer diameter: 4.8 mm
• Minimum bending radius (flexible): 10 x outer diameter
• Test voltage: 1500 V
• Flame retardancy: according to IEC 60332-1-2

Our verdict

A reliable spiral cable for dynamic applications, offering good flexibility and durability in a compact form factor.
