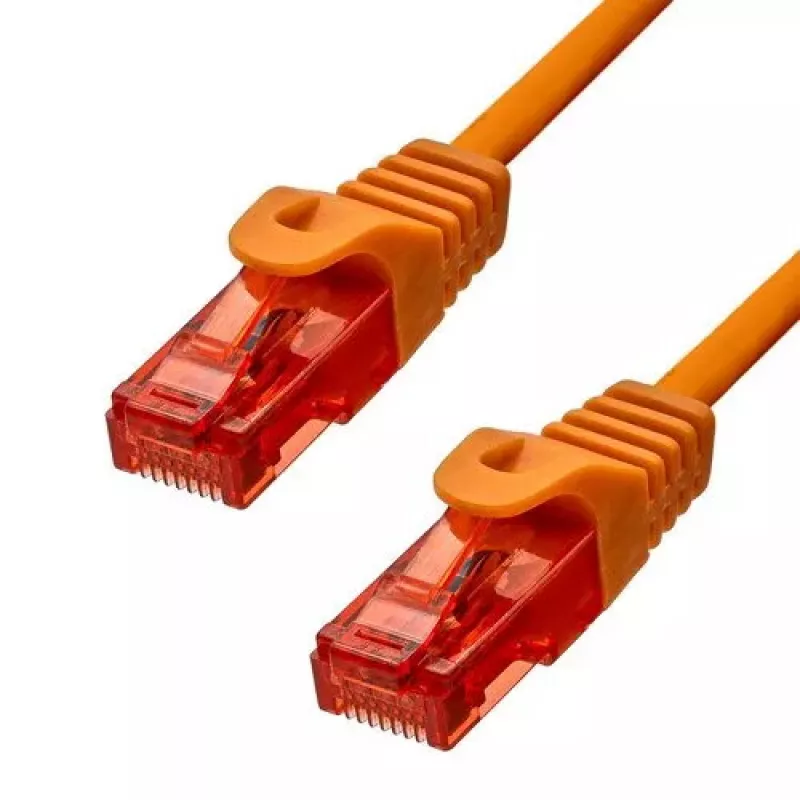

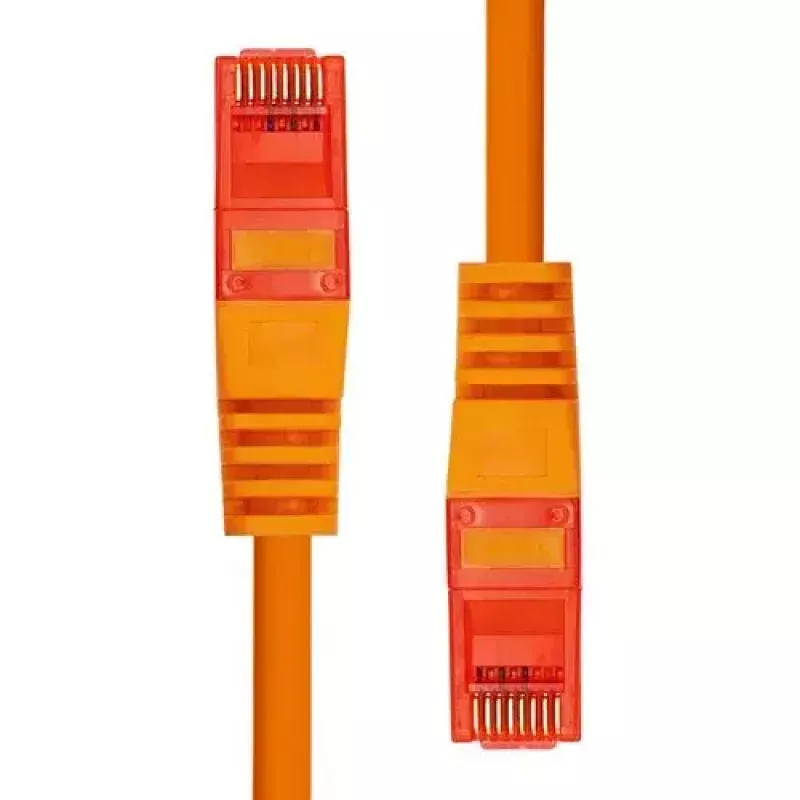

Cabo Ethernet ProXtend CAT6 RJ-45 U/UTP 20M laranja

The ProXtend CAT6 U/UTP CU LSZH Ethernet Cable (20 m, orange) provides reliable wired network connectivity with RJ-45 connectors and support for 10/100/1000Base-T(X). Constructed with 99.9% pure copper strands (24 AWG), the cable delivers consistent gigabit performance and is compatible with PoE+ power delivery. The outer jacket is made of LSZH (Low Smoke Zero Halogen) material to reduce smoke and toxic gases in case of fire, and the connectors feature 50µ"U gold plating for improved contact durability and transmission quality.

Advantages

The cable's 24 AWG copper conductors and U/UTP design minimize signal loss and support up to 1 Gbit/s data rates. LSZH jacketing lowers smoke and hazardous emissions in emergency situations. Strain relief and a snagless latch protector increase mechanical durability during installation and daily use. Gold-plated (50µ"U) RJ-45 contacts enhance corrosion resistance and offer higher throughput compared with standard metal-plated connectors.

Suitable for

• Wired home networks and desktop connections
• Office LANs and workstation cabling
• Connecting switches, routers, modems and NAS devices
• Power over Ethernet applications up to PoE+

Key specifications

• Brand: ProXtend
• Model / MPN: 6UTP-20O
• Length: 20 m
• Connector type: RJ-45 — RJ-45
• Cabling: CAT6 U/UTP (unshielded pairs, overall unshielded)
• Conductor: 99.9% copper, 24 AWG
• Plating: 50µ"U gold-plated contacts
• Jacket: LSZH (Low Smoke Zero Halogen)
• Data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• PoE support: PoE+
• Colour: Orange
• EAN: 5714590022650

How to use

Connect one RJ-45 plug to your network device (router, switch or computer) and the other RJ-45 plug to the corresponding port on the second device. Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable to avoid sharp bends, tight kinks or heavy compression to preserve signal quality and mechanical integrity. For PoE installations, confirm that your equipment supports the required PoE+ standard before applying power over the cable.

Recommendations

For optimal performance, avoid running the cable parallel to high-voltage power lines and keep bend radius greater than four times the cable diameter. Replace the cable if the outer jacket is damaged or conductors are exposed. Store unused cable coiled loosely to prevent deformation.
