Cabo HDMI DeLOCK 85467 0,5 m Type-A macho para fêmea preto

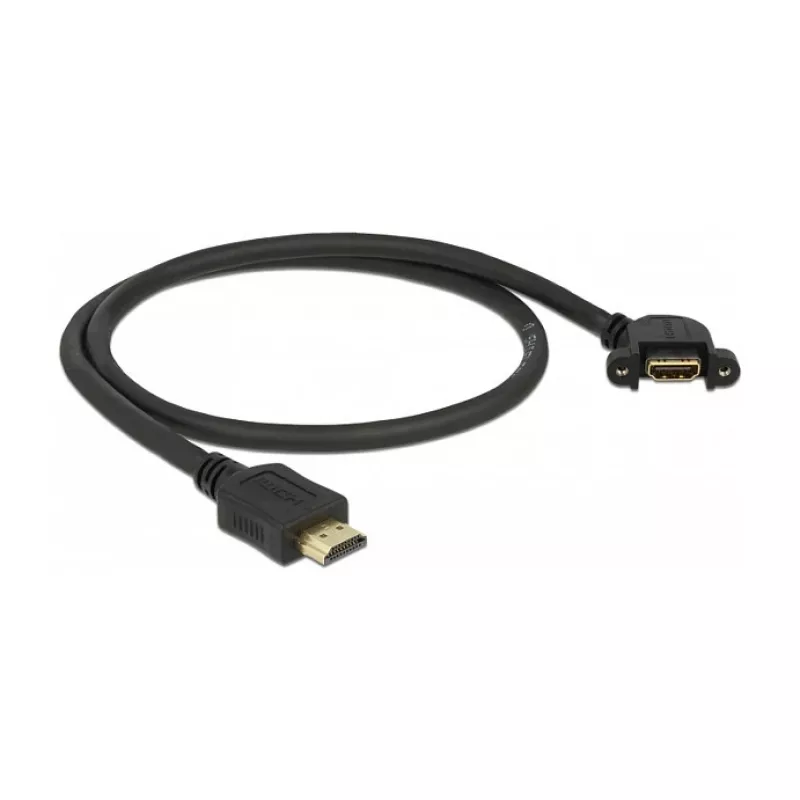

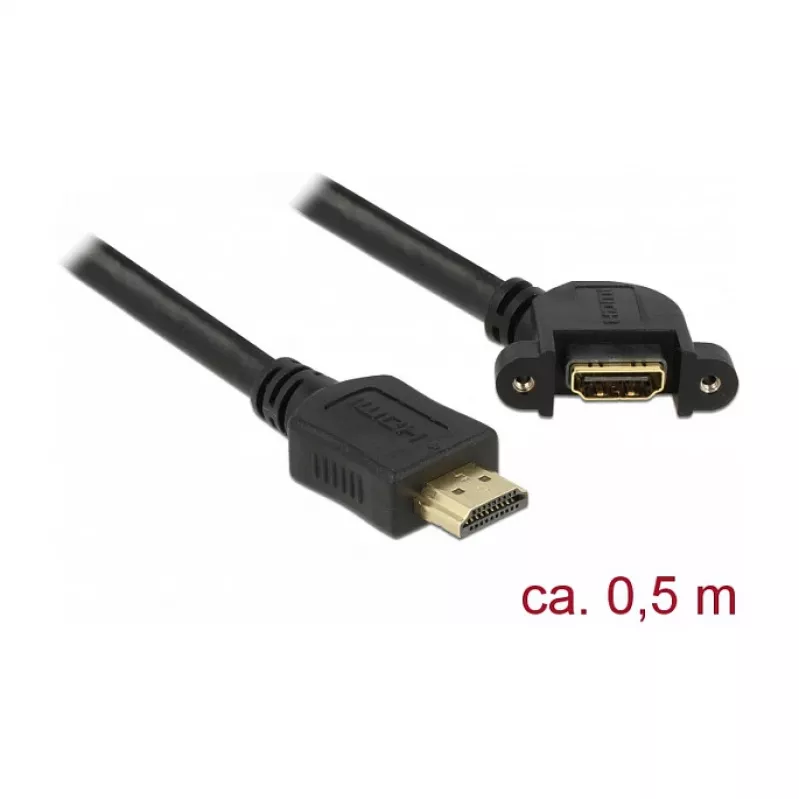

The DeLOCK 85467 HDMI cable is a 0.5 m extension cable with HDMI Type A male to female connectors. The female connector has two mounting screw points so it can be fixed to a slot bracket, cable duct or an enclosure with a matching opening, allowing the HDMI port to be installed in a convenient, accessible position. The cable supports up to 3840 x 2160 resolution with a data rate up to 10.2 Gbit/s and features gold-plated contacts for stable signal transmission.

Advantages

This HDMI cable provides a compact 0.5 m extension with a panel-mountable female connector that can be secured by two screws. It supports 4K resolution (3840 x 2160) and a maximum transfer rate of 10.2 Gbit/s, and the gold-plated contacts help maintain signal integrity. Its black jacket makes it suitable for visible installations while remaining unobtrusive.

Suitable for

• Extending HDMI connections between devices
• Mounting an accessible HDMI port in a PC case, AV cabinet or wall plate
• Connecting displays, TVs, projectors, set-top boxes and media players

Key specifications

• Cable length: 0.5 m
• Connector 1: HDMI Type A (male)
• Connector 2: HDMI Type A (female, panel-mountable with two screw holes)
• Maximum resolution: 3840 x 2160 pixels
• Maximum data rate: 10.2 Gbit/s
• Contacts: gold-plated
• Colour: Black

How to use

Connect the male HDMI plug to the source device or to an existing HDMI cable, and fasten the female connector to a slot bracket, cable duct or enclosure using the two screws through its mounting holes. Ensure the mounted connector is aligned with the enclosure opening so the port is easily reachable. After securing the female connector, plug the display device or receiving HDMI cable into the mounted port.

Recommendations

To ensure reliable 4K transmission, avoid tight bends and excessive tension on the cable. Use the mounting screws provided or suitable M3 screws for a secure attachment; verify that the enclosure opening matches the connector dimensions before installation.
