Cabo HDMI Equip 119425 200m HDMI Type-A macho 2.1 48 Gbit/s

Equip 119425 HDMI Cable 200m is an HDMI 2.1 active optic armored cable with HDMI Type A male connectors and a maximum bandwidth of 48 Gbit/s, designed for long-distance transmission of high-resolution video and multichannel audio. The cable supports up to 8K (7680 x 4320) at 60 Hz and 4K at up to 120 Hz, includes 3D and Audio Return Channel (ARC) support, and features gold-plated connectors to maintain signal integrity over its 200 m length.

Advantages

The armored construction increases mechanical protection and longevity in demanding environments, while active optical technology prevents signal degradation over long runs. High bandwidth (48 Gbit/s) ensures compatibility with the latest HDMI 2.1 features and modern displays, and gold-plated HDMI Type A connectors provide reliable contact and corrosion resistance.

Suitable for

• Long-distance AV installations in homes, halls, and conference rooms
• High-resolution home theater systems requiring 8K@60Hz or 4K@120Hz
• Professional AV setups, digital signage, and broadcast environments

Key specifications

• Model: Equip 119425
• Length: 200 m
• Connector type: HDMI Type A male — both ends
• HDMI version: 2.1
• Maximum bandwidth: 48 Gbit/s
• Supported resolutions: up to 8K (7680 x 4320) @ 60 Hz; 4K up to 120 Hz

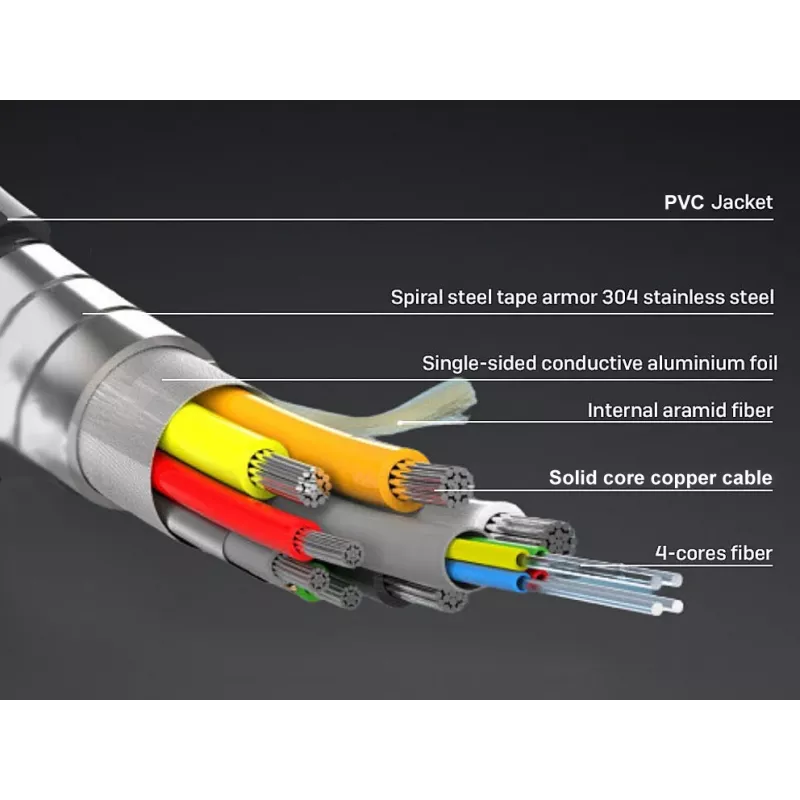

• Features: Active optic cable, armored jacket, 3D support, ARC
• Connectors: Gold-plated
• Brand: EQUIP
• MPN: 119425
• EAN: 4015867241240

How to use

Connect the HDMI Type A male ends to the HDMI output of the source device and the HDMI input of the display or AV receiver. Ensure connectors are fully seated and secured; because this is an active optical cable, avoid excessive bending near the connector ends and follow minimum bend-radius guidelines. For long installations, verify compatibility with connected devices and, if needed, power any inline signal modules according to manufacturer instructions.

Recommendations

Use this HDMI 2.1 active optic armored cable for long runs where copper HDMI cables would suffer signal loss. Maintain a gentle bend radius, protect connector ends from moisture and crushing, and check that both source and display support HDMI 2.1 features to fully utilize 48 Gbit/s bandwidth and high refresh-rate resolutions.
