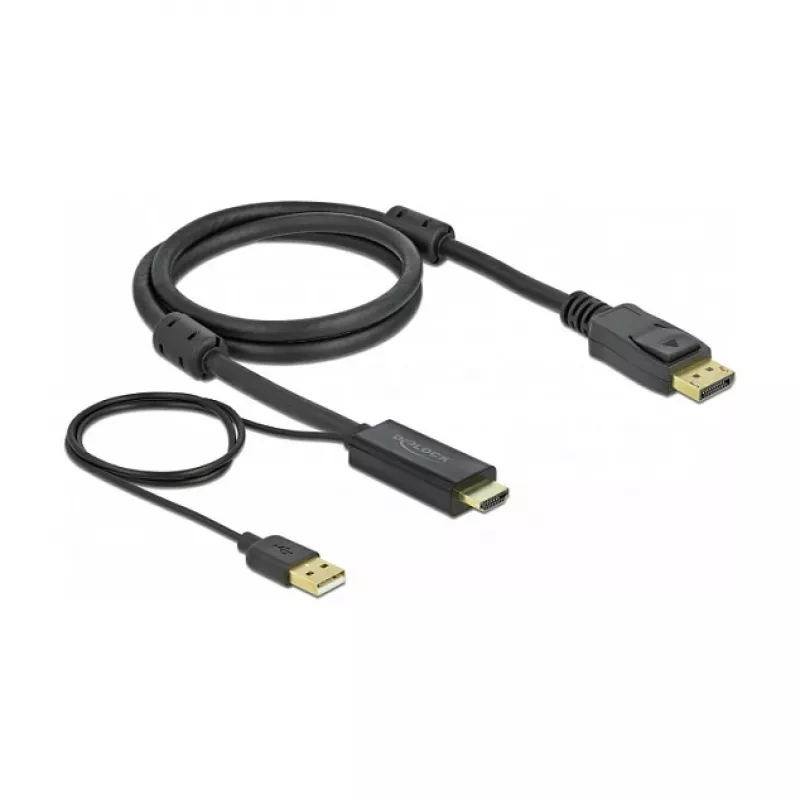

Cabo HDMI para DisplayPort DeLOCK 85963 4K 30 Hz 1 m

The DeLOCK HDMI to DisplayPort cable 85963 allows connection of HDMI devices, such as a PC or media player, to monitors or displays with a DisplayPort input. The cable supports video and audio transmission at resolutions up to 4K (3840 x 2160) at 30 Hz and is 1 m long. It uses an HDMI Type A plug on the source side and a DisplayPort connector on the display side; a USB Type-A plug supplies additional power when required.

Advantages

This cable provides a direct wired connection from HDMI sources to DisplayPort monitors without extra converters when the display accepts a DP input with USB power. It supports up to 4K at 30 Hz for high-resolution video and carries audio together with video. The 1 m length and 7.2 mm cable diameter offer a compact, flexible solution in black finish packaged in a polybag.

Suitable for (tasks / use cases)

• Connecting a laptop, desktop PC or media player with HDMI output to a DisplayPort monitor
• Transmitting 4K video at 30 Hz to displays that accept DP input with external USB power
• Setups requiring combined video and audio over a single cable

Key specifications

• Length: 1 m
• Connector 1: HDMI Type A (Standard)
• Connector 2: DisplayPort + USB Type-A (power)
• Supported resolution: up to 4K (3840 x 2160) at 30 Hz
• Cable diameter: 7.2 mm
• Colour: Black
• Packaging: Polybag

How to use

Connect the HDMI Type A plug to the HDMI output of your source device and insert the DisplayPort connector into the monitor's DisplayPort input. If the monitor requires external power for the conversion, plug the USB Type-A connector into an available USB port on the source device or a USB power adapter. After connections are made, select the correct input on the monitor and configure the source device's display settings if necessary.

Recommendations

For stable 4K/30 Hz output, ensure the source device and monitor support the specified resolution and that the USB power connector is attached when the display requires external power. Avoid sharp bends and excessive pulling on the cable to prolong its service life.
