Cabo InfiniBand/fibra ótica Microconnect FIB412001 1 m LC ST azul

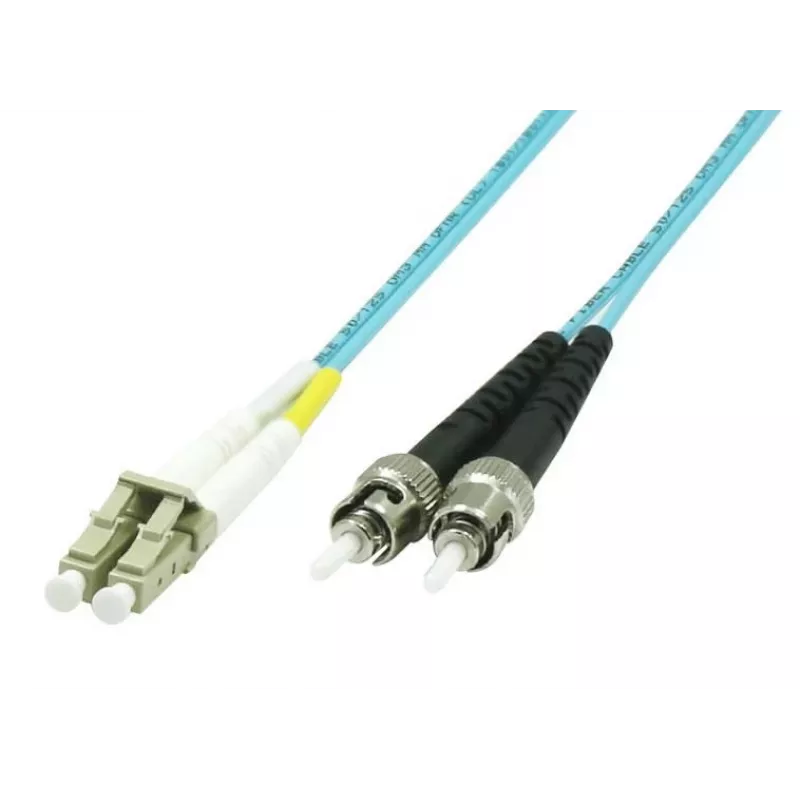

The Microconnect FIB412001 is a 1 m OM3 multimode fibre optic patch cable with LC and ST connectors and a 50/125 µm core/cladding diameter. The cable is bend-insensitive and uses LSZH jacket material, making it suitable for high-speed data transmission such as 10G, 40G and 100G Ethernet and InfiniBand links. The blue 1 m lead provides a compact, durable connection for rack and equipment interconnects.

Advantages

This OM3 50/125 µm multimode cable offers reduced attenuation under bending and twisting compared with standard multimode fibres, improving reliability in confined routing and patch panel installations. The use of an LSZH jacket meets common safety standards (IEC, EIA/TIA, Telcordia) and lowers smoke and toxic emissions in case of fire. The combination of LC and ST connectors provides flexible compatibility with a wide range of transceivers and legacy equipment.

Suitable for

• 10G SR and 10G LRM links
• SFP+ transceivers and InfiniBand connections
• 40G and 100G multimode Ethernet trunking
• Patch panel to equipment connections in data centres and server rooms

Key specifications

• Length: 1 m
• Core / cladding: 50/125 µm (OM3)
• Connectors: LC to ST
• Jacket: LSZH
• Colour: Blue
• Weight: 0.016 kg
• Brand / MPN: MicroConnect / FIB412001
• EAN: 5704327694137

How to use

Inspect connectors and ports for dust before mating. Align the LC connector with the corresponding LC port and insert until it latches; insert the ST connector into the ST port and secure the bayonet coupling. Route the cable without sharp bends and avoid placing heavy objects on the cable. For best performance, keep patch cord lengths appropriate for the link budget and follow equipment manufacturer guidance for connector cleaning and handling.

Recommendations

The cable is recommended for short-range multimode applications up to the reach supported by OM3 standards (for example 10G over typical distances used in data centres). Use LSZH cabling in enclosed public or commercial spaces where reduced smoke and toxicity are required, and replace or clean connectors if signal loss increases.
