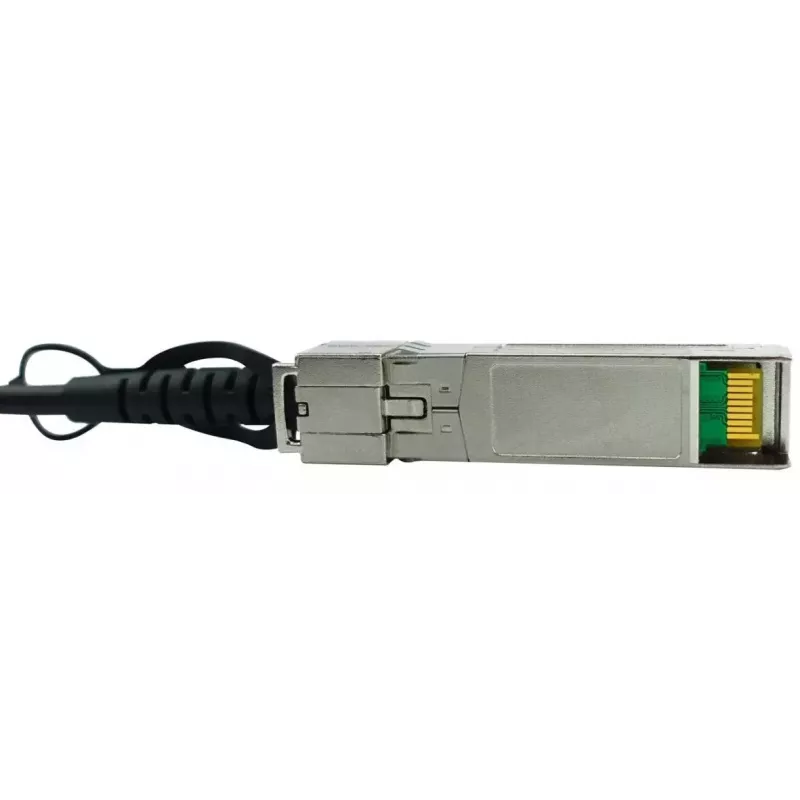

Cabo InfiniBand/fibra ótica SFP+ BlueOptics PAN-SFP-PLUS-CU-5M-BL 5 m macho/macho

The BlueOptics PAN-SFP-PLUS-CU-5M-BL is a 5-metre SFP+ direct attach cable (DAC) designed for short-distance high-speed connections in rack and adjacent-rack environments. This passive twinax copper cable provides SFP+ to SFP+ male connectors and supports 10G data rates for Ethernet, FCoE, Fibre Channel and InfiniBand applications when used with hardware that accepts passive 10GBase-CR DACs. The cable is MSA-compliant and intended for linking switches, routers, storage systems and other network devices that officially support SFP+ DAC modules.

Advantages

The cable offers low latency and low power consumption typical of passive twinax DACs, making it suitable for dense rack deployments where energy efficiency and minimal signal delay are important. Because it uses high-quality components and follows established MSA standards, the design aims for reliable operation and a long service life in professional network environments. The fixed 5-metre length simplifies planning for connections between hardware in the same or adjacent racks.

Suitable for

• Short-reach 10G links between switches and routers within and between adjacent racks
• Direct connections to storage arrays and networked storage systems
• Server-to-switch connections in data centre and rack installations
• Applications using Ethernet, FCoE, Fibre Channel or InfiniBand protocols at 10 Gbps

Key specifications

• Connector type: SFP+ male to SFP+ male
• Length: 5 metres
• Media: passive twinax copper (direct attach cable)
• Supported data rate: up to 10 Gbps
• Wire gauge: 24 AWG
• MSA-compliant SFP+ form factor
• Typical applications: Ethernet, FCoE, Fibre Channel, InfiniBand

How to use

Install the cable by inserting each SFP+ connector into the corresponding SFP+ port on the devices to be linked, ensuring correct orientation and a secure latch. Use with hardware that explicitly supports passive 10GBase-CR direct attach cables. No external power or configuration is required for the cable itself; any required link configuration or protocol settings must be handled on the connected devices according to vendor documentation. For reliable operation, verify compatibility with the network equipment and confirm that the platform supports passive DAC modules.

Recommendations

Route the cable to avoid sharp bends or tight cable bundles; observe manufacturer minimum bend radius. Use the 5-metre length for connections within racks or to adjacent racks to minimize signal degradation. Confirm device compatibility and firmware recommendations before deployment, and consider requesting a sample or performing a compatibility test in your environment before large-scale installation.
