Cabo ótico ativo ACT 15 m HDMI Premium 4K v2.0 ficha HDMI-A – ficha HDMI-A

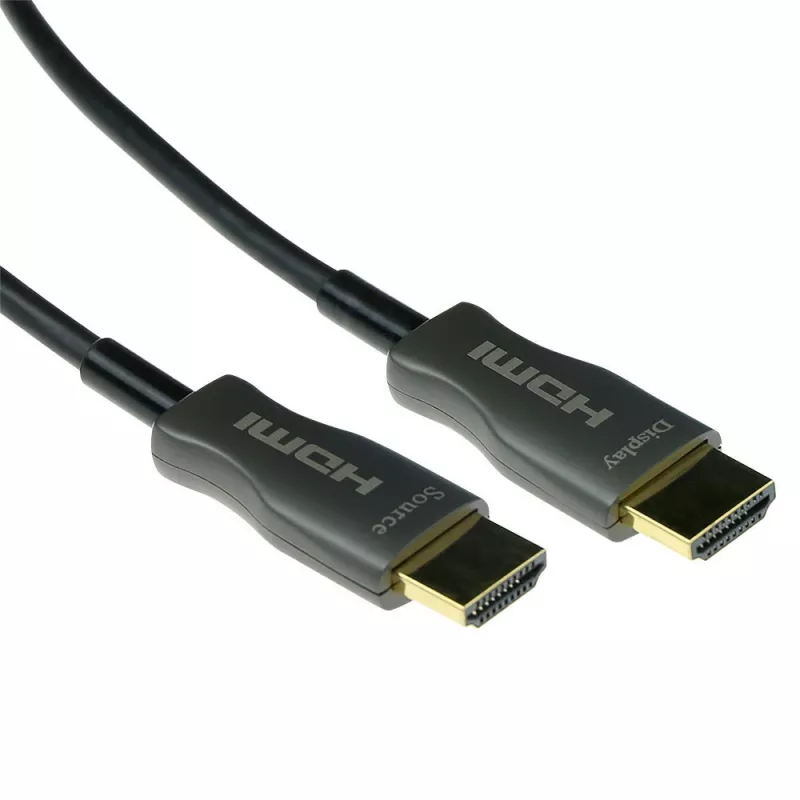

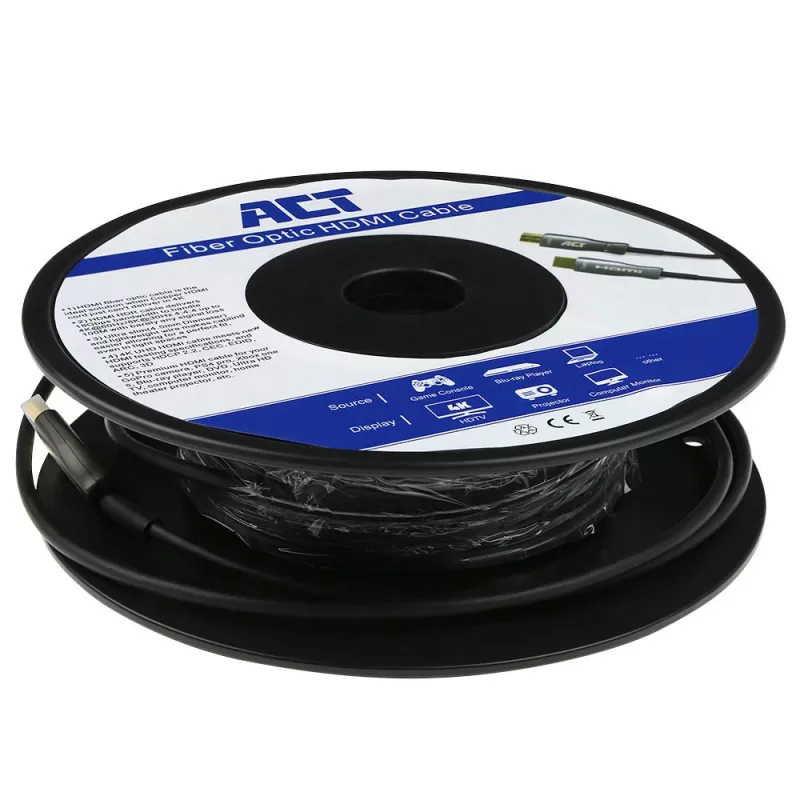

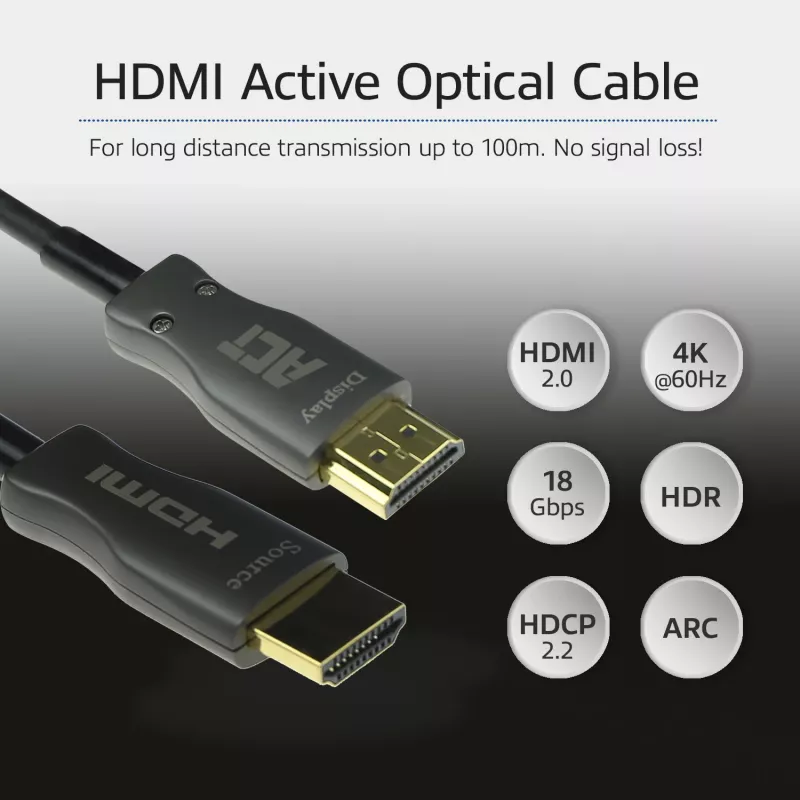

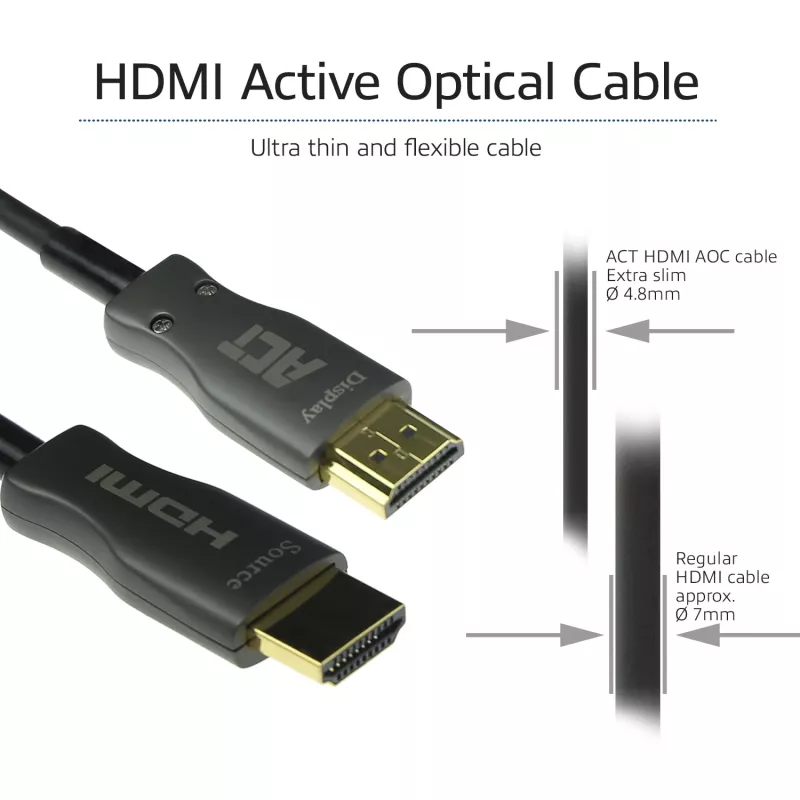

The ACT 15 meters HDMI Premium 4K Active Optical Cable v2.0 is a 15 m HDMI AOC designed for long-distance connections without data loss. It features HDMI Type A male connectors on both ends, an 18 Gbit/s bandwidth and supports 4K@60Hz resolution, 3D video and ARC. The cable combines copper and optical fiber construction with Kevlar mechanical protection, aluminium foil shielding and a slim 4.8 mm diameter. It is supplied on a spool for easy installation and is available in lengths up to 100 meters.

Advantages

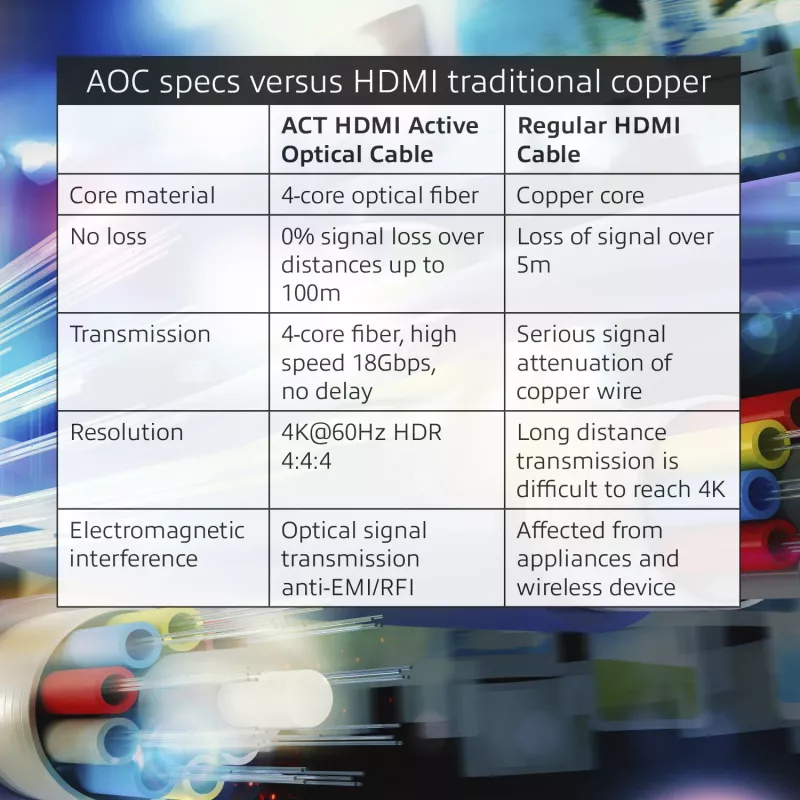

This active optical cable maintains signal integrity over long distances up to 100 m while keeping a compact, flexible form factor. The 18 Gbit/s bandwidth supports 4K@60Hz in multiple chroma formats and the cable is compatible with HDMI versions including 2.0 and earlier. Mechanical Kevlar protection and aluminium foil shielding improve durability and interference resistance, and the spool delivery simplifies handling and installation.

Suitable for

Key specifications

How to use

Connect one HDMI Type A male end to the HDMI output of the source device (for example a Blu-ray player, media player or PC) and the other HDMI Type A male end to the HDMI input of the display device (TV, monitor or projector). Ensure both devices are powered on and set the display to the correct HDMI input. For ARC functionality, connect to the HDMI ARC port on the TV and enable ARC in both devices' audio settings if required.

Recommendations

For optimal performance avoid sharp bends and excessive pulling; keep the cable within its minimum bend radius and secure the spool during installation. When using lengths beyond 15 m, verify compatibility of connected devices with long AOC runs and ensure firmware/HDMI settings (HDCP, EDID, ARC) are up to date.
