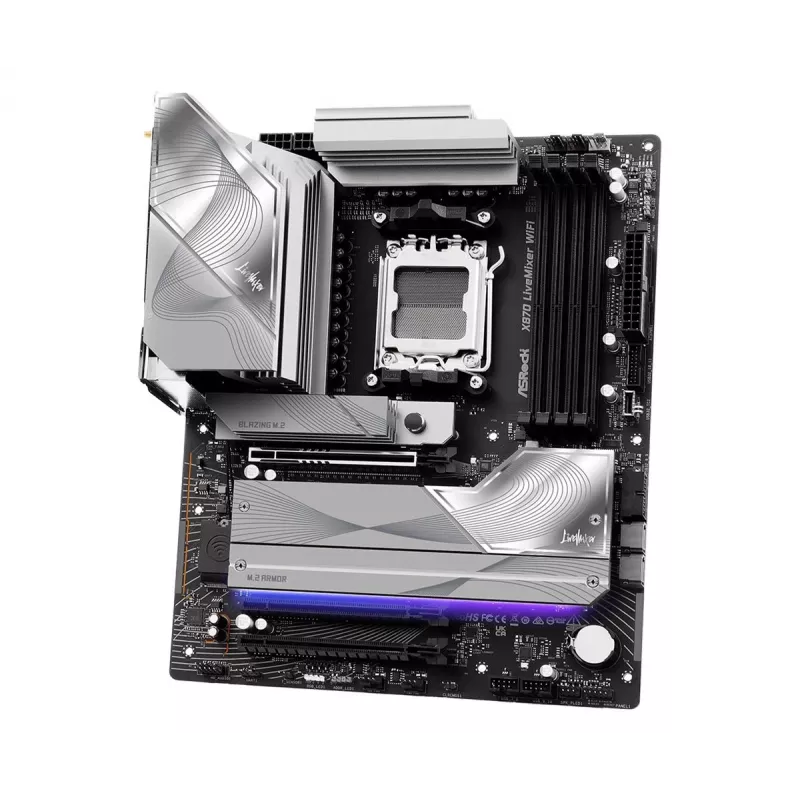

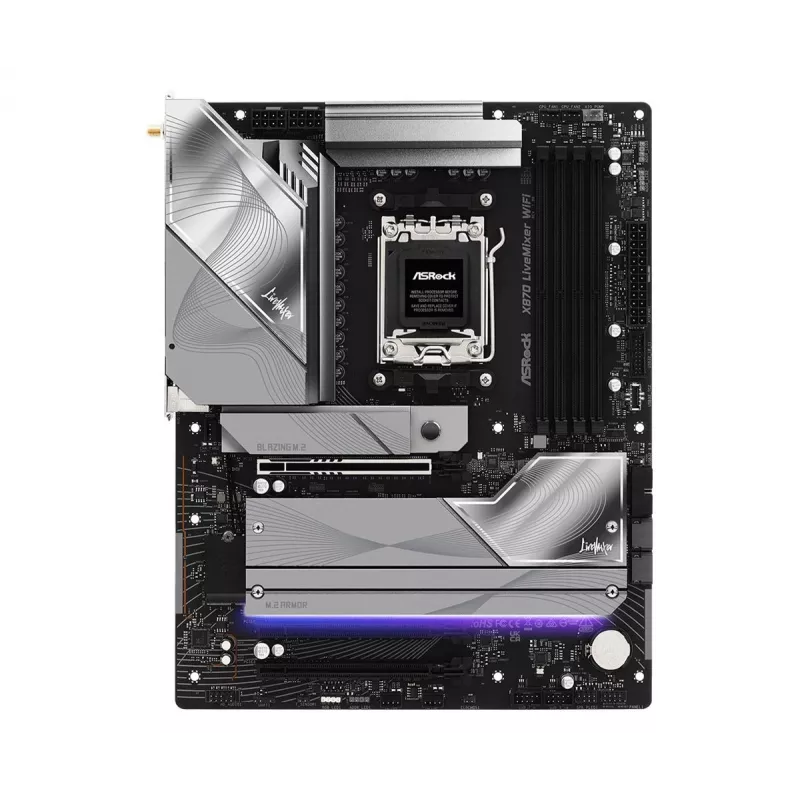

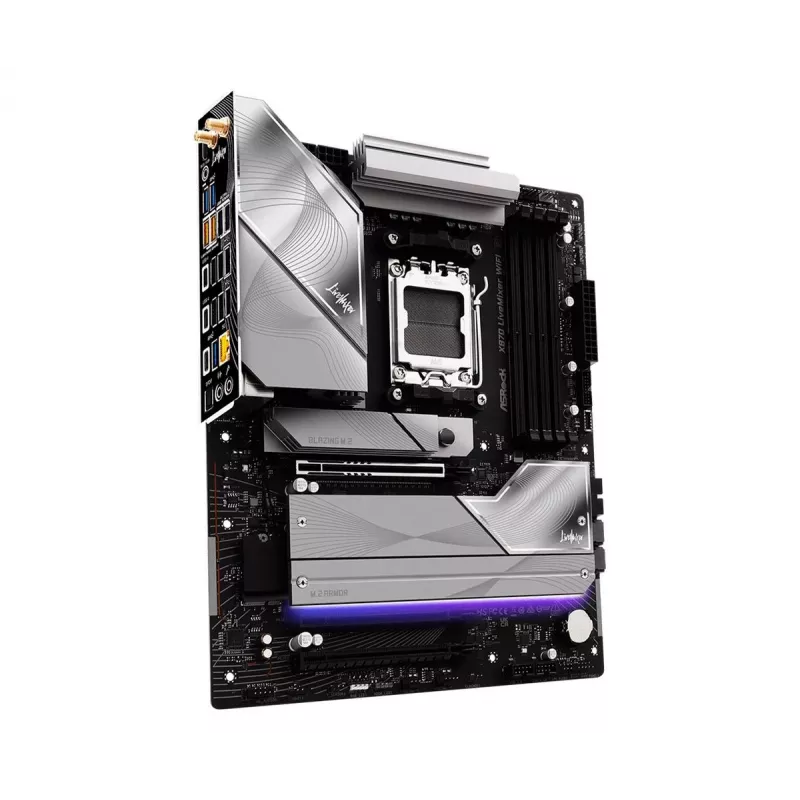

Motherboard ASROCK X870 (Socket AM5, ATX, DDR5, 4 slots de memória, X870LIVEMIXERWIFI)

ASRock X870 LiveMixer WiFi is an ATX motherboard for Socket AM5 that supports AMD Ryzen 7000, 8000 and 9000 series processors. Designed for content creators and streamers, it offers extensive connectivity including Wi‑Fi 7, Realtek 5GbE LAN, multiple USB Type‑C ports and abundant M.2/SATA storage options. The board supports up to 256 GB DDR5 memory across four DIMM slots and provides PCIe 5.0 for a high‑performance GPU slot.

Advantages

The X870 LiveMixer WiFi combines a robust 16+2+1 power phase design with 80A Dr.MOS power stages for stable CPU power delivery and overclocking headroom. It includes two PCIe Gen5x4 M.2 slots plus additional Gen4 M.2 bays, advanced audio with Realtek ALC4082 and Nahimic, and broad USB connectivity (multiple USB4 Type‑C and USB 3.2 ports). Integrated Wi‑Fi 7 and Bluetooth 5.4 alongside Realtek 5GbE LAN provide fast wired and wireless networking.

Suitable for

• Streaming and live content production setups
• High‑performance gaming systems with PCIe 5.0 graphics
• Workstations requiring fast storage (M.2 NVMe) and large DDR5 memory
• Systems needing extensive USB and Type‑C connectivity for peripherals

Key specifications

• Socket: AM5, chipset: AMD X870, form factor: ATX
• CPU support: AMD Ryzen 7000 / 8000 / 9000 Series
• Memory: 4 x DDR5 DIMM, up to 256 GB, dual channel, up to 8000+ MHz (OC)
• Storage: 2 x Blazing M.2 (PCIe Gen5x4), 2 x Hyper M.2 (PCIe Gen4x4), 2 x SATA III
• Expansion: 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x16
• Networking: Wi‑Fi 7 (802.11be), Bluetooth 5.4, Realtek RTL8126 5GbE LAN
• Audio: Realtek ALC4082 7.1 CH with Nahimic

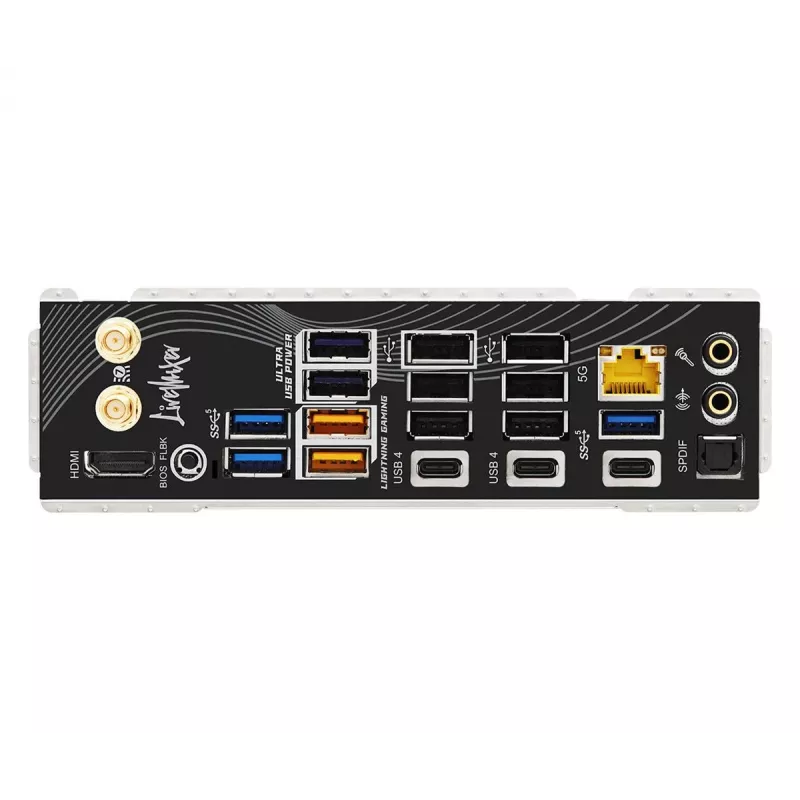

• Rear I/O: 2 x USB4 Type‑C, 1 x USB 3.2 Gen2x2 Type‑C (front support), 1 x USB 3.2 Gen1 Type‑C (rear), multiple USB 3.2 Gen1 and USB 2.0 ports, 1 x HDMI
• Other: RGB header (1), UEFI AMI BIOS, HDCP 2.3, supports tool‑less multi‑layer M.2 heatsink

How to use

Install a compatible AMD Socket AM5 processor and DDR5 memory modules into the four DIMM slots, mount M.2 or SATA drives as needed, and connect power using the 24‑pin ATX connector and CPU power headers. Use the UEFI BIOS (AMI) to configure memory XMP/OC settings, storage RAID (0/1/10 supported) and boot order. Connect network and peripherals via the rear USB and Type‑C ports or via Wi‑Fi/Bluetooth. Install Windows 10/11 64‑bit drivers provided by ASRock for full hardware support.

Recommendations

For stable performance with high core‑count Ryzen processors and overclocking, use a high‑quality ErP/EuP‑ready PSU and ensure adequate case cooling. Use NVMe drives in the PCIe Gen5 M.2 slots for maximum storage throughput and enable the M.2 heatsinks when installing high‑performance SSDs.
