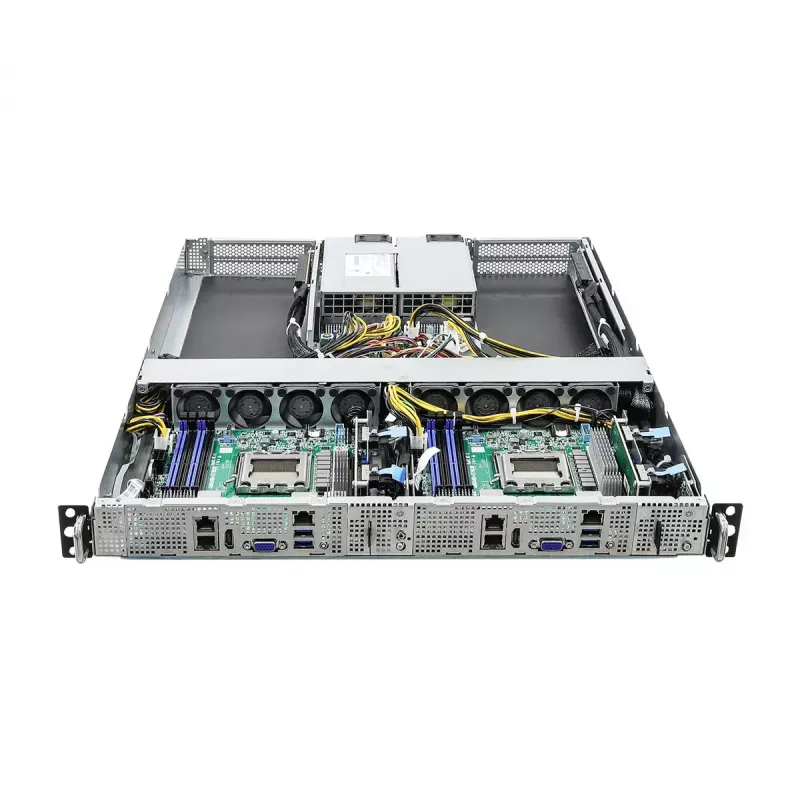

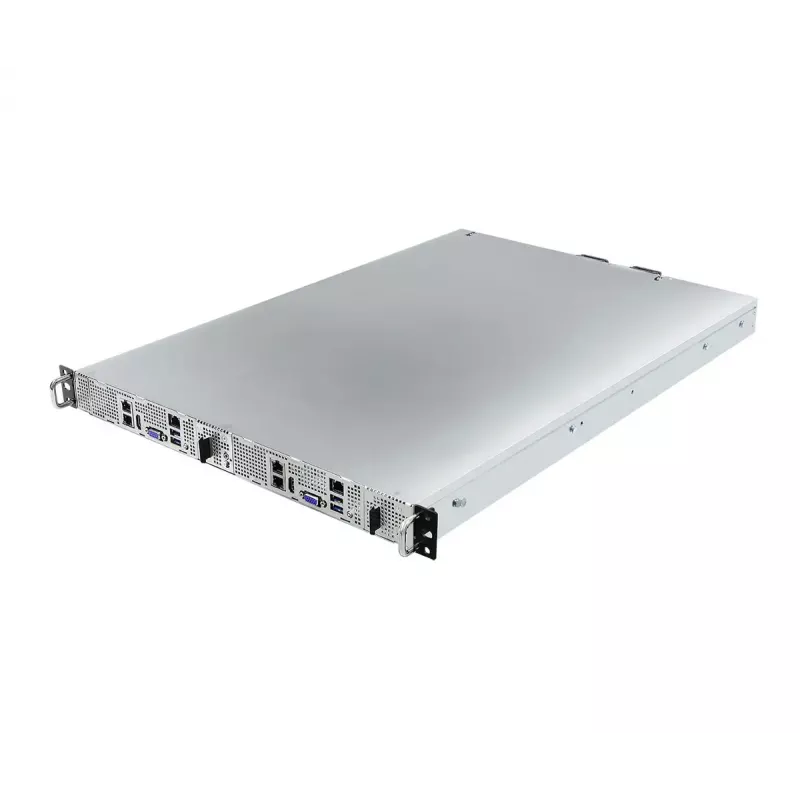

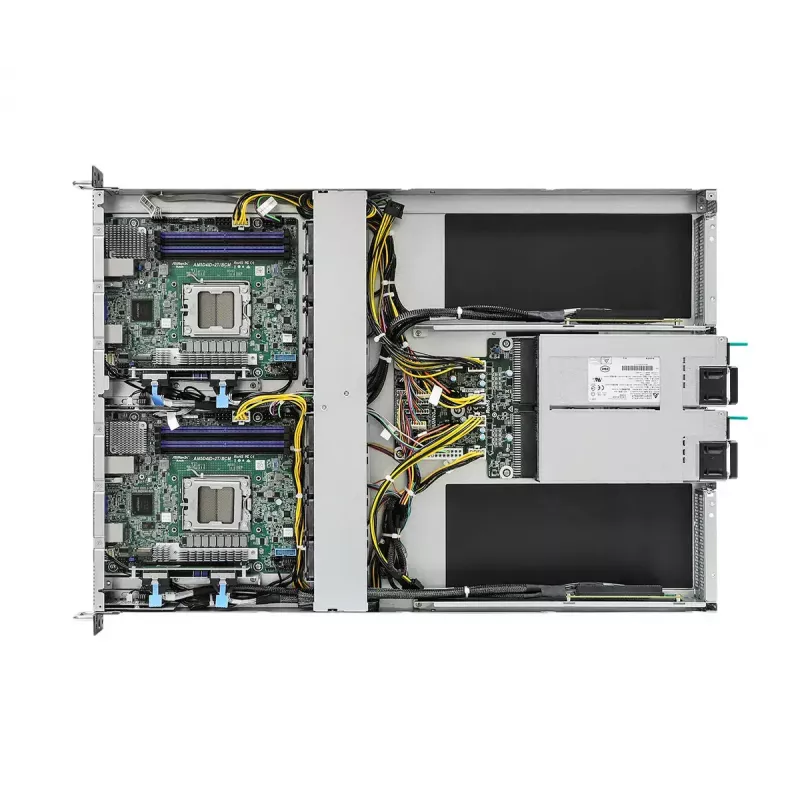

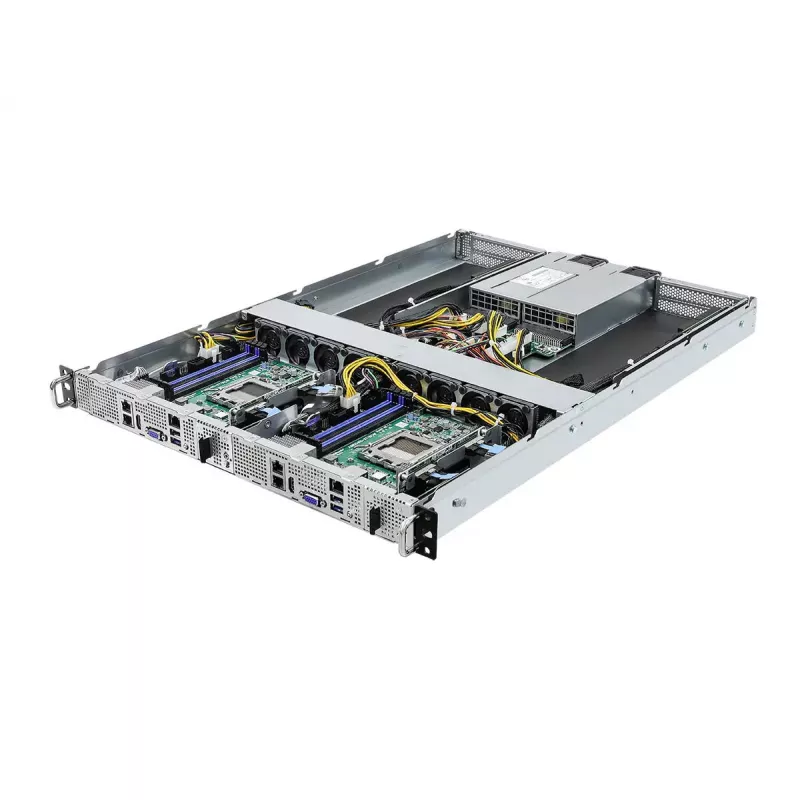

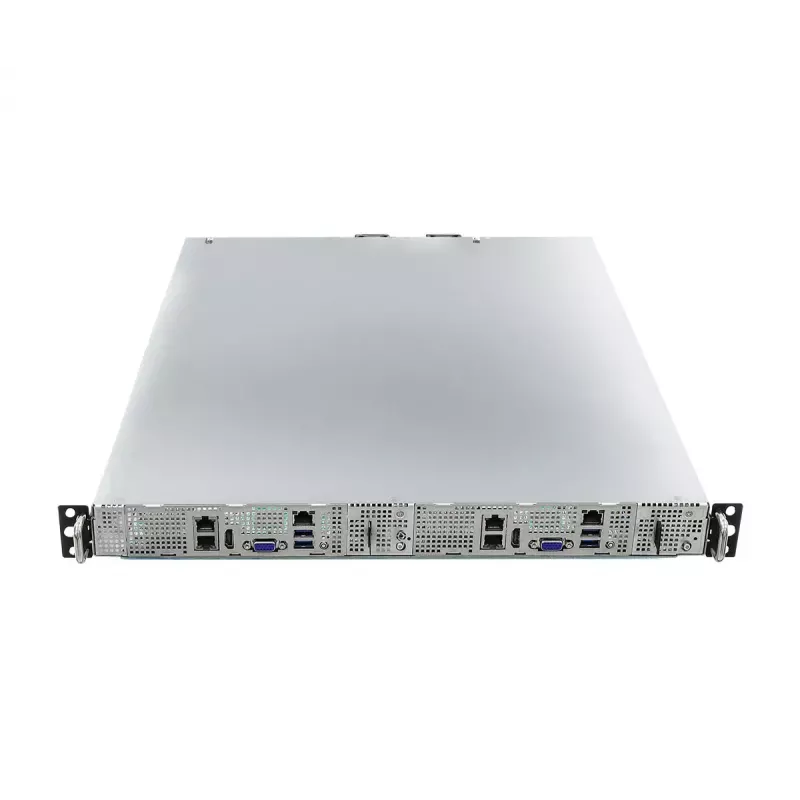

ASRock Rack 1U2N2G-AM5/2T cluster 1U de 2 nós, socket AM5

The ASRock Rack 1U2N2G-AM5/2T is a 1U rack-mount server barebone built on the AM5 platform with an LGA 1718 processor socket. It supports DDR5-SDRAM memory with a maximum capacity of 48 GB across four DIMM slots, and includes an Aspeed AST2600 integrated graphics controller.

Key features

• 1U rack chassis
• LGA 1718 processor socket
• 4 DIMM slots for DDR5-SDRAM
• Maximum RAM capacity: 48 GB
• Memory form factor: 288-pin DIMM
• Memory voltage: 1.1 V
• ECC and non-ECC memory support
• Integrated Aspeed AST2600 graphics
• 10 Gigabit Ethernet via Broadcom BCM57416 LAN controller
• IPMI LAN (RJ-45) port
• 2 USB 2.0 ports
• 2 Ethernet LAN (RJ-45) ports
• 1 HDMI port
• 1 VGA (D-Sub) port
• UEFI AMI BIOS with 256 Mbit flash memory
• ACPI version 5.1
• SMBIOS version 2.3
• Plug & Play support

Specifications

• Brand: ASRock
• MPN: 1U2N2G-AM5/2T
• Processor socket: LGA 1718
• Supported memory: DDR5-SDRAM
• Maximum RAM: 48 GB
• Memory form factor: 288-pin DIMM
• Memory voltage: 1.1 V
• Number of DIMM slots: 4
• Integrated graphics: Aspeed AST2600
• Ethernet LAN: Yes
• Ethernet interface type: 10 Gigabit Ethernet
• LAN controller: Broadcom BCM57416
• USB 2.0 ports: 2
• Ethernet LAN (RJ-45) ports: 2
• IPMI LAN (RJ-45) port: Yes
• HDMI ports: 1
• VGA (D-Sub) ports: 1
• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 5.1
• SMBIOS version: 2.3
• Plug & Play: Yes
• Chassis type: Rack (1U)
• Power supply: 1600 W
• Operating temperature: 10 - 35 °C
• Storage temperature range: -40 - 70 °C
• Operating relative humidity: 20 - 90%
• Width: 438 mm
• Depth: 650 mm
• Height: 43.5 mm
