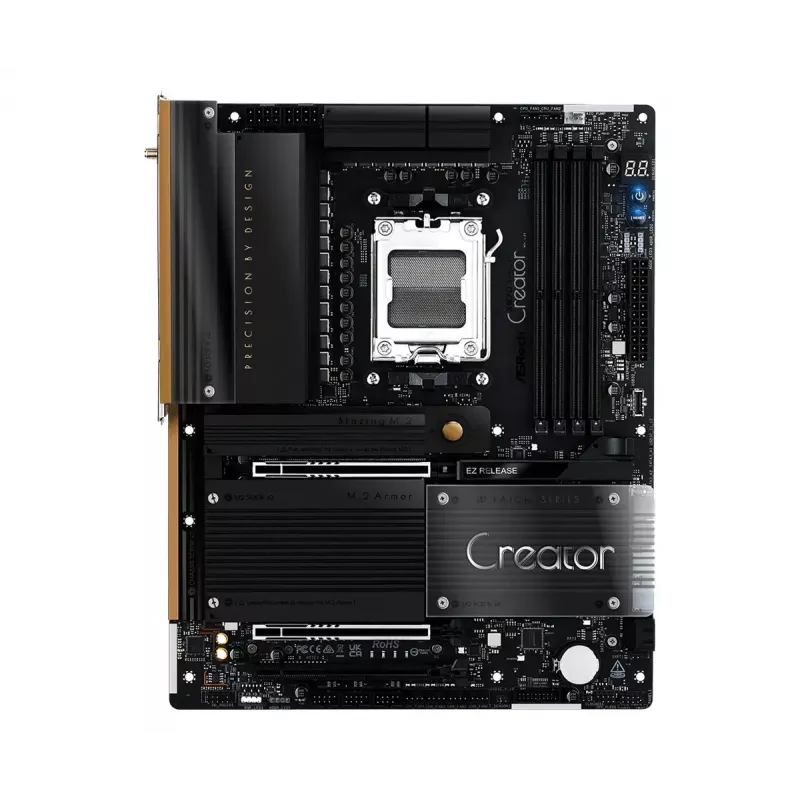

Placa-mãe ASRock X870 Taichi Creator ATX — AMD X870, Socket AM5, DDR5, 4 DIMM, 256 GB, Ethernet 10Gb, Wi-Fi 7

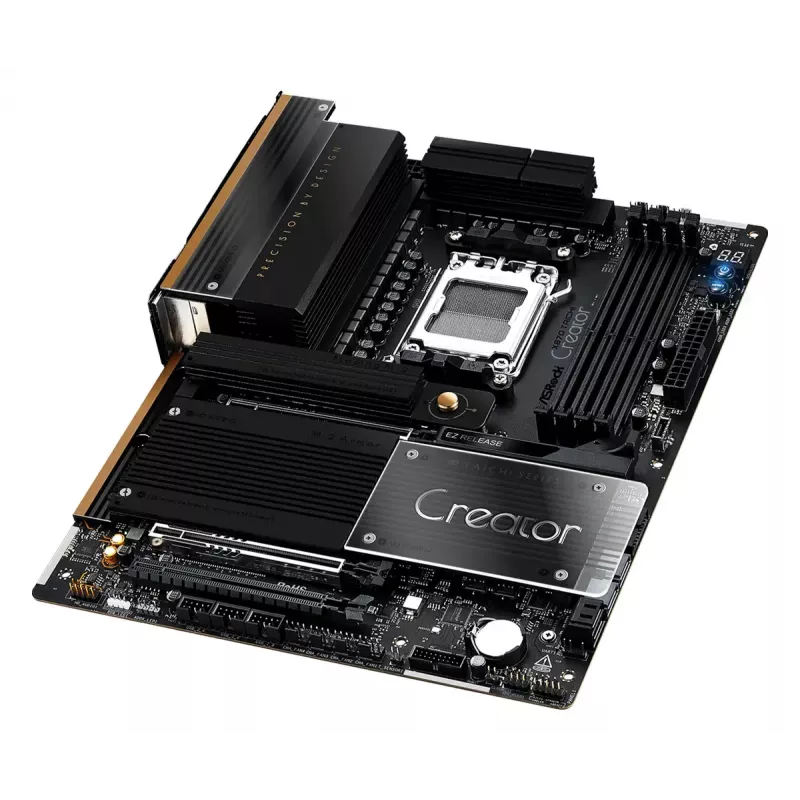

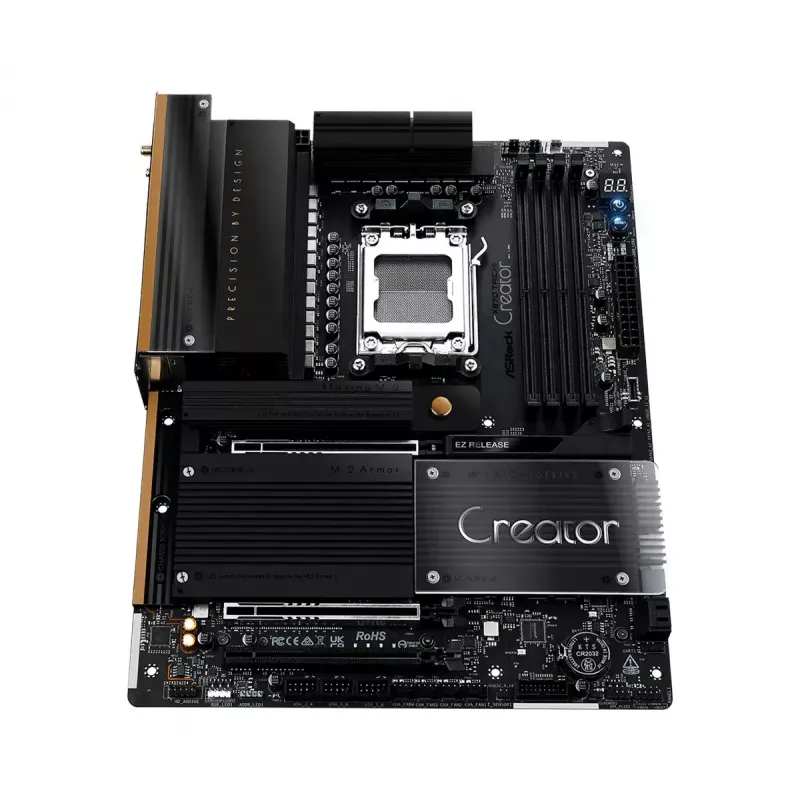

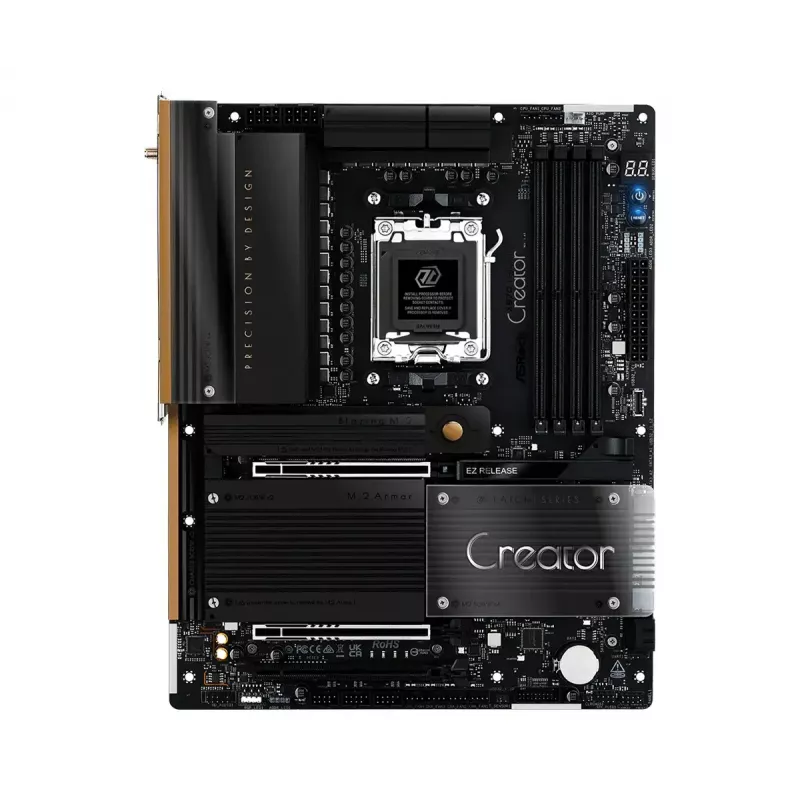

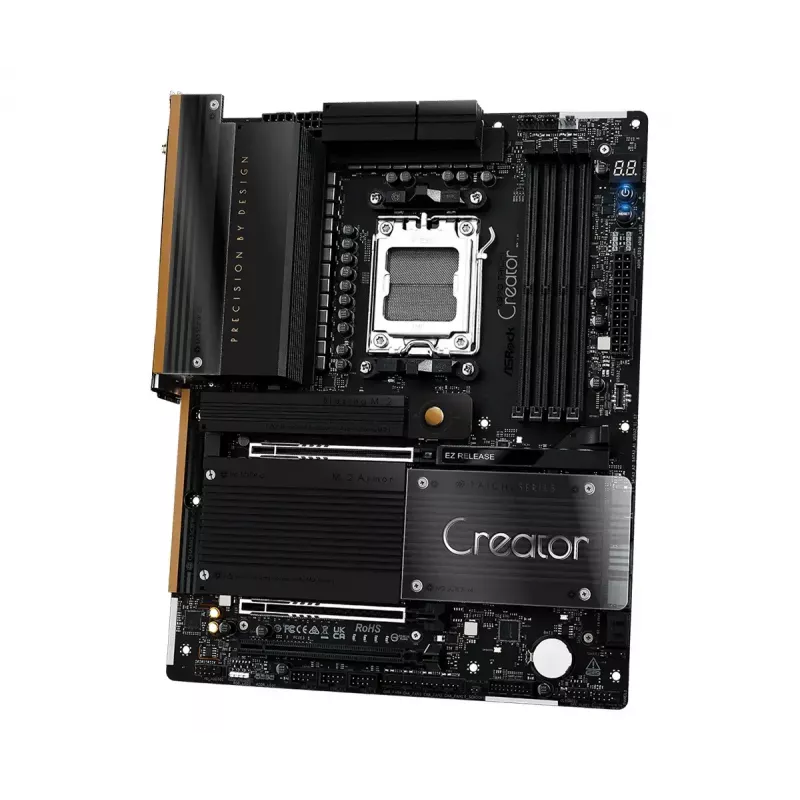

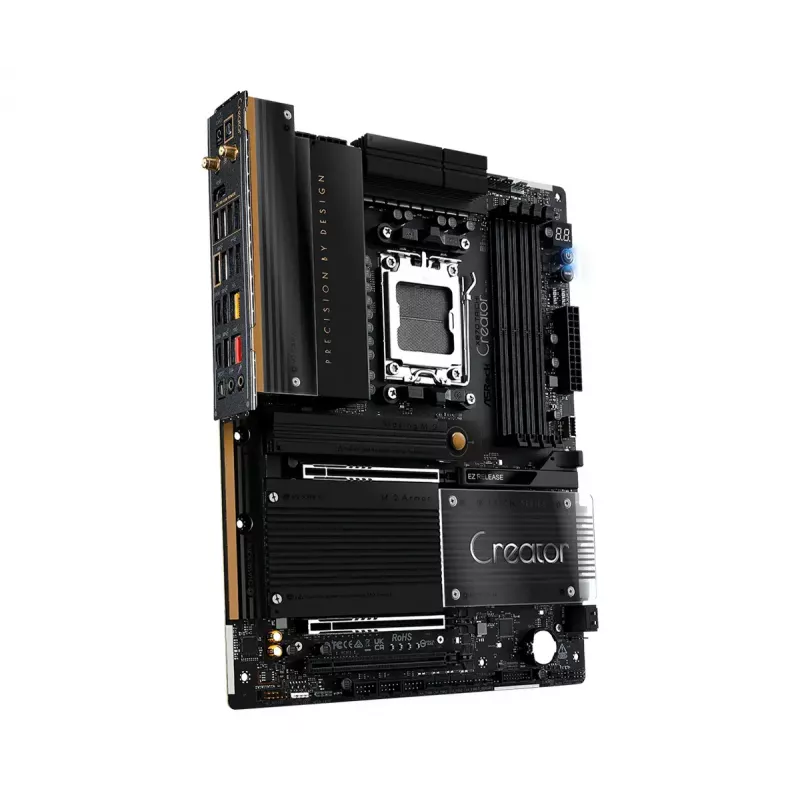

ASRock X870 Taichi Creator ATX is a desktop motherboard designed for AMD Socket AM5 processors. Based on the AMD X870 chipset, it supports DDR5 memory across four DIMM slots for up to 256 GB, multiple M.2 and SATA III storage options with RAID 0/1/10 capability, one PCIe x16 expansion slot and high‑speed connectivity including 10 Gb Ethernet and Wi‑Fi 7. The board integrates an 8‑layer PCB, XXL aluminum heatsinks for VRM, PCH and M.2 areas, USB4 Type‑C ports with up to 40 Gbps throughput, front-panel USB 3.2 Gen2x2 Type‑C header and fast‑charging via USB Power Delivery 3.0 to support demanding workstation and content‑creation workflows.

Advantages

The ASRock X870 Taichi Creator provides stable power delivery and advanced thermal management to maintain performance under sustained loads. Native support for DDR5 with XMP/EXPO profiles offers straightforward memory overclocking and compatibility with high‑frequency kits. Integrated dual multi‑gigabit Ethernet (10GbE and 5GbE), Wi‑Fi 7 and USB4 deliver versatile network and peripheral bandwidth suited to large file transfers, external high‑speed storage and multi‑monitor setups. Multiple M.2 slots and PCIe 5.0 readiness enable use of next‑generation NVMe SSDs and dual‑GPU configurations for heavy compute tasks.

Suitable for

• High‑performance workstations for 3D rendering and simulation
• Content‑creation PCs handling video editing, color grading and large RAW libraries
• Professional audio/video production with low‑latency networking and fast external storage
• Enthusiast builds requiring DDR5 memory overclocking and PCIe 5.0 storage
• Small studio servers or NAS frontends needing multi‑gigabit LAN

Key specifications

• Form factor: ATX
• Chipset: AMD X870
• Processor socket: Socket AM5 (supports Ryzen 7000/8000/9000 series)
• Memory: 4 x DDR5 DIMM slots, dual‑channel, up to 256 GB
• Expansion slots: PCIe x16 (Gen5 and Gen3 topology for multiple slots)
• M.2/SATA: Multiple M.2 slots including PCIe Gen5x4 and Gen4x4 support, plus SATA III ports with RAID 0/1/10 support

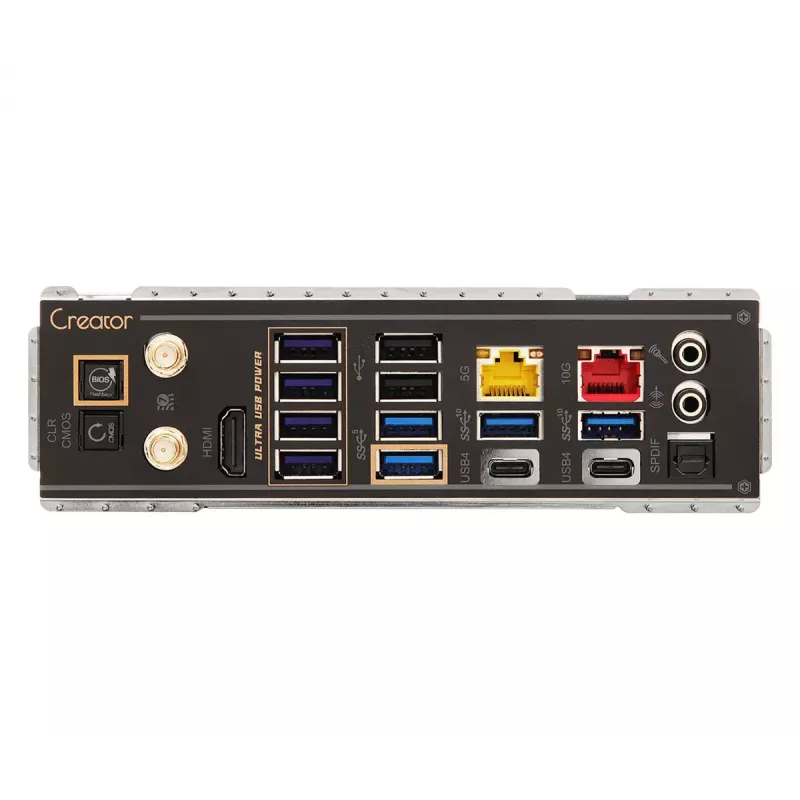

• Rear I/O: USB4 Type‑C ports, USB 3.2 Gen2/Gen1 ports, USB 2.0 ports, HDMI output
• Front header: USB 3.2 Gen2x2 Type‑C front panel header
• Audio: 7.1‑channel HD audio codec
• Networking: 10 GbE and 5 GbE wired LAN, Wi‑Fi 7 (802.11be) and Bluetooth
• Thermals: XXL aluminum heatsinks covering VRM, PCH and M.2 areas; 8‑layer PCB
• Charging: USB Power Delivery support on front fast‑charging port

How to use

Install the motherboard into an ATX‑compatible chassis following standard ESD precautions and the manufacturer’s installation guides. Mount the AM5 CPU and apply approved cooling, populate up to four DDR5 memory modules in the recommended slots for dual‑channel operation, and connect required power connectors from a compatible PSU. Fit M.2 SSDs and SATA drives as needed, configure RAID in the firmware if desired, and attach GPUs or expansion cards to the PCIe slots. Configure networking, USB4 and fast‑charging options in BIOS/firmware settings and install updated drivers from the manufacturer for full functionality.

Recommendations

Use high‑quality DDR5 kits with XMP or EXPO profiles to enable stable overclocking; ensure chassis airflow is sufficient to leverage the XXL heatsinks; update the EFI BIOS and drivers before heavy workloads; use Cat6A cabling for optimal 10GbE performance and compatible USB4/Thunderbolt devices for full external bandwidth.
