Cabo ótico ativo HDMI 2.1 EQUIP 10 m — Type-D (Micro) + Type-A removível, 48 Gbit/s, 8K/60 Hz

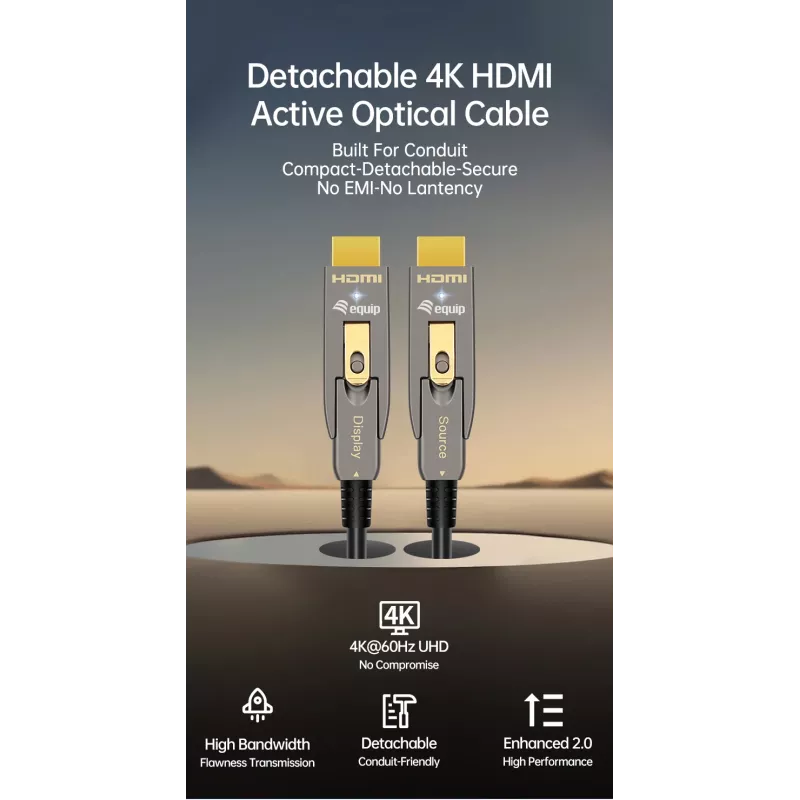

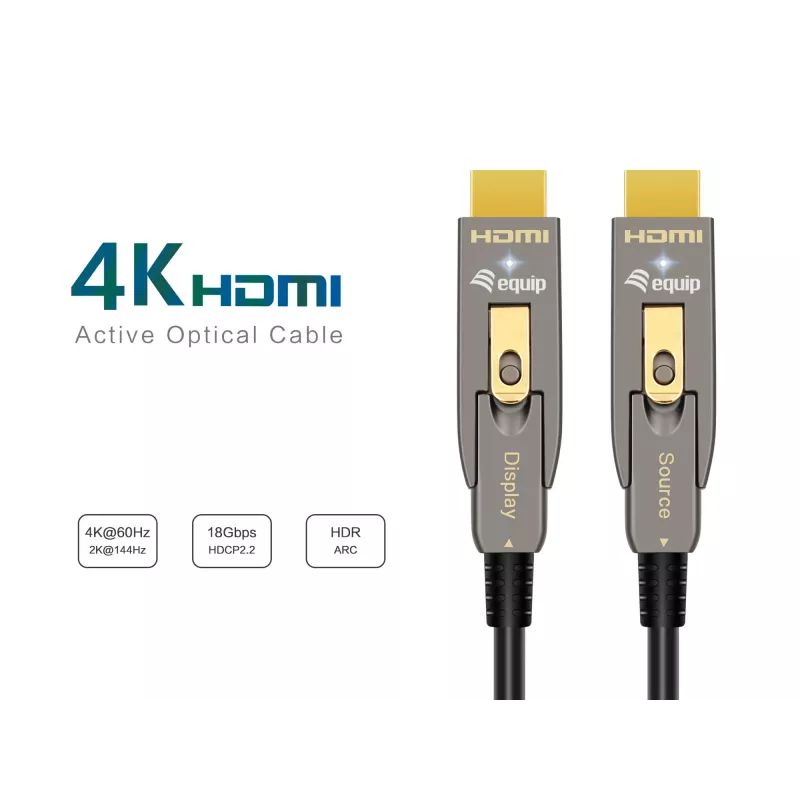

The Equip HDMI 2.0 Detachable Type D + A Active Optical Cable provides high-definition connectivity using active optical technology to maintain stable signal transmission over long distances. The detachable design includes HDMI Type D (Micro HDMI) and Type A (Standard HDMI) connectors, enabling connection to cameras, laptops, projectors, monitors and televisions. The fiber-optic construction reduces electromagnetic interference while the compact, lightweight build simplifies installation in confined spaces or larger venues. The cable supports HDMI 2.0 and is compatible with HDMI 2.1 features, offering up to 4K@60Hz with HDR and, where supported by devices, resolutions up to 8K@60Hz and 4K@120Hz.

Advantages

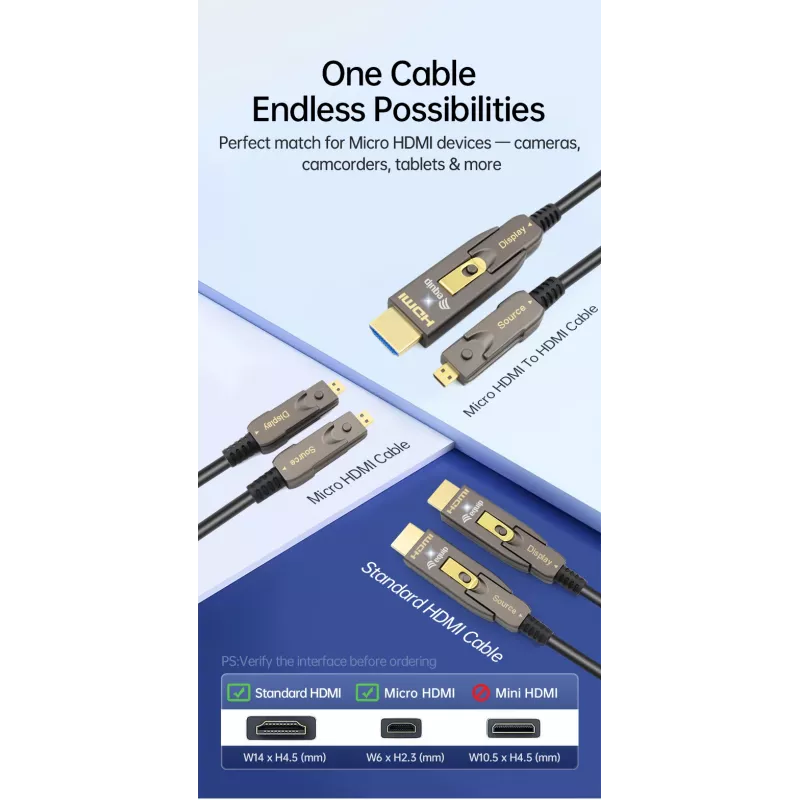

The detachable Type D and Type A connectors let the same Equip HDMI 2.0 cable be used with devices that require Micro HDMI or Standard HDMI, reducing the need to carry multiple cables. Active Optical Cable (AOC) design preserves signal integrity over long runs and resists electromagnetic interference. Gold-plated connectors and a zinc alloy housing provide reliable electrical contact and mechanical durability. The cable supports advanced HDMI capabilities including HDR formats, high bandwidth (up to 48 Gbps), eARC, VRR and low-latency modes to enable consistent audiovisual performance.

Key specifications

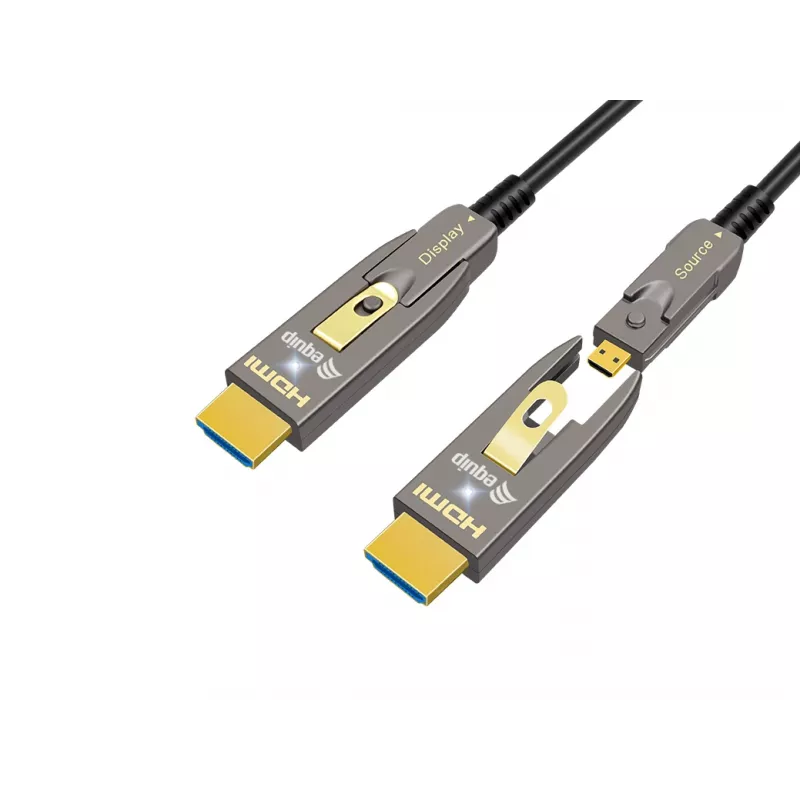

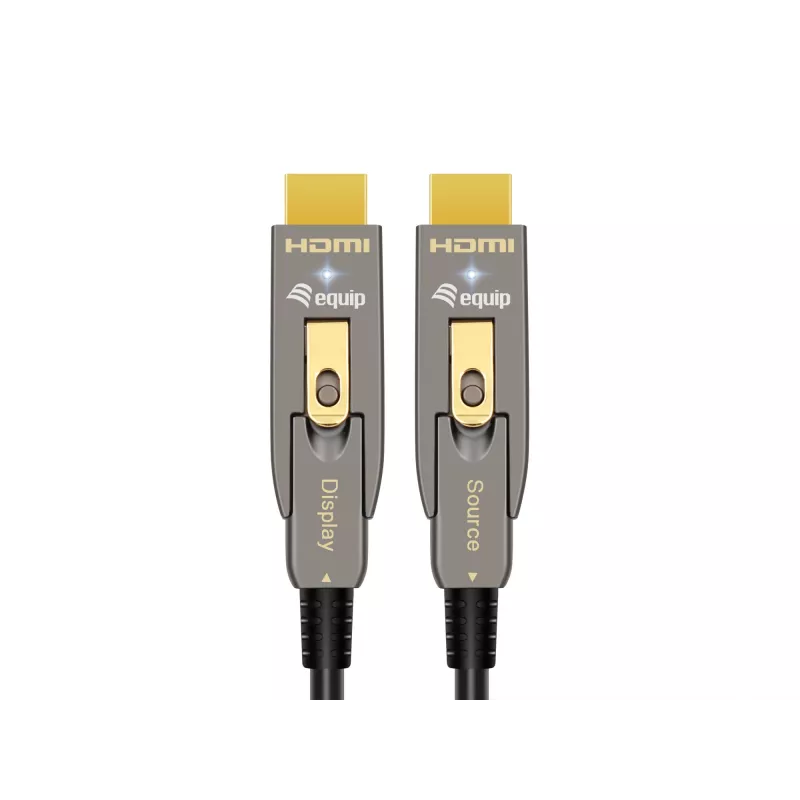

• Connector: HDMI Type-A (Standard) and HDMI Type-D (Micro) straight male (detachable)
• Length: 10 m
• Cable type: Active Optical Cable (AOC), single-direction (source to display)
• HDMI version: 2.0 / compatible with HDMI 2.1 features
• Supported resolutions: up to 8K@60Hz, 4K@120Hz, and up to 4K@60Hz with HDR (device-dependent)
• Bandwidth: up to 48 Gbps
• HDR: Dynamic HDR, HDR10, HLG
• Copy protection: HDCP 2.3, HDCP 1.4
• Audio/sample rate: up to 1536 kHz
• Features: eARC, ARC, HDMI Ethernet Channel (HEC), CEC, 3D, EDID, VRR, QMS, QFT, ALLM, DSC

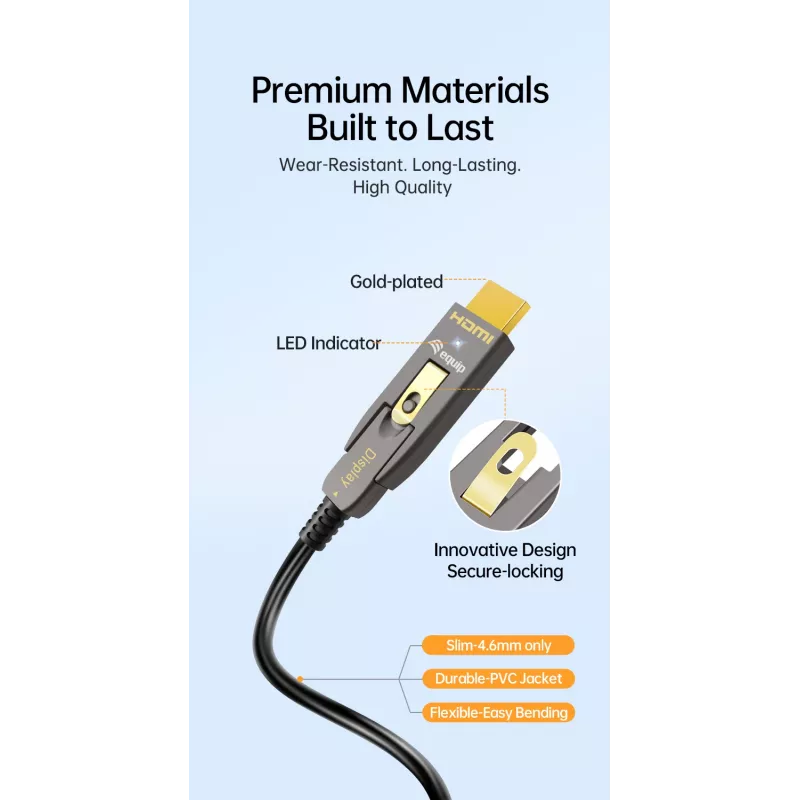

• Housing: zinc alloy
• Connectors: gold-plated
• Color: black

How to use

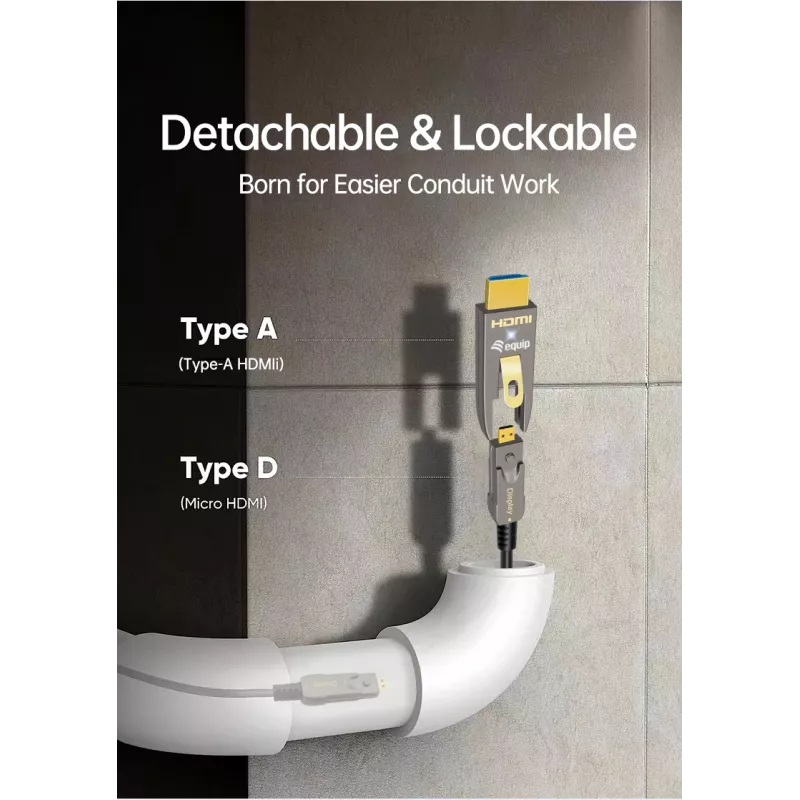

Check the cable direction before installation: this AOC is single-way and transmits signal from the source (player, laptop, camera) to the display (monitor, TV, projector) only. Attach the appropriate connector end for your device: use the Type D (Micro HDMI) connector for compatible cameras or small devices and the Type A (Standard HDMI) connector for TVs, monitors and most AV equipment. Confirm that both source and display support the desired resolution and HDMI features, then configure device display settings as needed. Route the lightweight cable to avoid sharp bends and secure connectors to prevent strain on device ports.

Recommendations

Use this cable when long-distance, low-interference HDMI connections are required; verify device compatibility and the cable's signal direction prior to use. For bidirectional connections or source-to-source links, select a suitable alternative or adapter.
