Cabo ótico ativo HDMI 2.1 EQUIP 30 m, tipo D + A removível, 48 Gbit/s, 8K/60 Hz, contactos dourados

The Equip HDMI 2.0 Detachable Type D + A Active Optical Cable provides high-definition connectivity with active optical transmission for stable signals over long distances. It supports HDMI 2.0 standards and enables resolutions up to 4K at 60Hz with HDR. The detachable connector design includes both Micro HDMI (Type D) and Standard HDMI (Type A) interfaces, improving compatibility with cameras, laptops, projectors, monitors and televisions. Lightweight fiber-optic construction reduces electromagnetic interference and facilitates installation in confined spaces or large venues.

Advantages

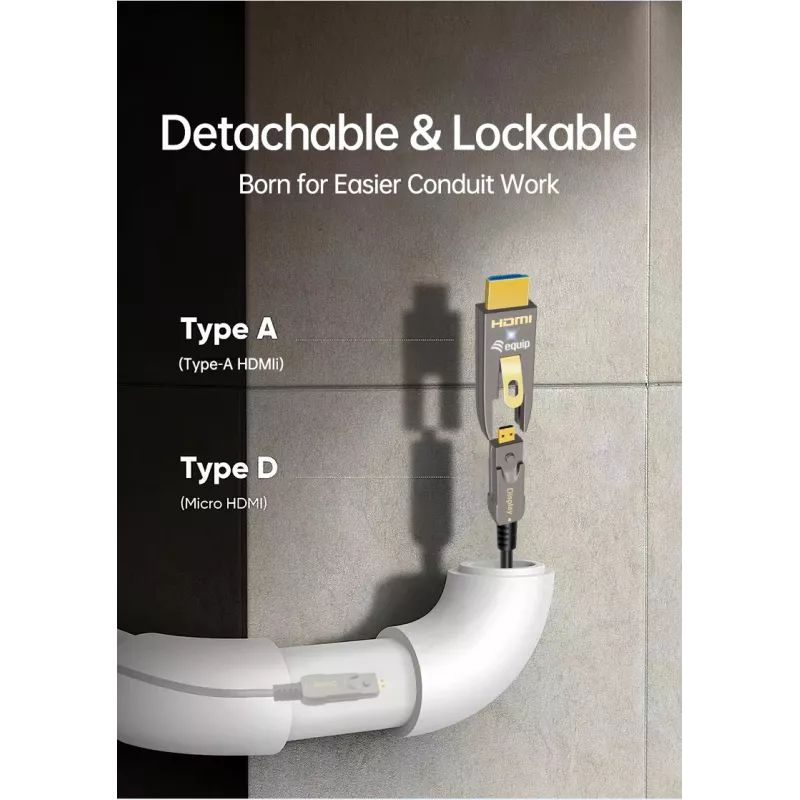

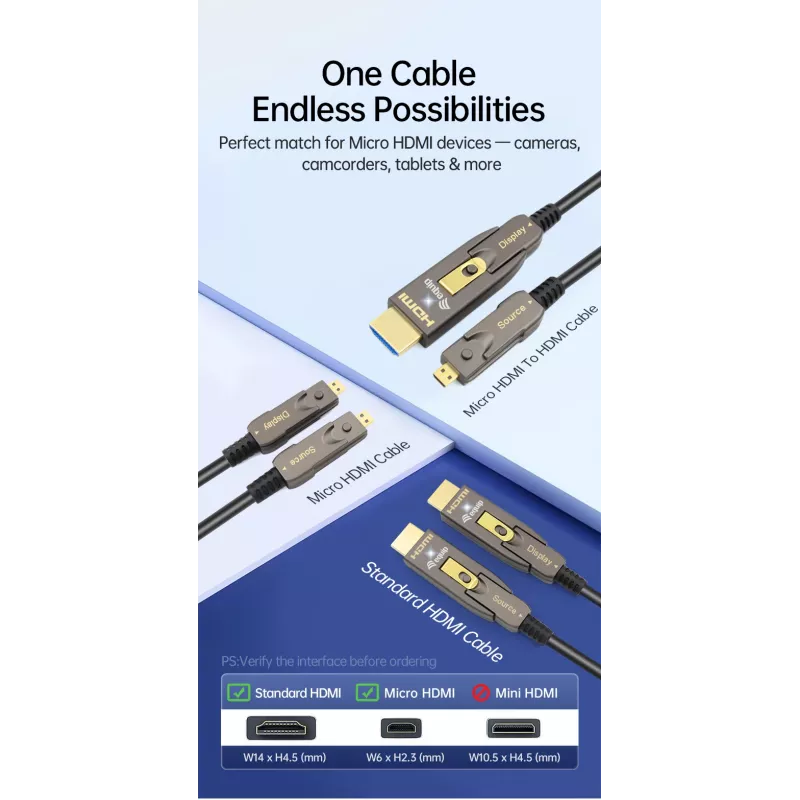

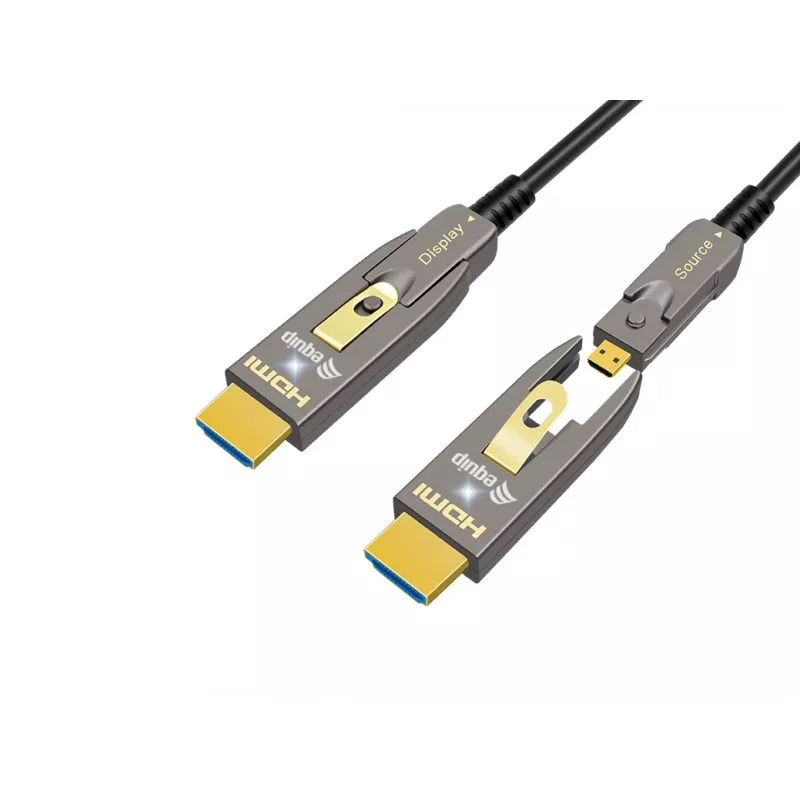

The detachable Type D (Micro) and Type A connectors allow use with a wider range of source and display devices without needing multiple cables. Active optical construction ensures stable high-bandwidth transmission and resistance to EMI. Gold-plated connectors and zinc-alloy housings provide reliable electrical contact and mechanical durability. The cable is single-directional (source-to-display) and comes in a 30 m length for long-reach installations.

Key specifications

• Connector type: HDMI Type-A (Standard) / HDMI Type-D (Micro), straight male
• Cable type: Active Optical Cable (AOC), single-direction (source to display)
• HDMI version: 2.1 (backward compatible with HDMI 2.0 features)
• Supported video resolutions: up to 8K@60Hz, 4K@120Hz; supports 4K@60Hz with HDR
• Bandwidth: up to 48 Gbps
• HDR support: HDR10, HLG, Dynamic HDR (HDR Dynamic Metadata)
• Audio: up to 1536 kHz sampling rate; supports ARC and eARC, 3D audio formats
• Additional features: VRR, QMS, QFT, ALLM, DSC, EDID, CEC, HEC

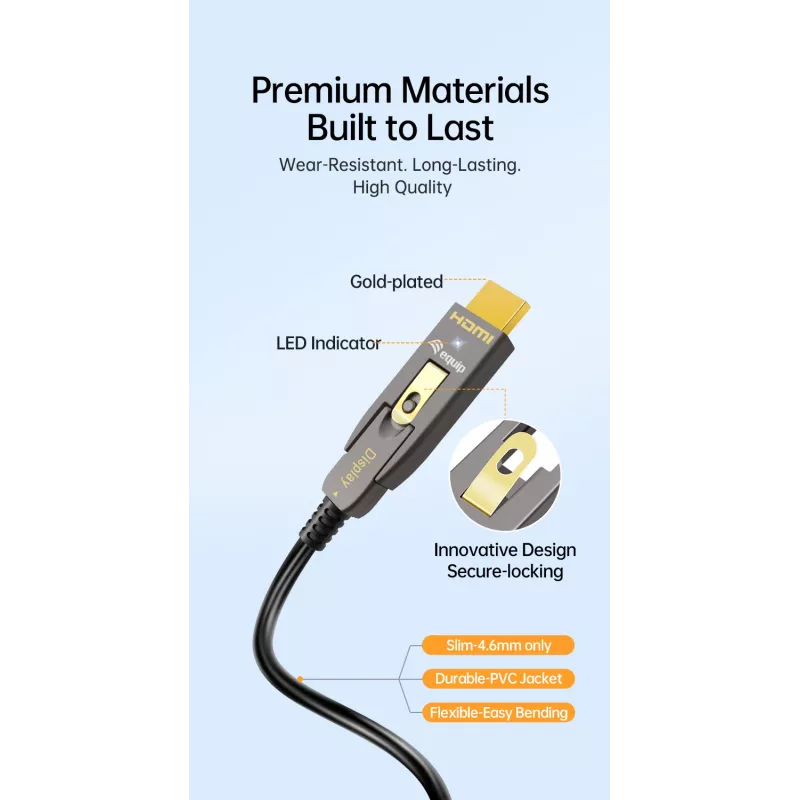

• Housing: zinc alloy
• Connectors: gold-plated
• Length: 30 m
• Color: black

How to use

Verify the cable orientation and connect the marked source end to the video source (player, laptop, camera) and the display end to the monitor, projector or TV. Attach either the Type-D (Micro HDMI) or Type-A connector according to the device; the detachable design permits switching between interfaces. After secure connections, power on both source and display devices. Configure display and source menus to select the desired resolution and HDR settings and ensure compatible HDMI modes (for example, 4K@60Hz or 8K@60Hz) are enabled.

Recommendations

Always check cable direction before installation because the AOC is single-way transmitting. Use the cable within its specified length and avoid sharp bends to preserve optical performance. For high resolutions and advanced features (8K, eARC, VRR), confirm both source and display support the required HDMI version and settings.
